Volumetric Expansion after 72 Hrs
Fuel
Observed Expansion
Petrol
Maximum 20%
Diesel
No Expansion
Kerosene
No Expansion
Transmission Oil
No Expansion
Tube Dimensions
Code
Size (mm)
Working Pressure
Temp.
Range
NB0307
03 x 07
8
-10° to 90°C
NB0509
05 x 09
8
-10° to 90°C
NB0610
06 x 10
8
-10° to 90°C
NB0812
08 x 12
8
-10° to 90°C
NB1015
10 x 15
8
-10° to 90°C
NB1217
12 x 17
8
-10° to 90°C
*Pressure Rating unit = Bar

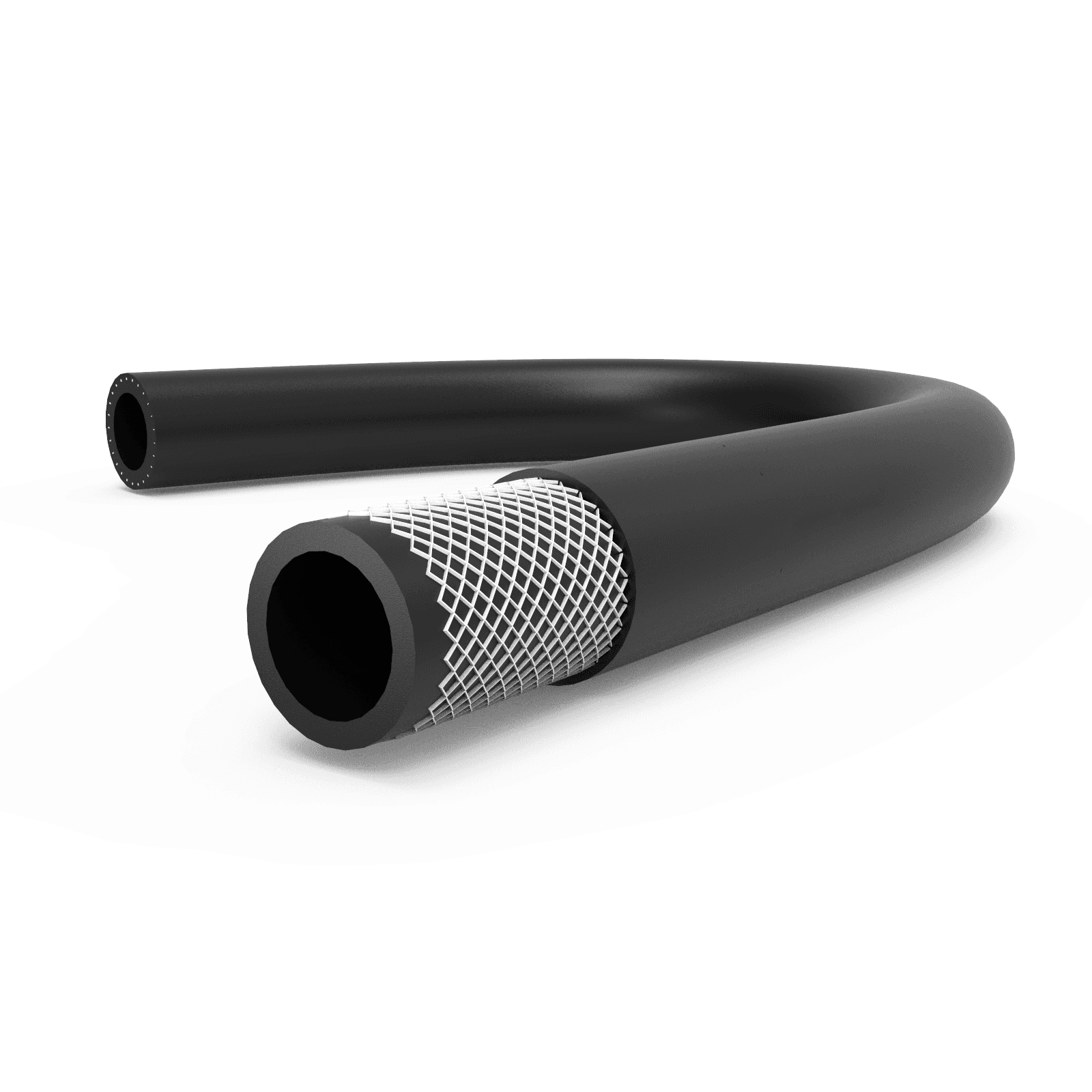

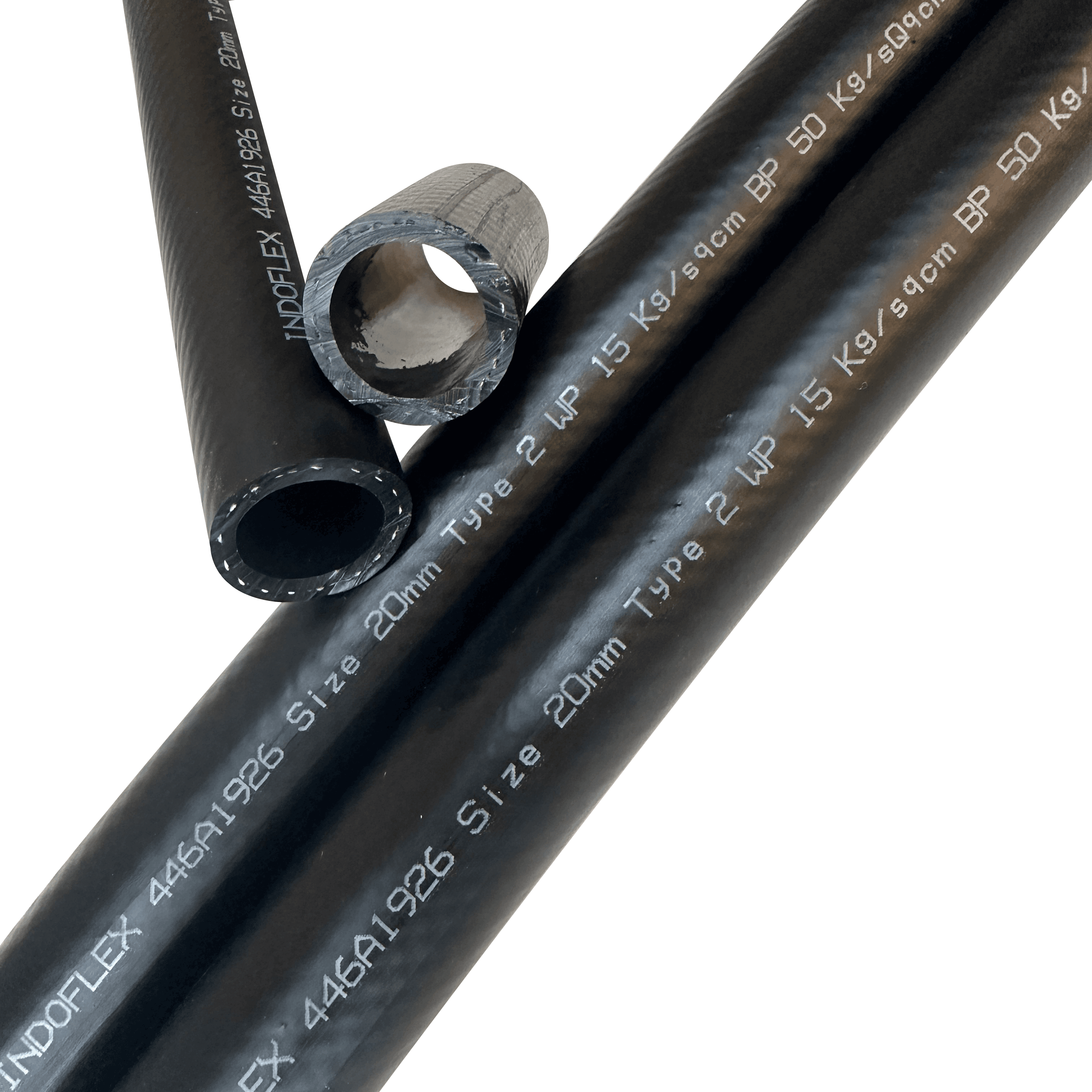

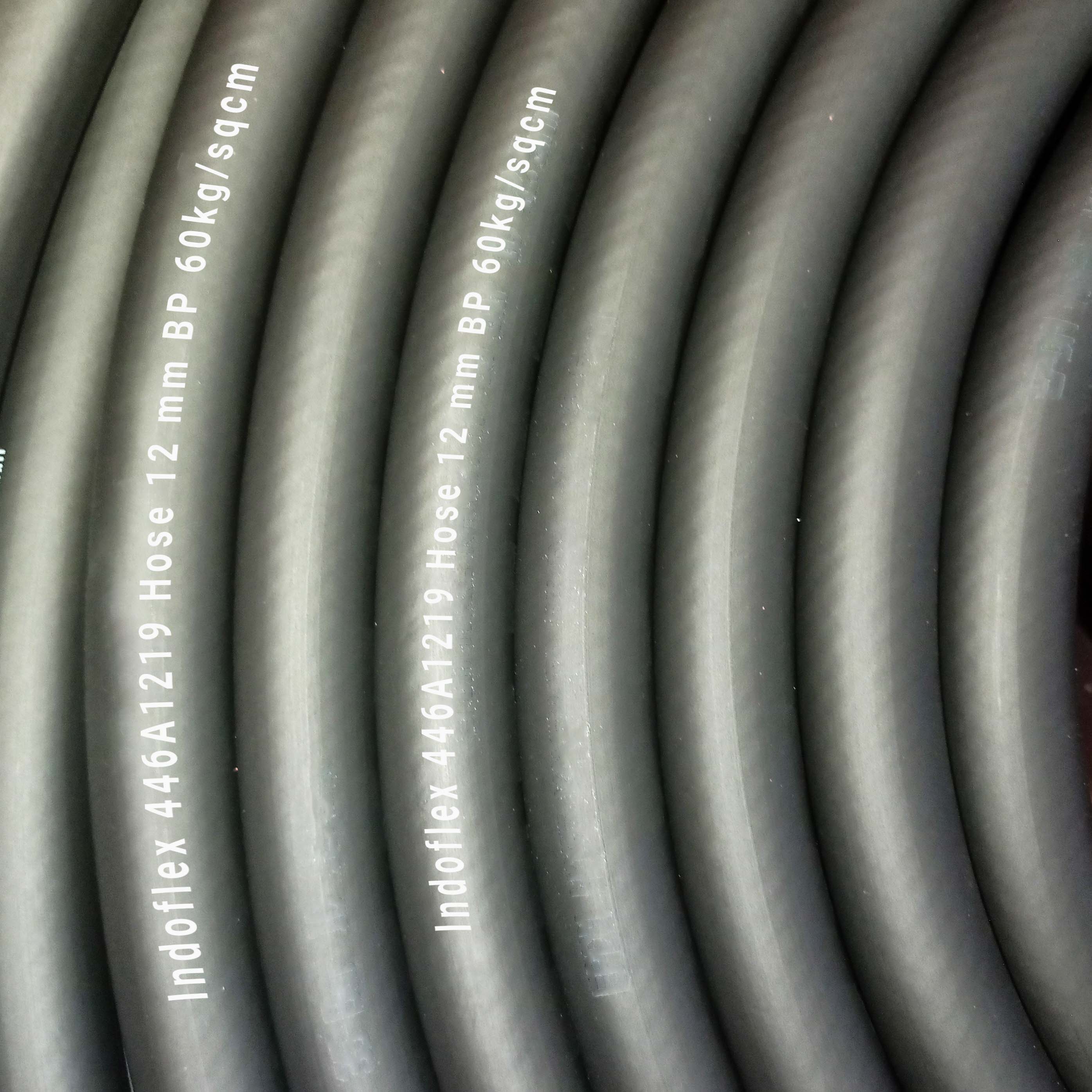

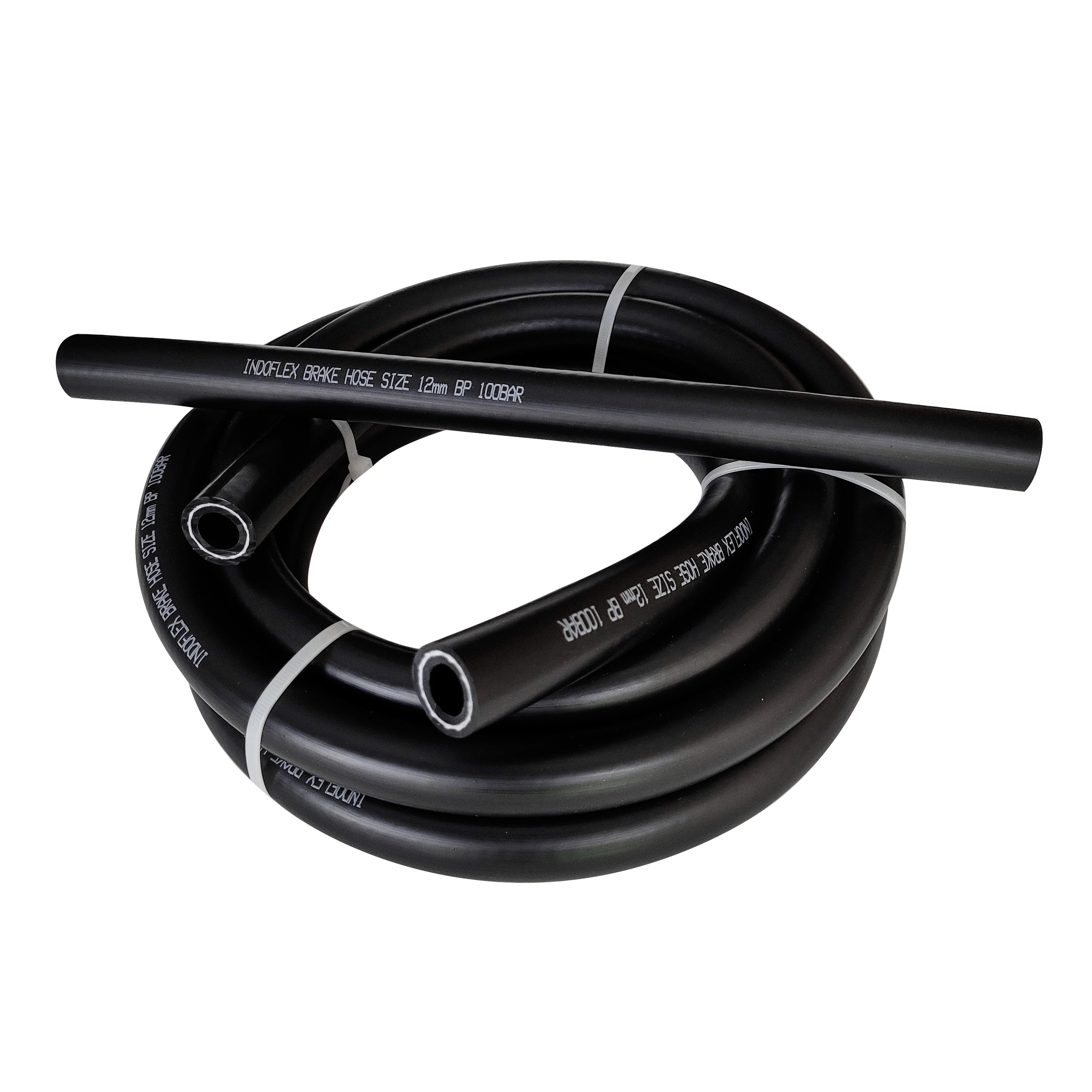

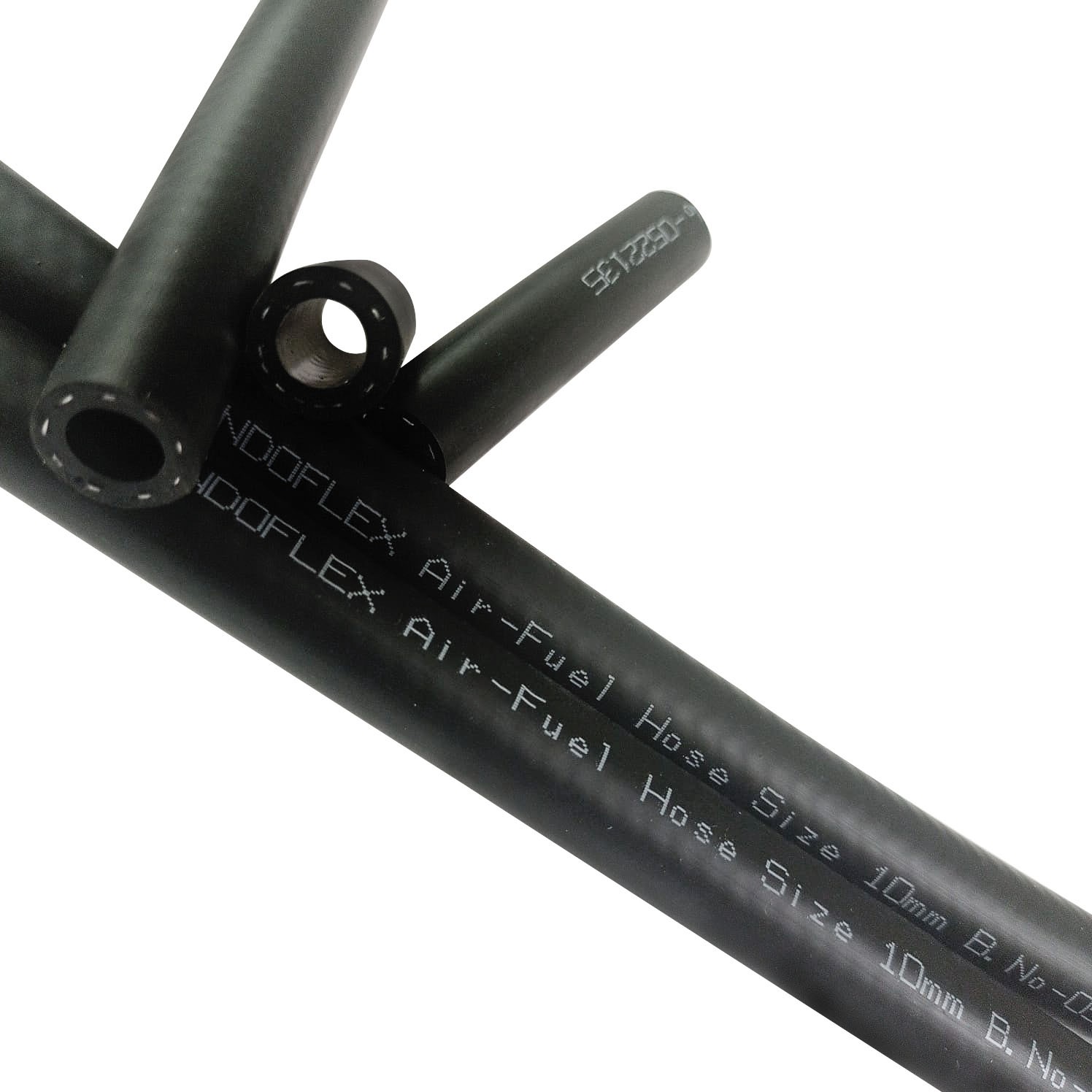

Hoses made from thermoplastic rubbers with rubber part of NBR and thermoplastic part of soft PVC reinforced with polyester Yarn. Exhibiting lowest swelling in fuel applications and good dimensional stability even at high temperature of 90°C, these multipurpose hoses are suitable for automotive uses such as
Coolant flow
Fuel flow
Air flow in brake system
Thermoplastic Rubber Hose
Code
Size (mm)
Working Pressure
Bursting Pressure
446A0409
4 x 9
15
50
446A0611
6 x 11
10
40
446A0813
8 x 13
10
40
446A0814
8 x 14
10
40
446A1015
10 x 15
10
40
446A1219
12 x 19
20
80
446A1521
15 x 21
15
60
446A1926P
19.5 x 26
15
60
*Pressure Rating unit = Bar
Wayhose Automotive Tubes follow
SAE: J844 | ISO: 7628 | DIN: 74324

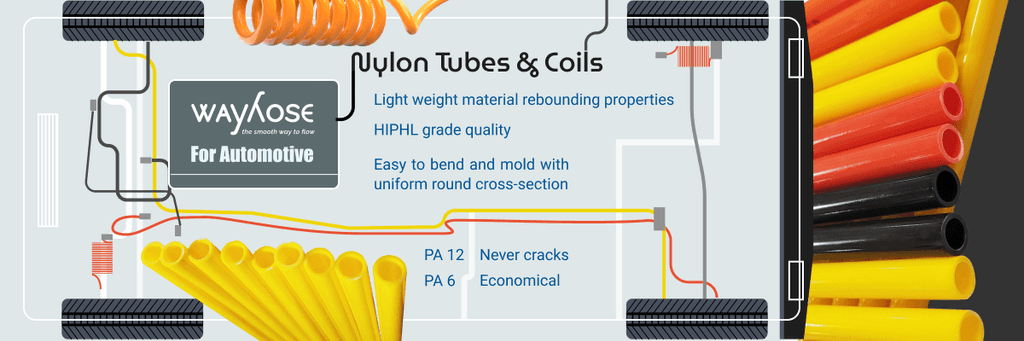

Polyamide nylon tubes are light weight and have excellent strength. Polyamide tubes made by Wayhose are used for
Air Brake systems
Fuel Line connections
Coiled tubing
Our preferred material for making these tubes is Polyamide-12 or PA-12 which shows excellent flexibility, fatigue resistance and high-pressure resistance. It is an HIPHL grade material which translates to high viscosity impact modified plasticized heat and light stabilized material.
For the economic range of tubes, we use impact improved, non-brittle Nylon PA-6.
Nylon Tubes
Code
Size (mm)
Wall
Thickness
Working Pressure
12PA0402
4 x 2
0.90
45
12PA0604
6 x 4
0.90
27
12PA0806
8 x 6
0.90
19
12PA1006
10 x 8
0.9
19
12PA1108
11 x 8
1.35
21
12PA1209
12 x 9
1.35
19
12PA1410
14 x 10
1.80
22
12PA1512
15 x 12
1.35
15
12PA1612
16 x 12
1.80
19
12PA1814
18 x 14
1.80
17
*Pressure Rating unit = Bar
Nylon Coils
Code
Size (mm)
Working Pressure
Bursting Pressure
CLPA0604
6 x 4
15
60
CLPA0806
8 x 6
15
60
CLPA1008
10 x 8
15
60
CLPA1209
12 x 9
15
60
*Pressure Rating unit = Bar
<
>

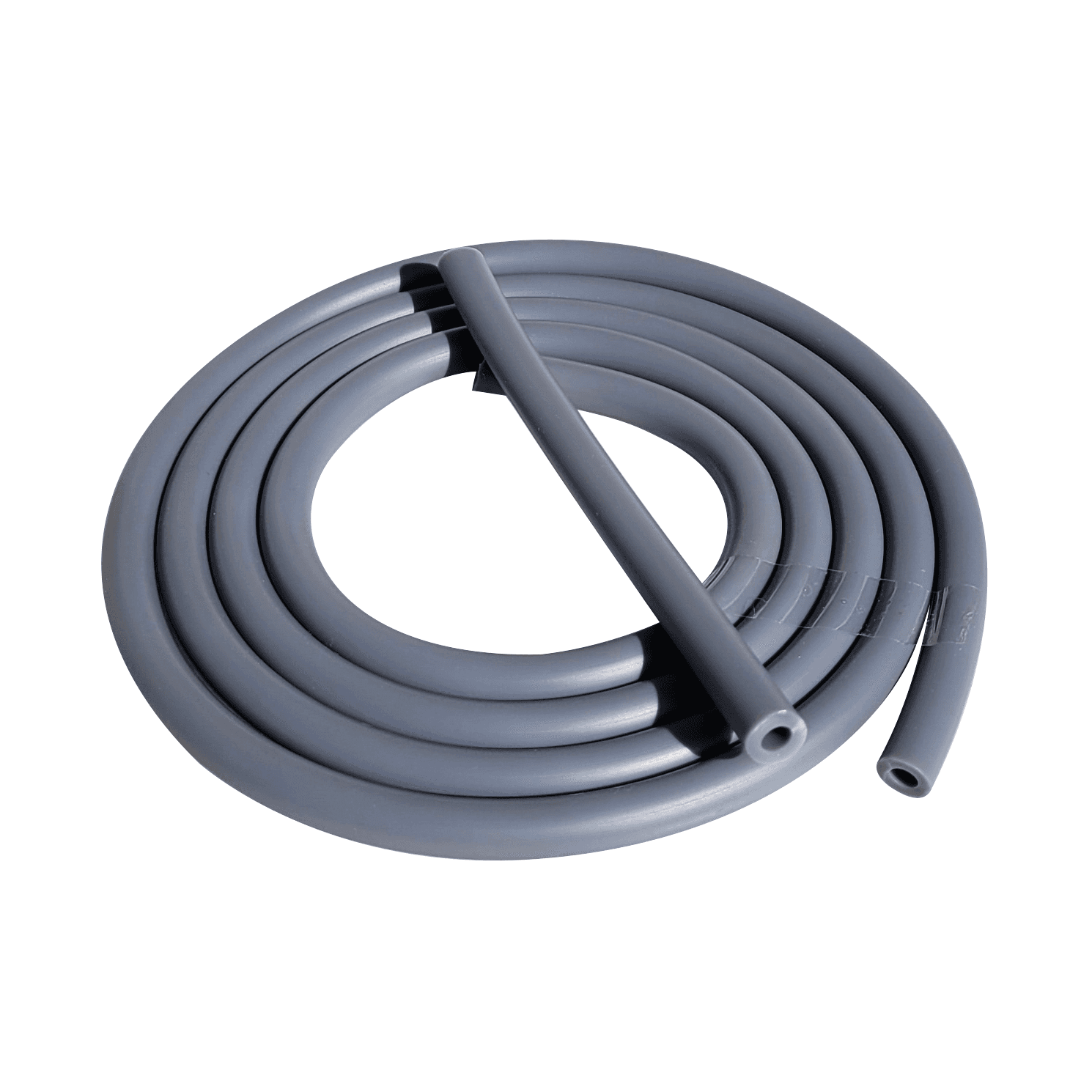

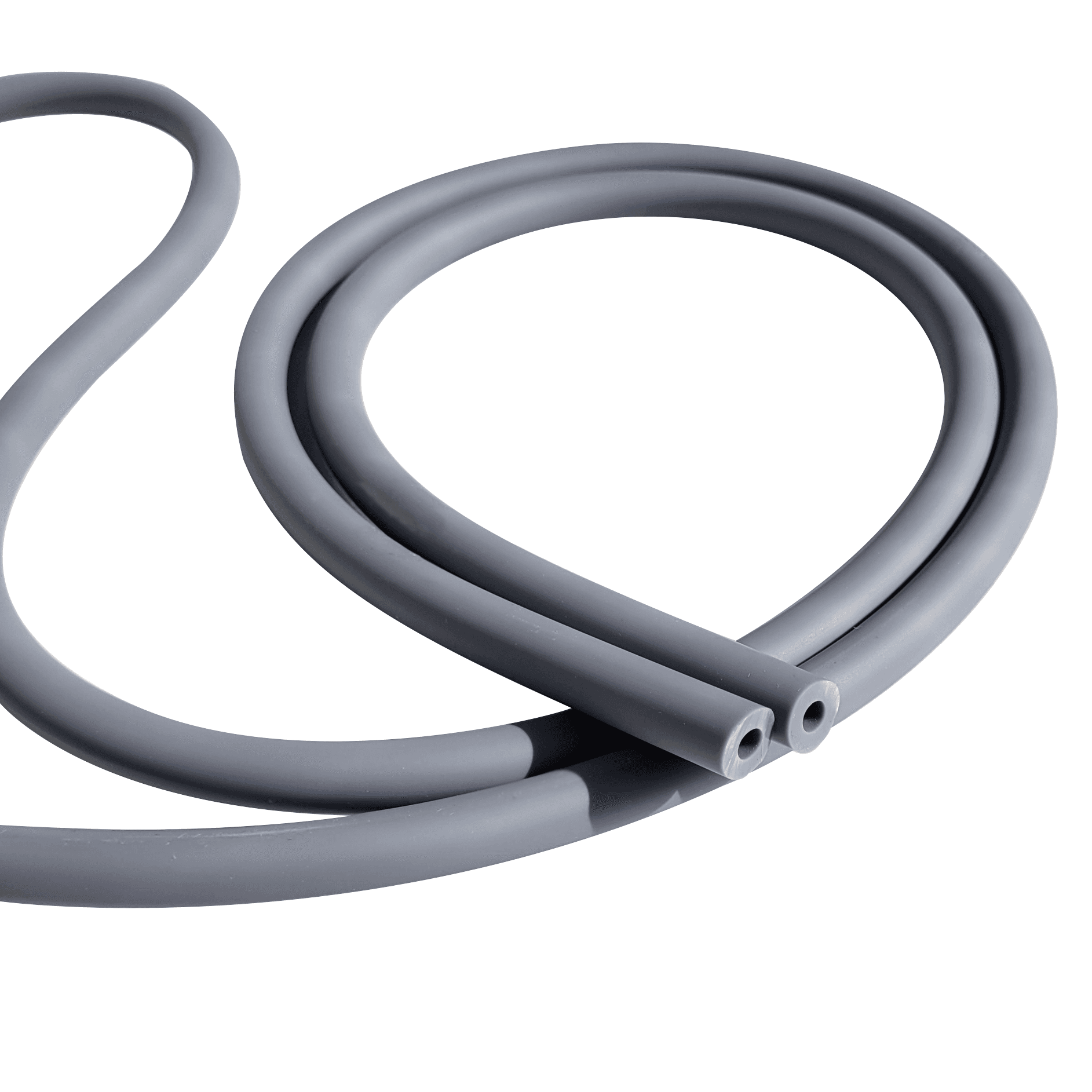

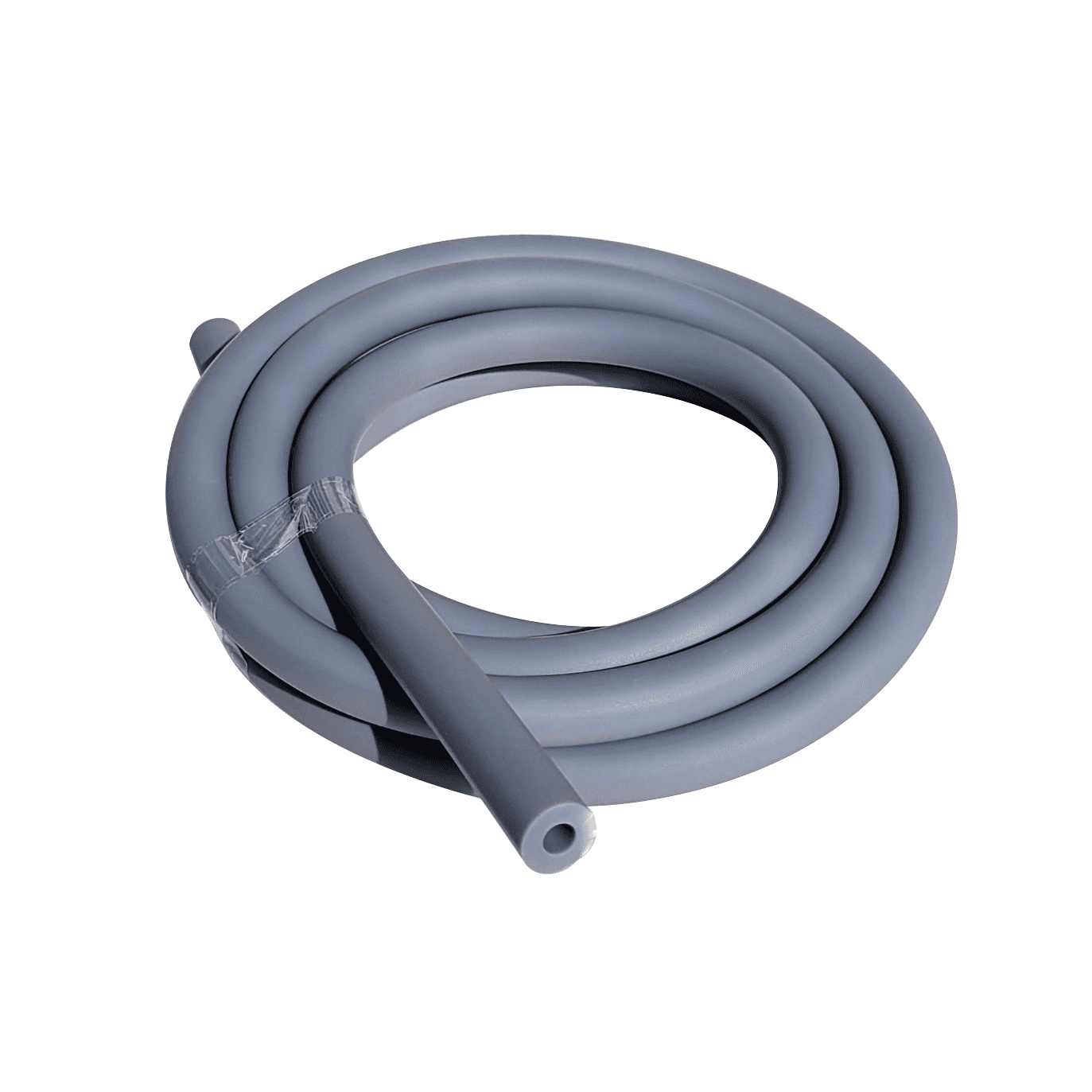

Thermoplastic vulcanizates are rubber blends which have great flexibility at even −40°C and shows good dimensional stability at high temperature of 140°C, one of the best class of TPV is Santoprene. Wayhose under this class is made of Santoprene reinforced with polyester yarn. EPDM rubber is the base of these compounds. Multiple uses like CNG kits, coolant, urea, etc. In automotive.
TPV
Code
Size (mm)
Working Pressure
Bursting Pressure
EPTV0612
6.3 x 12.5
15
45
EPTV0814
8 x 14.5
15
45
EPTV1017
10 x 17
15
45
EPTV1221
12.5 x 21
15
45
EPTV1928
19.5 x 28
15
45
EPTV2534
25 x 34
15
45
EPTV3142
31.5 x 42
15
45
*Pressure Rating unit = Bar
Wayhose is tested for
IS: 12585 | IS: 446 | IS: 444 | IS: 12492
PVC
Code
Size (mm)
Working Pressure
Bursting Pressure
A1L08
6 x 11
15
60
A1L01
8 x 12
10
40
A1L03
8 x 13
15
60
A1L04
8 x 14
20
80
A1L10
10 x 15
15
60
A1L12
16 x 21
10
40
*Pressure Rating unit = Bar

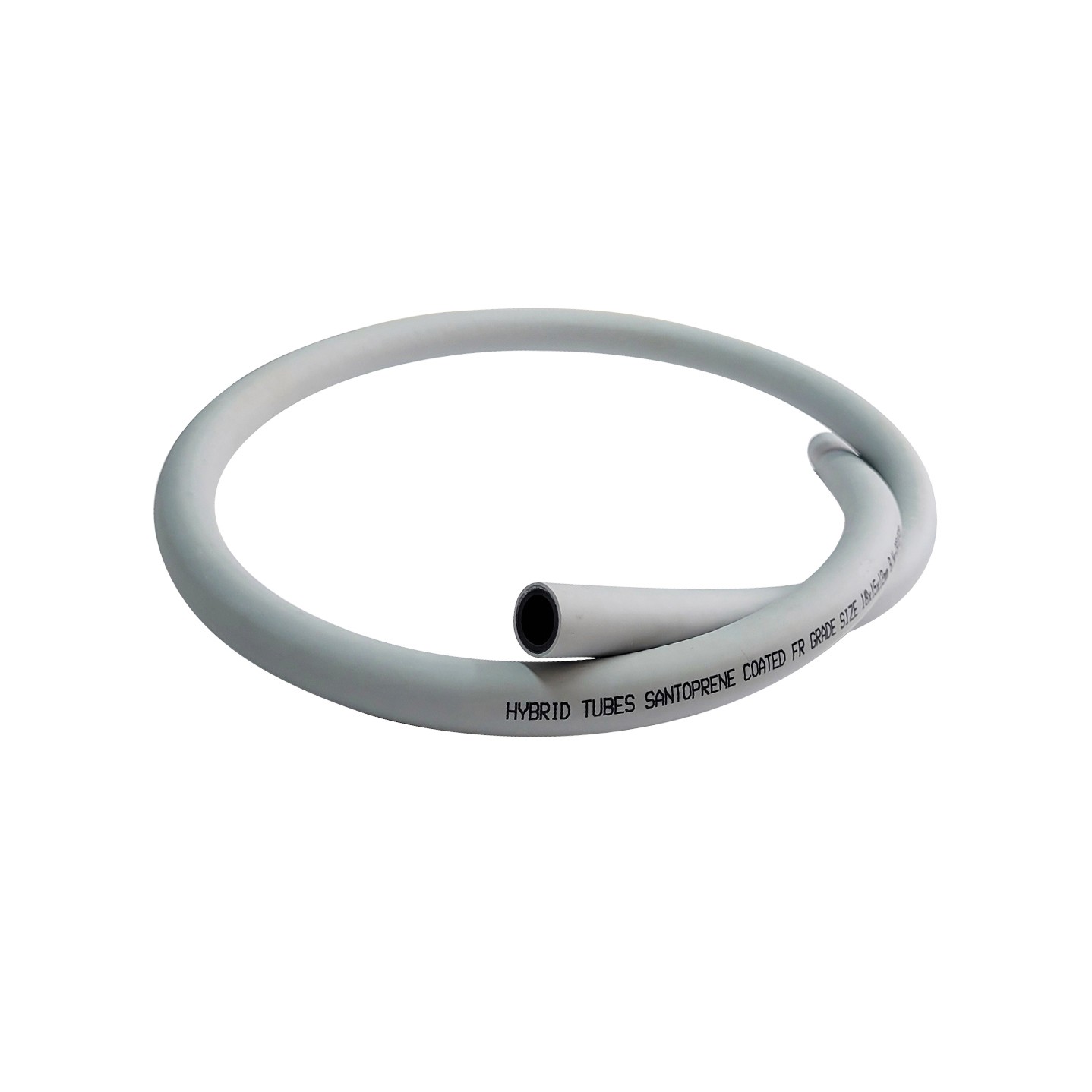

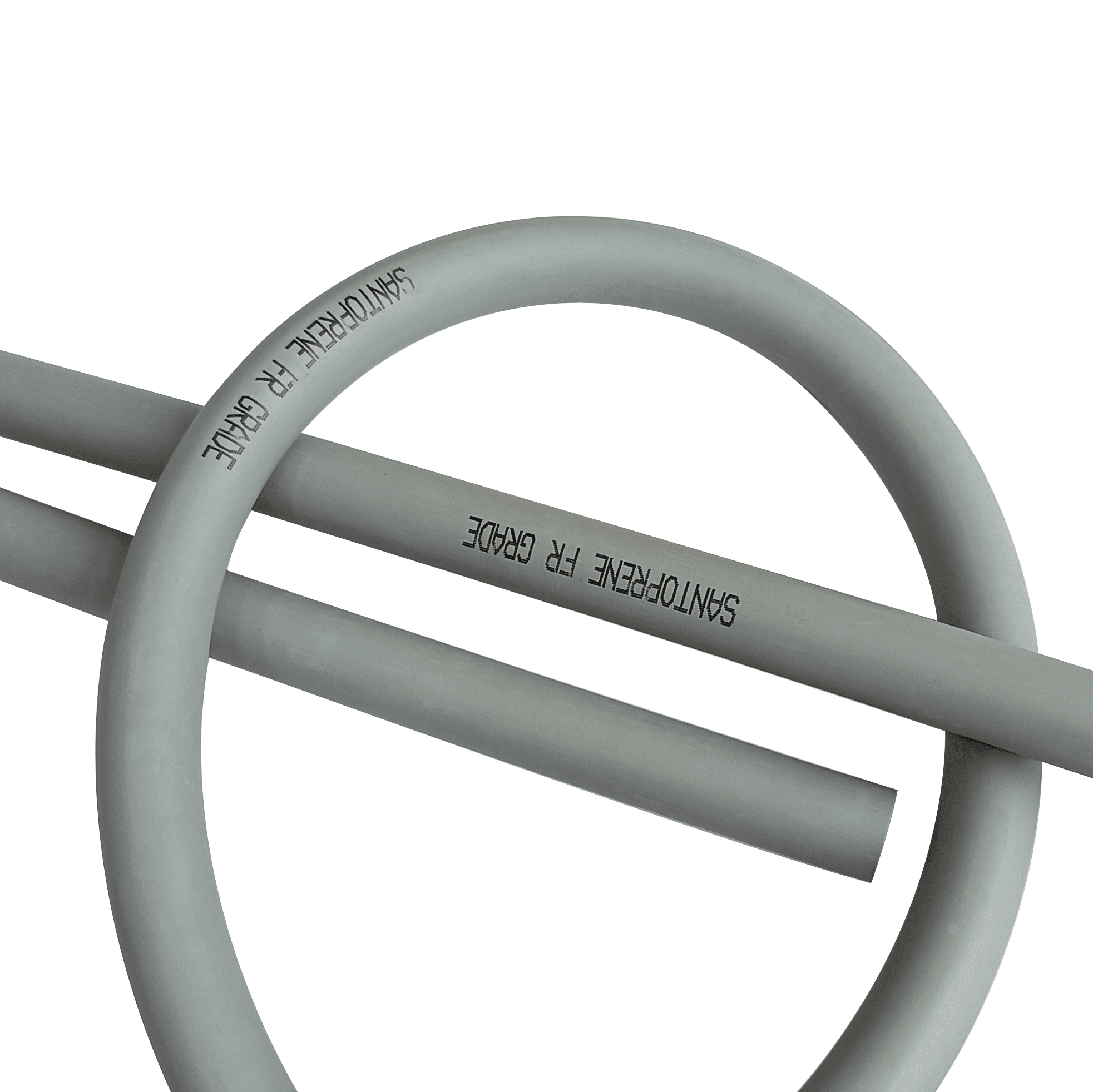

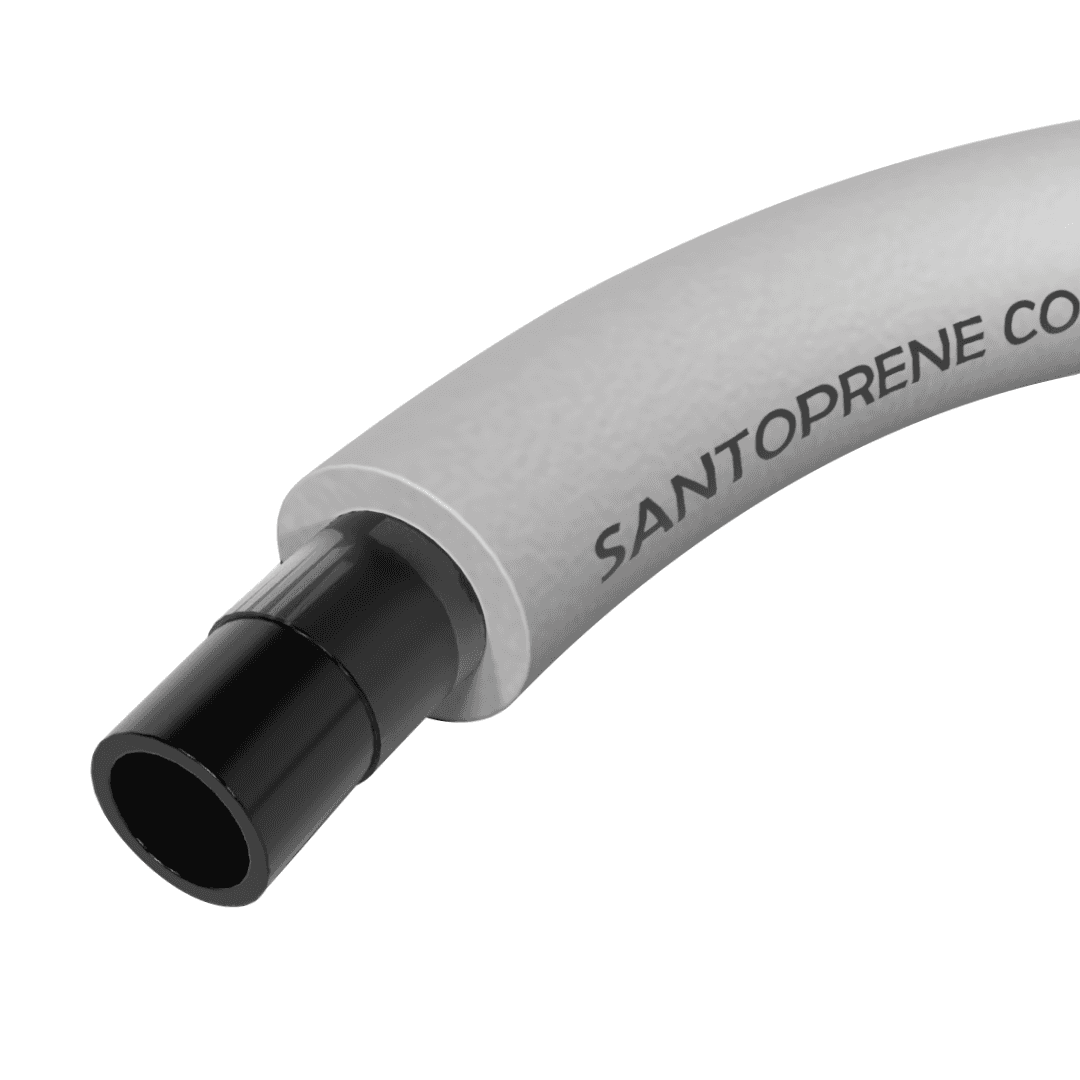

Polyamide (Nylon) tubes are coated/ covered with TPV Santoprene with strong adhesion between the two layers. These multilayer tubes are bend moulded in numerous forms to serve the fitment for flow of air or fuels. Santoprene used in V-0 FR grade (fire retardent grade), which has low temperature use range from −35 to 135°C. Polyamide used is PA 12.
Santoprene + PA 12
Code
Tube (mm)
(OD) Outer
Coating
Working Pressure
Bursting Pressure
15 x 12
18
10
30
8 x 6
12
10
30
8 x 6
11
10
30
8 x 6
10
10
30
*Pressure Rating unit = Bar
