Wayhose is tested for
IS: 12585 | IS: 12492

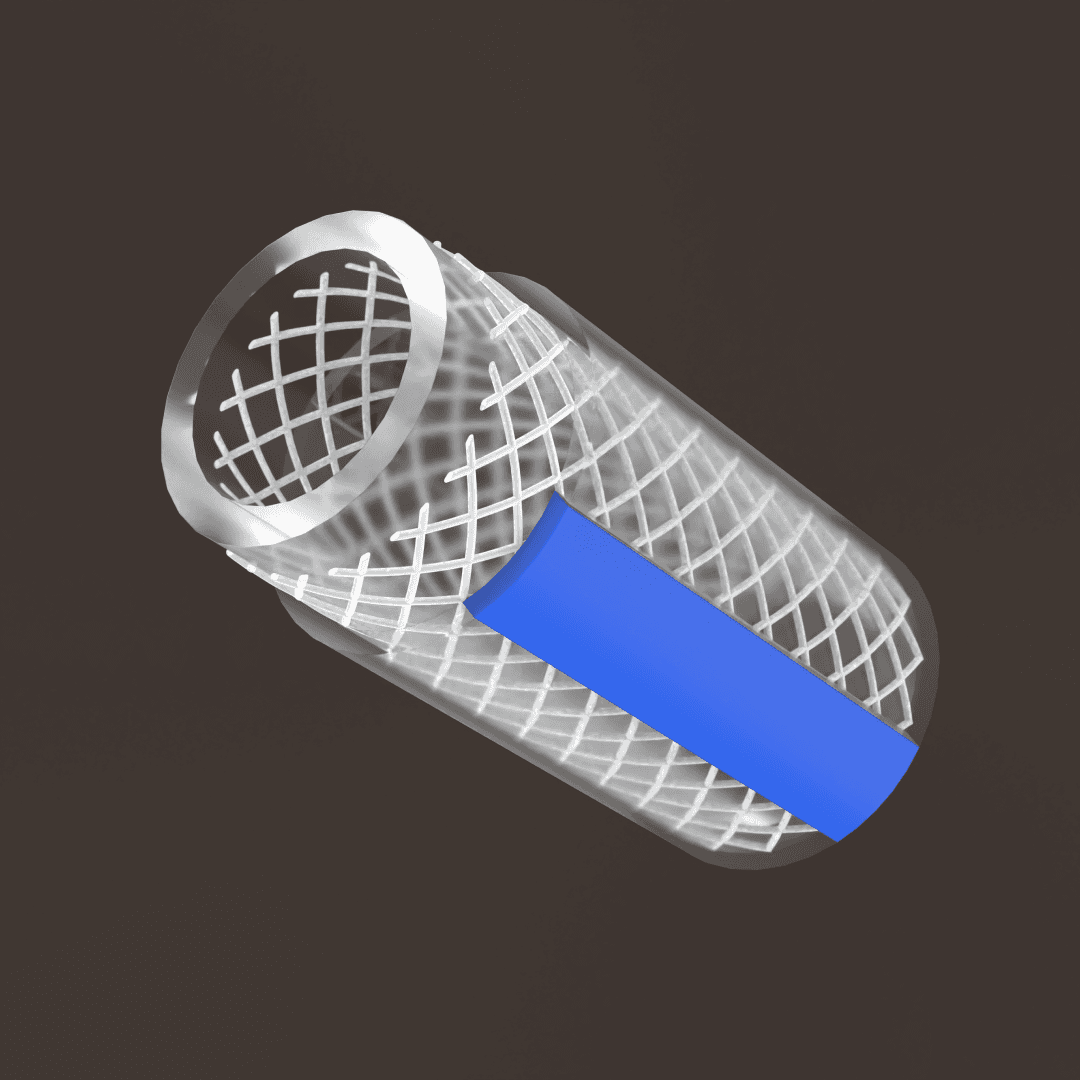

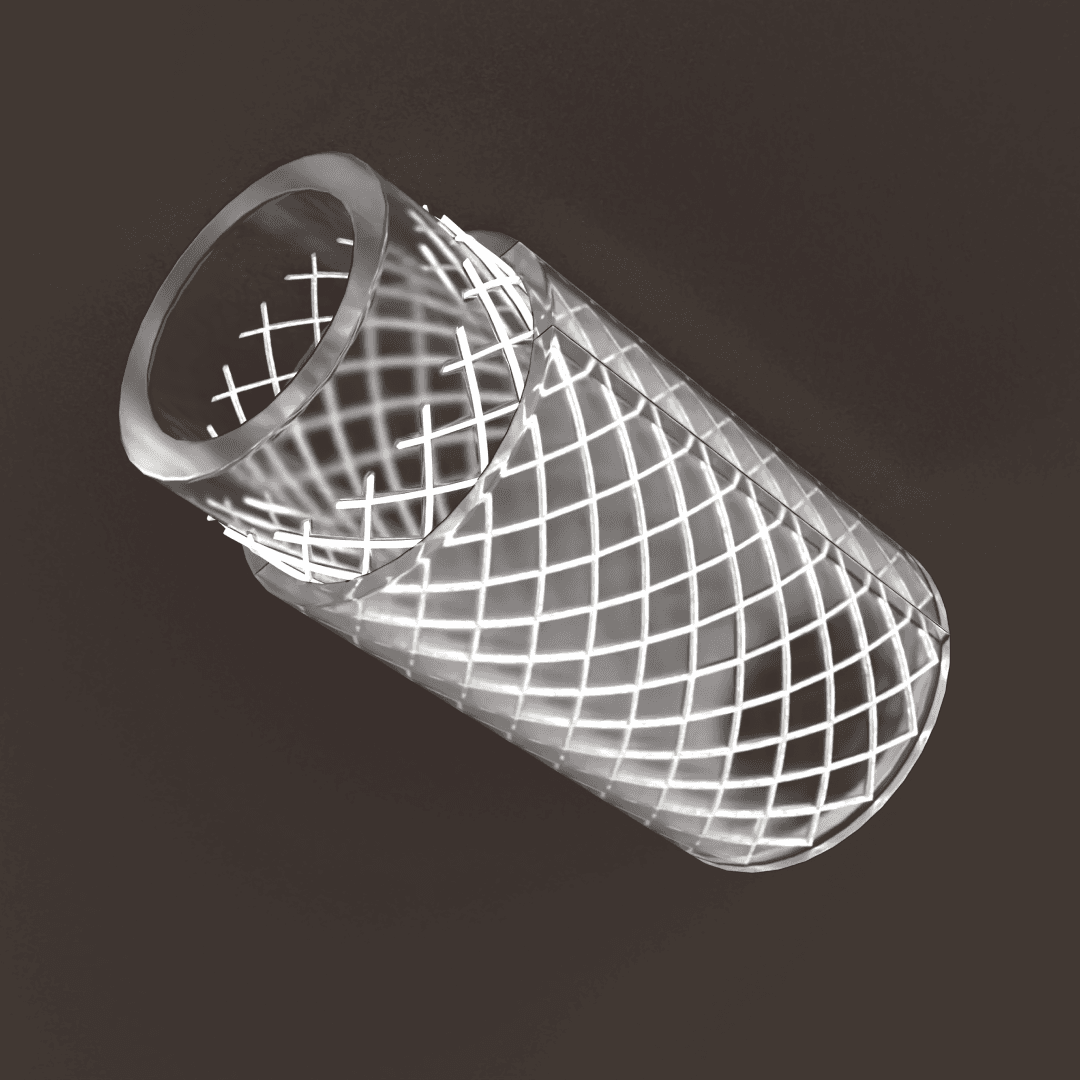

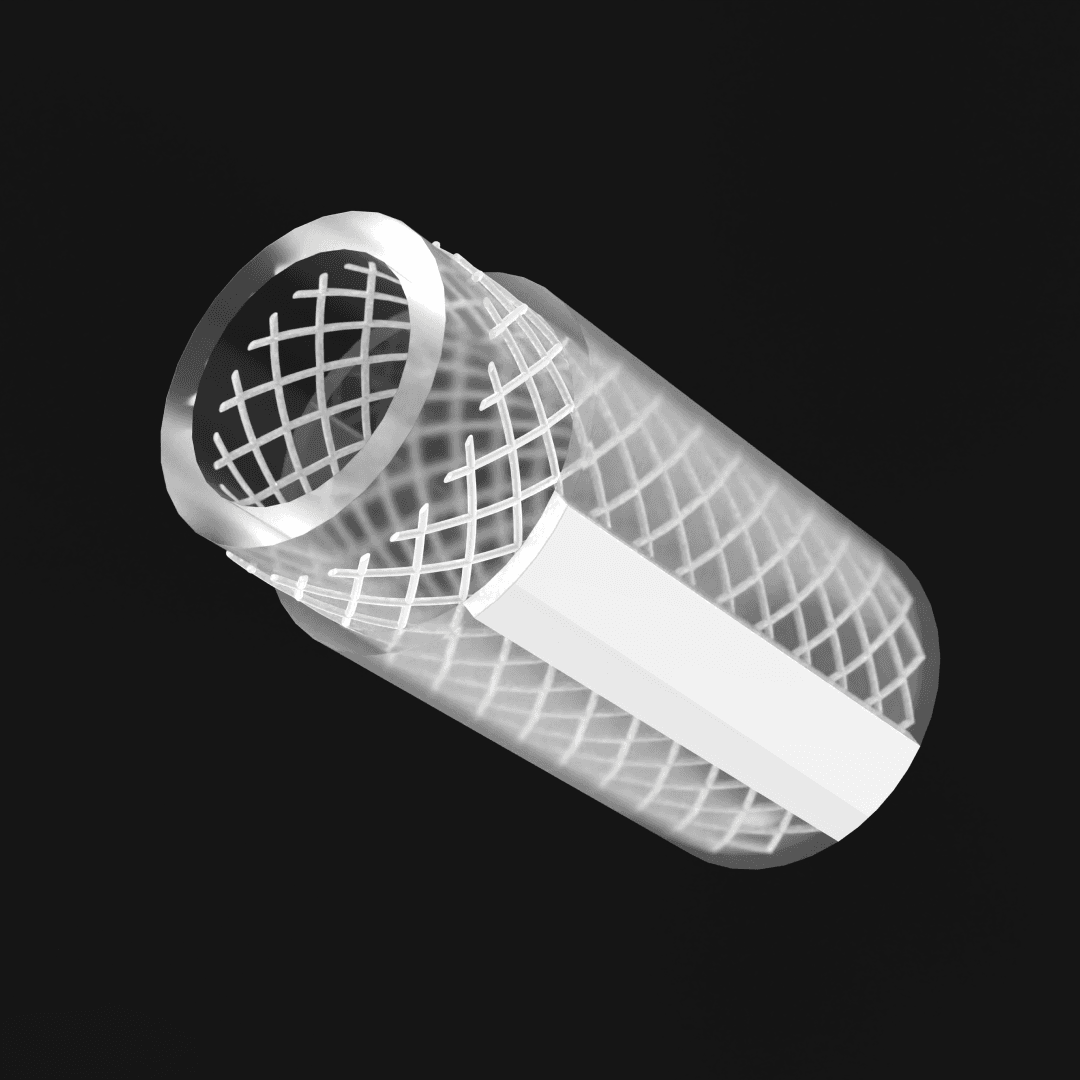

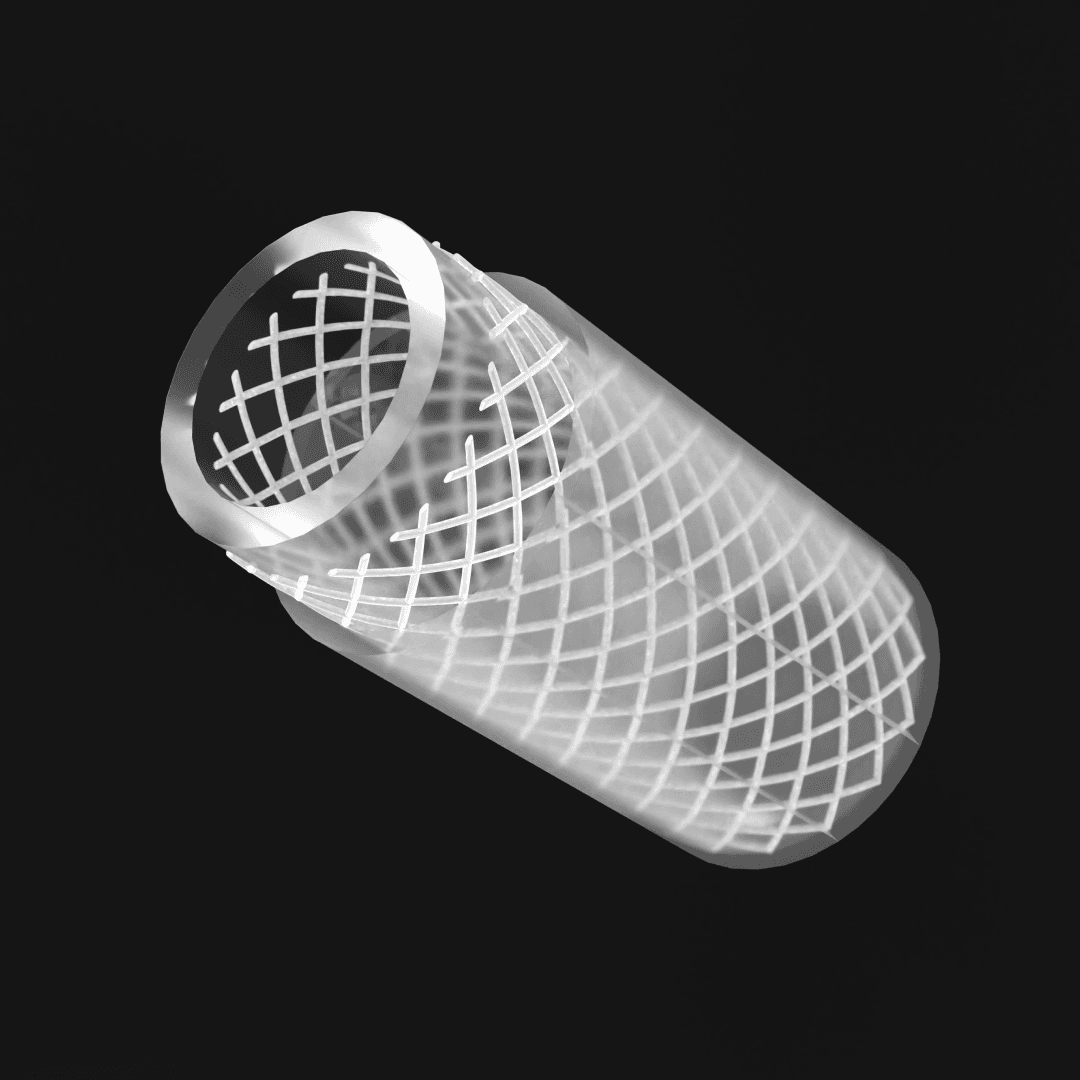

3 Layer hose pipes with absolute transparent smooth surface, capable for multi-purpose applications requiring working pressure up to 20 Bar. Unique formulation of plasticizers makes the hose useful with majority of chemical solvents in all weather conditions without losing its stated physical and mechanical properties for long.

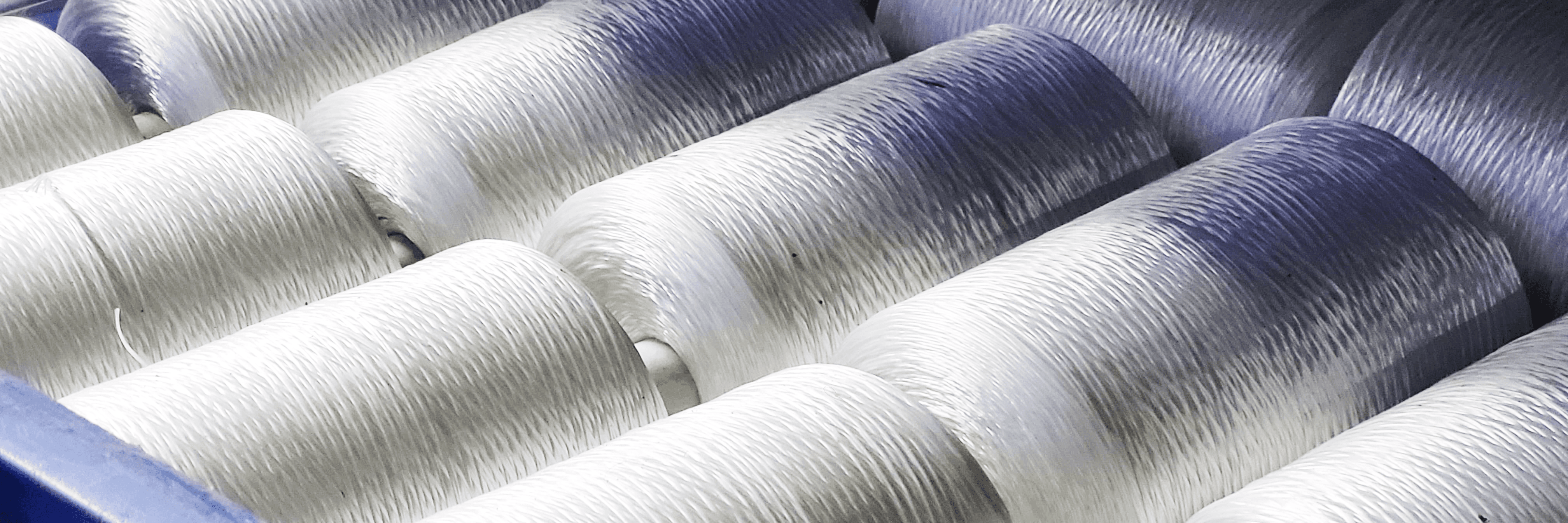

Made out of Transparent PVC with Polyester yarn reinforcement, these hoses offer varying degrees of Pressure bearing, Strength and Softness.
PVC
Code
Size (mm)
Working Pressure
Bursting Pressure

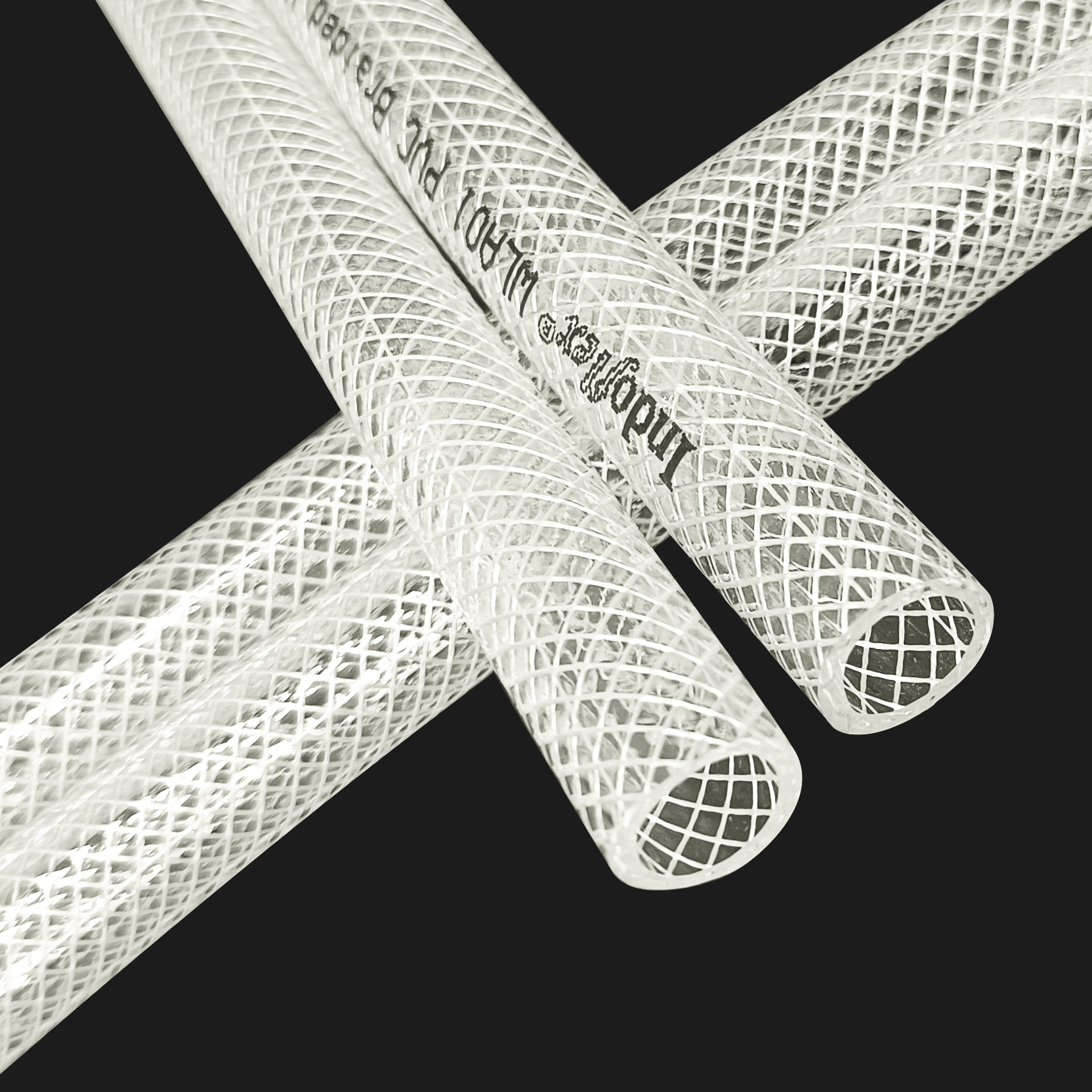

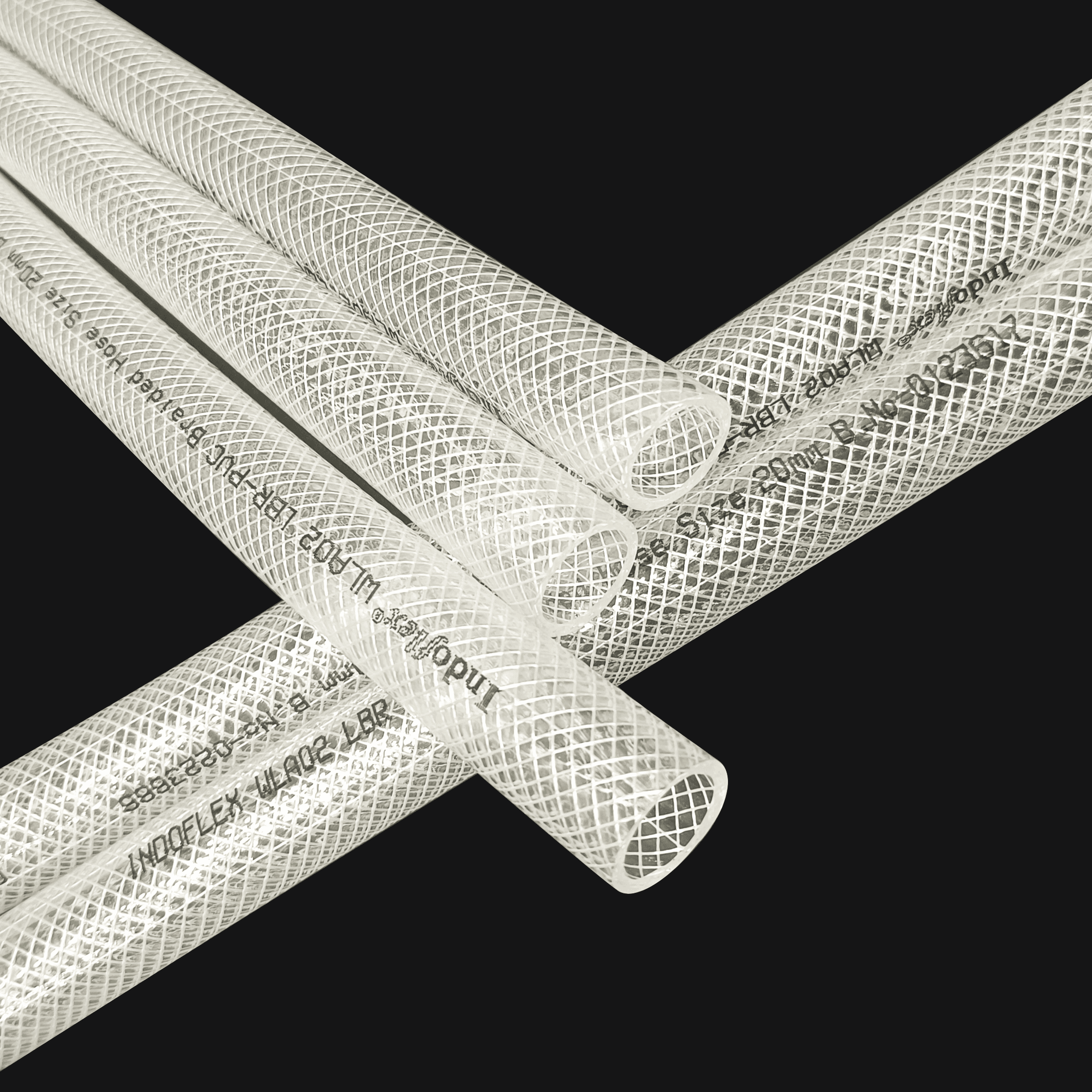

WLA01
12 x 16
5
20
WLA02
19 x 24
5
20
WLA03
25 x 30
5
20
WLA04
31 x 38.5
5
20
WLA05
38 x 45
5
20
WLA06
50 x 57.5
5
20
*Pressure Rating unit = Bar
Wayhose is tested for
IS: 12585 | IS: 12492

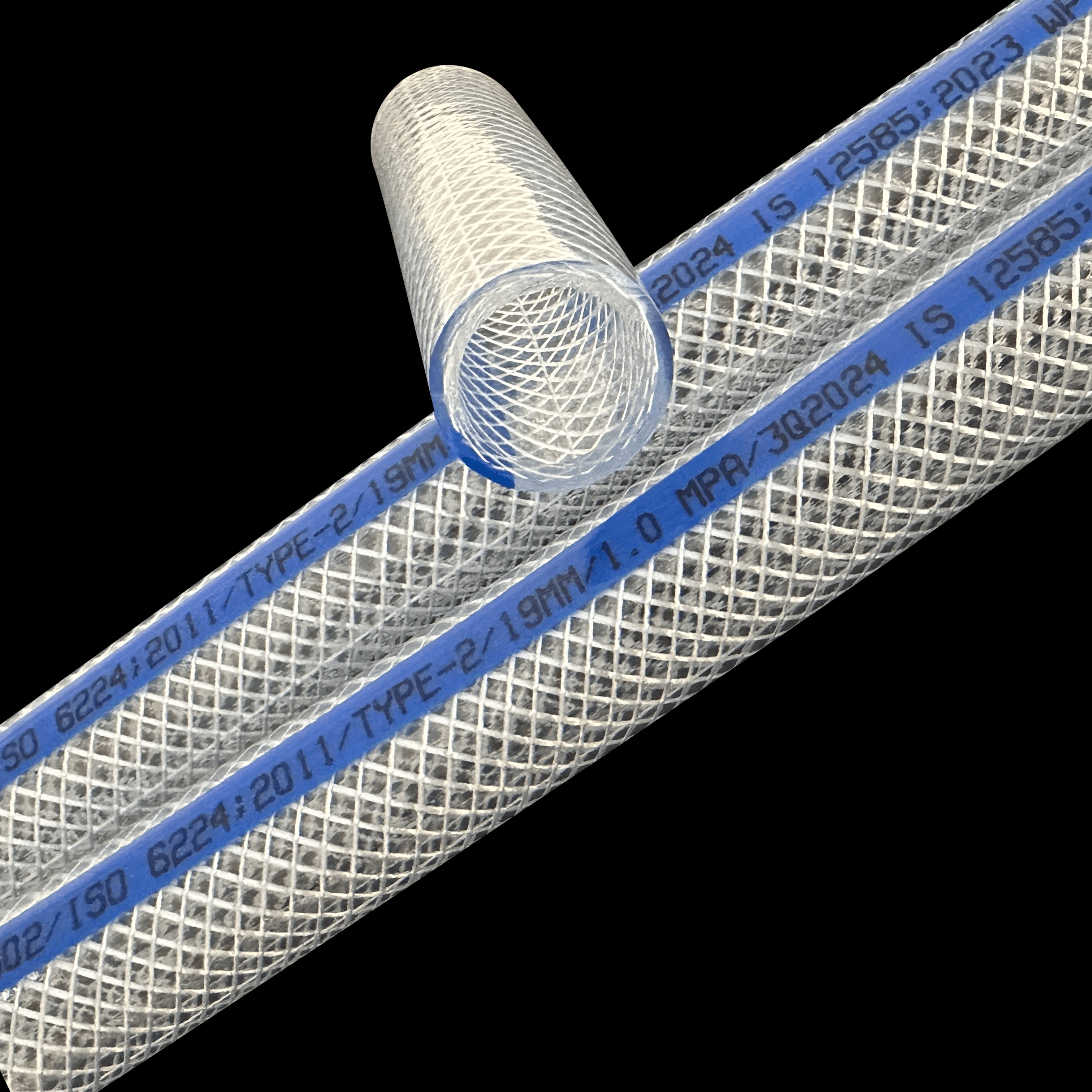

3 Layer hose pipes with absolute transparent smooth surface, capable for multi-purpose applications requiring working pressure up to 40 Bar. Unique formulation of plasticizers makes the hose useful with majority of chemical solvents in all weather conditions without losing its stated physical and mechanical properties for long.
Made out of Transparent PVC with Polyester yarn reinforcement, these hoses offer varying degrees of Pressure bearing, Strength and Softness.
PVC
Code
Size (mm)
Working Pressure
Bursting Pressure
WLB01
12 x 17
10
40

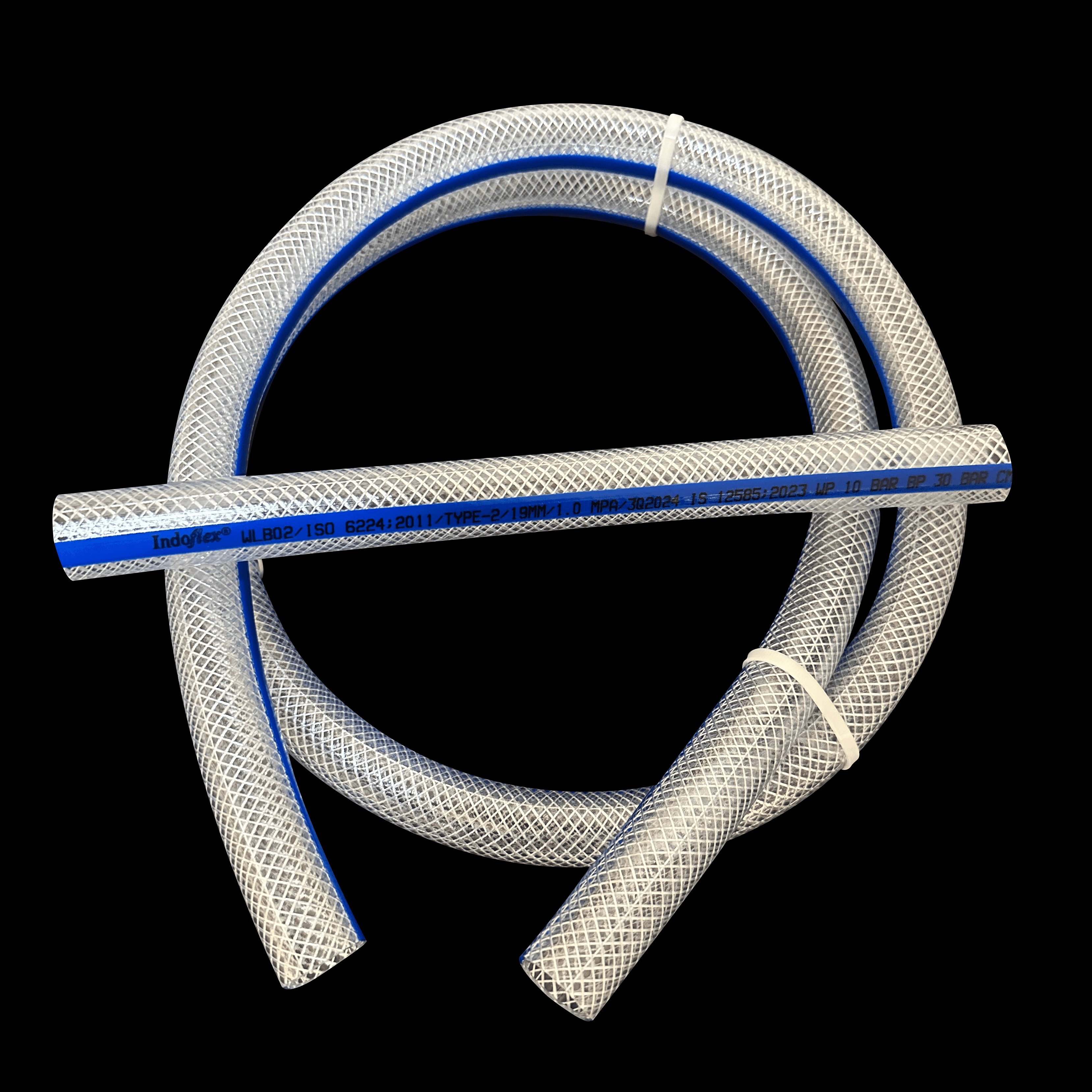

WLB02
19 x 25.5
10
40
WLB03
25 x 31
10
40
WLBO4
31 x 39.5
10
40
WLBO5
38 x 47
10
40
WLB06
50 x 60
10
40
*Pressure Rating unit = Bar
Wayhose is tested for
IS: 12585 | IS: 12492
3 Layer hose pipes with absolute transparent smooth surface, capable for multi-purpose applications requiring working pressure up to 40 Bar. Unique formulation of plasticizers makes the hose useful with majority of chemical solvents in all weather conditions without losing its stated physical and mechanical properties for long.
Made out of Transparent PVC with Polyester yarn reinforcement, these hoses offer varying degrees of Pressure bearing, Strength and Softness.
PVC
Code
Size (mm)
Working Pressure
Bursting Pressure

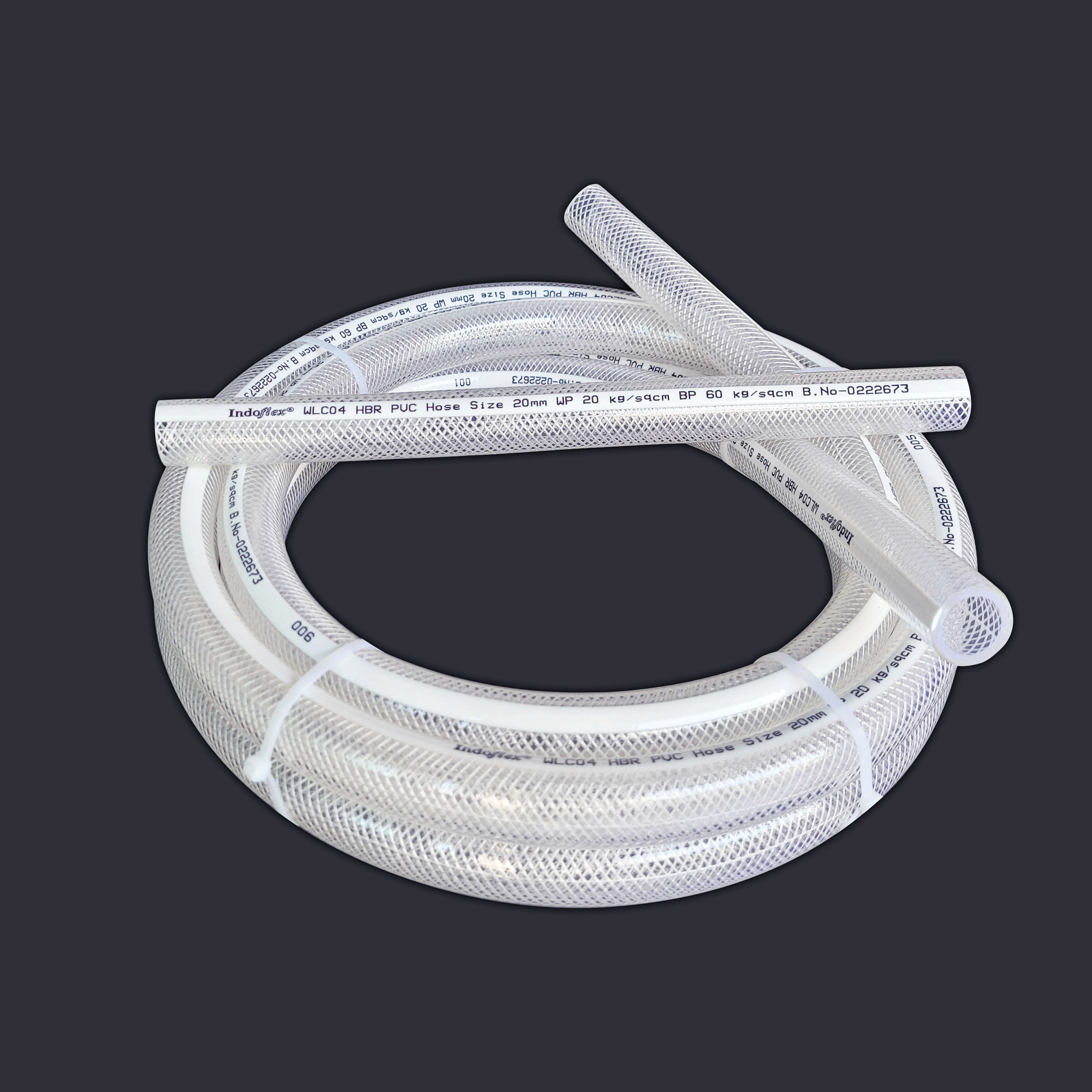

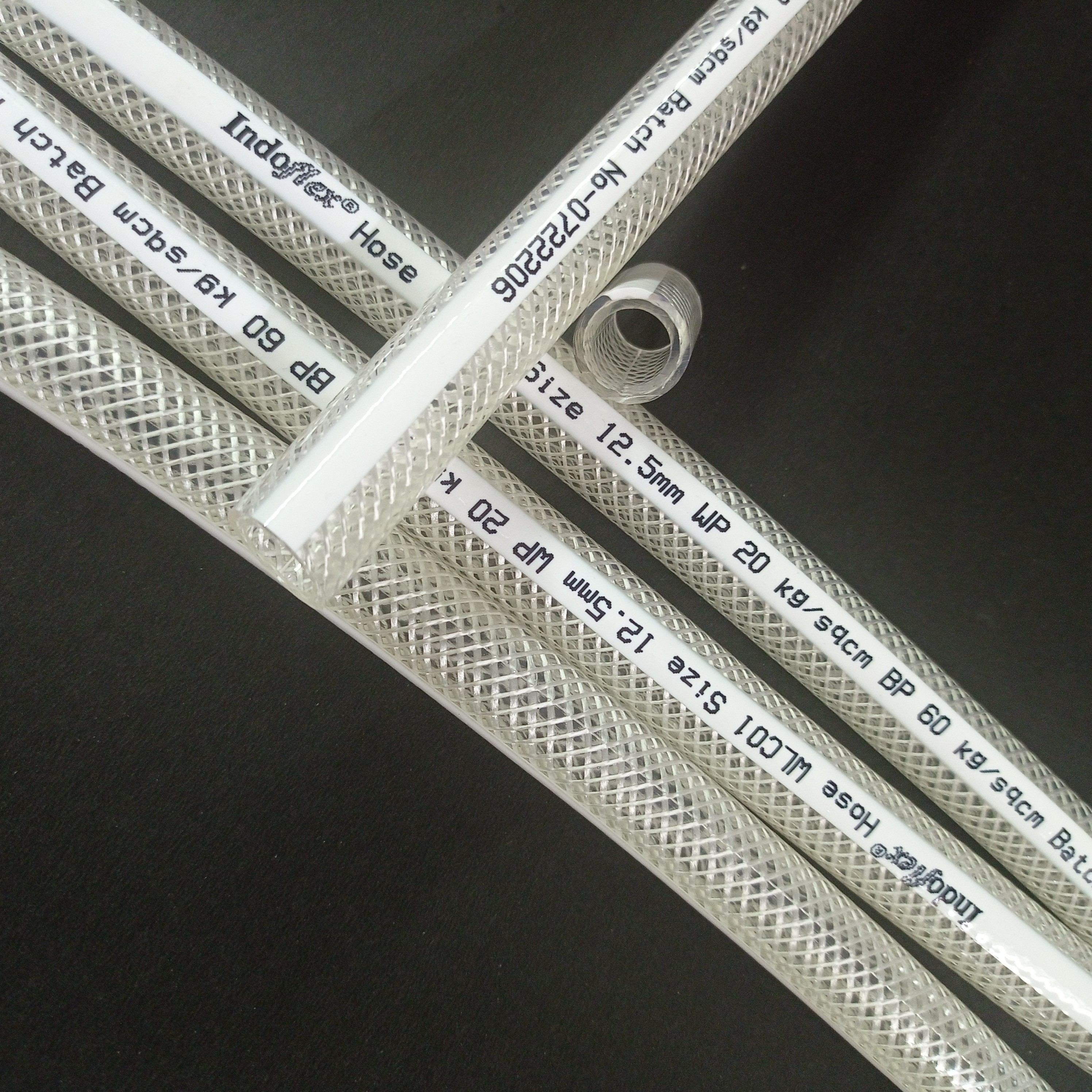

WLC01
12 x 18
15
60
WLC01P
12 x 19
20
80
WLC02
19 x 26.5
15
60
WLC02P
19 x 27.5
20
80
WLC03
25 x 32
15
60
WLC03P
25 x 33
20
80
*Pressure Rating unit = Bar
Wayhose is tested for
IS: 12585 | IS: 12492
3 Layer hose pipes with absolute transparent smooth surface, capable for multi-purpose applications requiring working pressure up to 40 Bar. Unique formulation of plasticizers makes the hose useful with majority of chemical solvents in all weather conditions without losing its stated physical and mechanical properties for long.
Made out of Transparent PVC with Polyester yarn reinforcement, these hoses offer varying degrees of Pressure bearing, Strength and Softness.
PVC
Code
Size (mm)
Working Pressure
Bursting Pressure

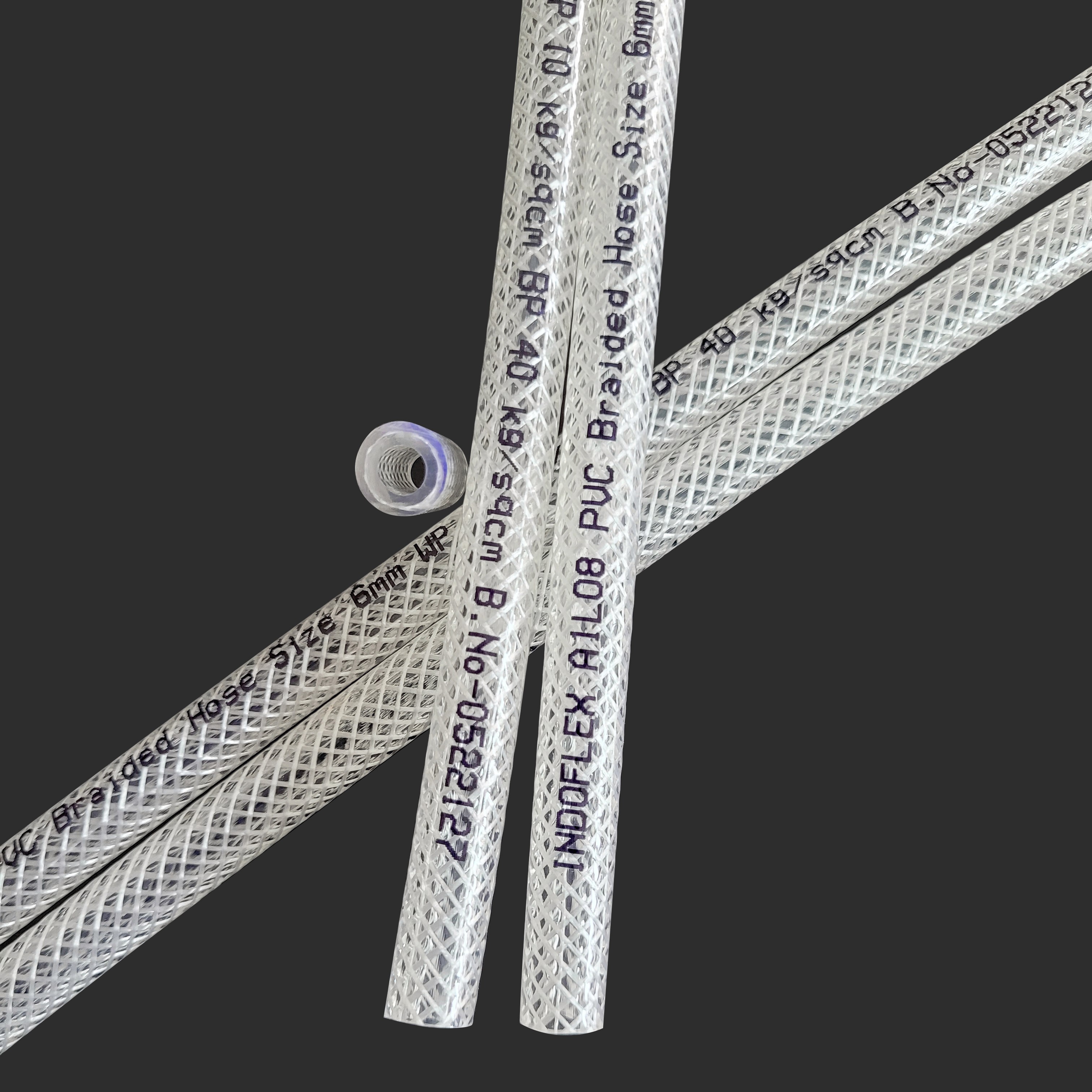

A1L08
6 x 11
15
60

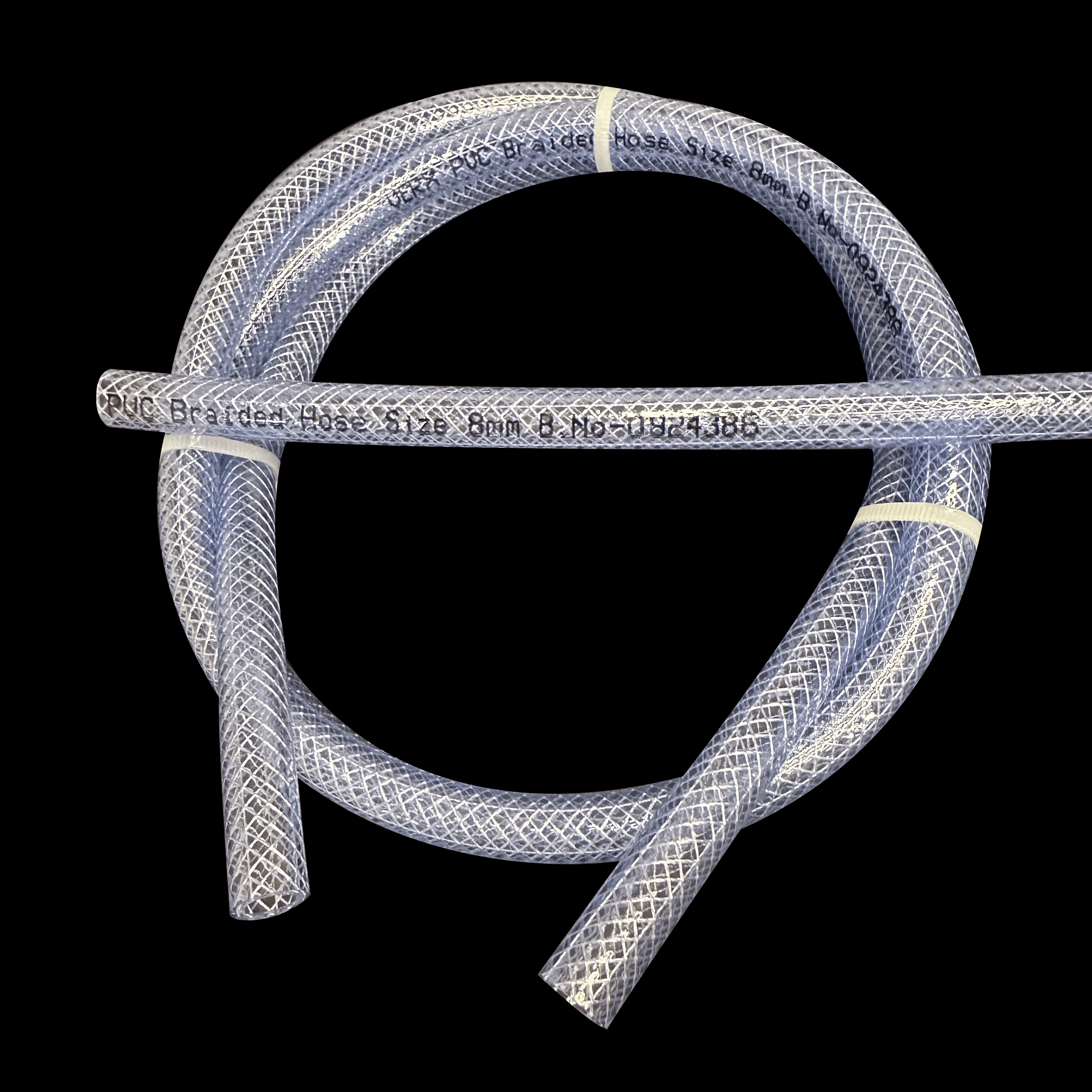

A1L01
8 x 12
10
40
A1L03
8 x 13
15
60
A1L04
8 x 14
20
80
A1L10
10 x 15
15
60
A1L12
16 x 21
10
40
*Pressure Rating unit = Bar
