What is Polyamide?
Nylon (PA 6 and PA 12) or Polyamide is an engineered thermoplastic which is used in tubing primarily because of its light weight and high strength even with minimum wall thickness. While PA 6 is a more rigid and economical material, PA 12 is more flexible and does not crack more often. Due to high heat bearing properties of up to 130 degree Celsius it is used widely in Automotive as well as fire fighting applications.
Wayhose is tested for
SAEJ844, ISO 7628 & DIN74324

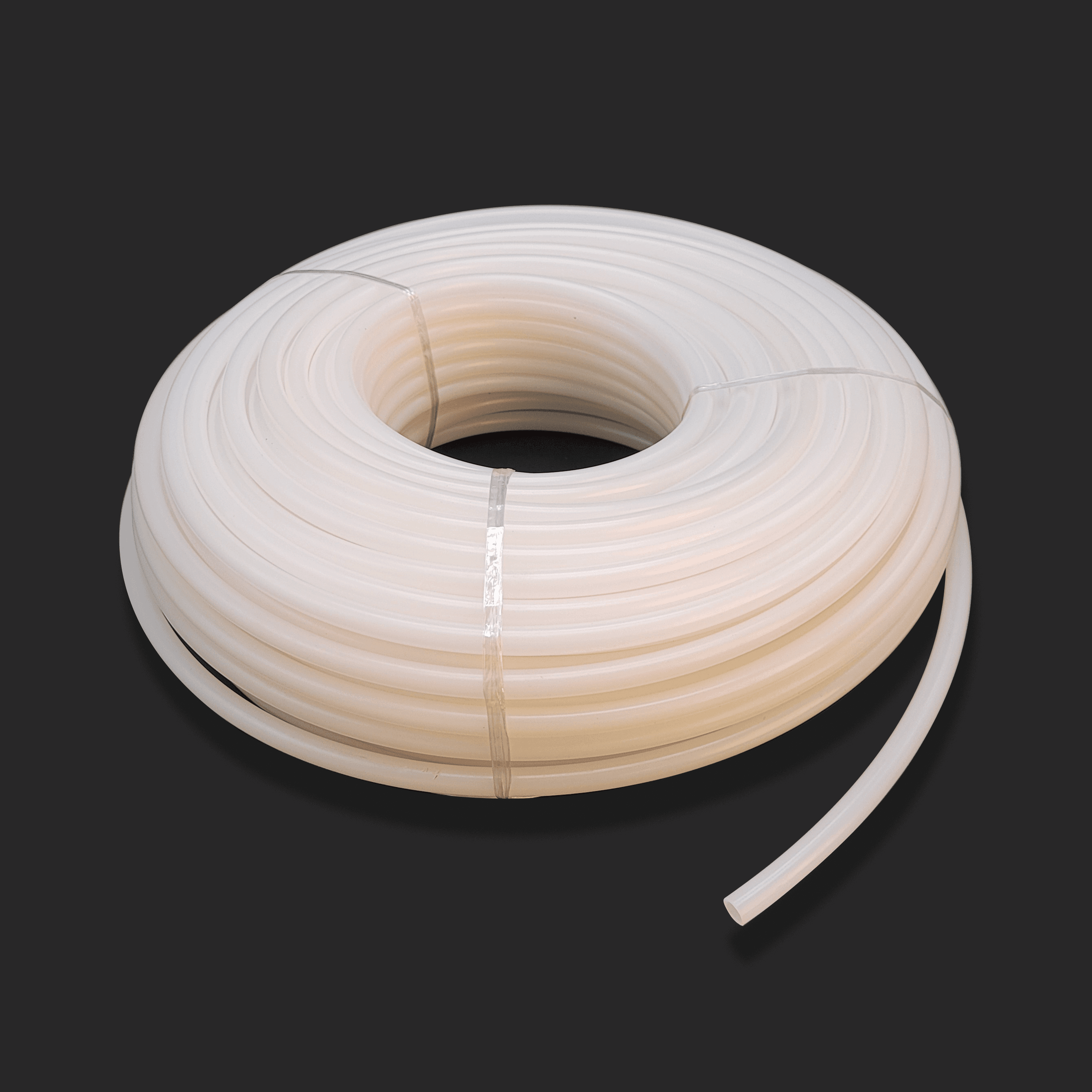

Wayhose Polyamide 6 (PA6) Tubes, also known as Nylon 6 Tubes are manufactured out of Virgin Polyamide granules, certified for heat and light stability. The tubes are modified further to remain crack free over a long time.
Nylon is specifically known for for its light weight and high strength properties which make it suitable for high pressure Industrial and Automotive applications. Therefore the tubes made are highly resistant to abrasion & wear even when subjected to pulsating air pressure in air brake systems.
Technically trained team at Wayhose has a renowned record of providing consistent quality with minimum diametric variation in each lot of the tube.
Polyamide 6 Tubes - Size Chart
Code
Size (mm)
Wall (mm)
Bursting Pressure
6PA0425
4 x 2.5
0.75
80
6PA0402
4 x 2
1
80
6PA0604
6 x 4
1
80
6PA0806
8 x 6
1
80
6PA1008
10 x 8
1
80
6PA1210
12 x 10
1
60
6PA1295
12 x 9.5
1.25
100
6PA1209
12 x 9
1.5
120
6PA1512
15 x 12
1.5
100
*Pressure Rating unit = Bar
Wayhose is tested for
SAEJ844, ISO 7628 & DIN74324

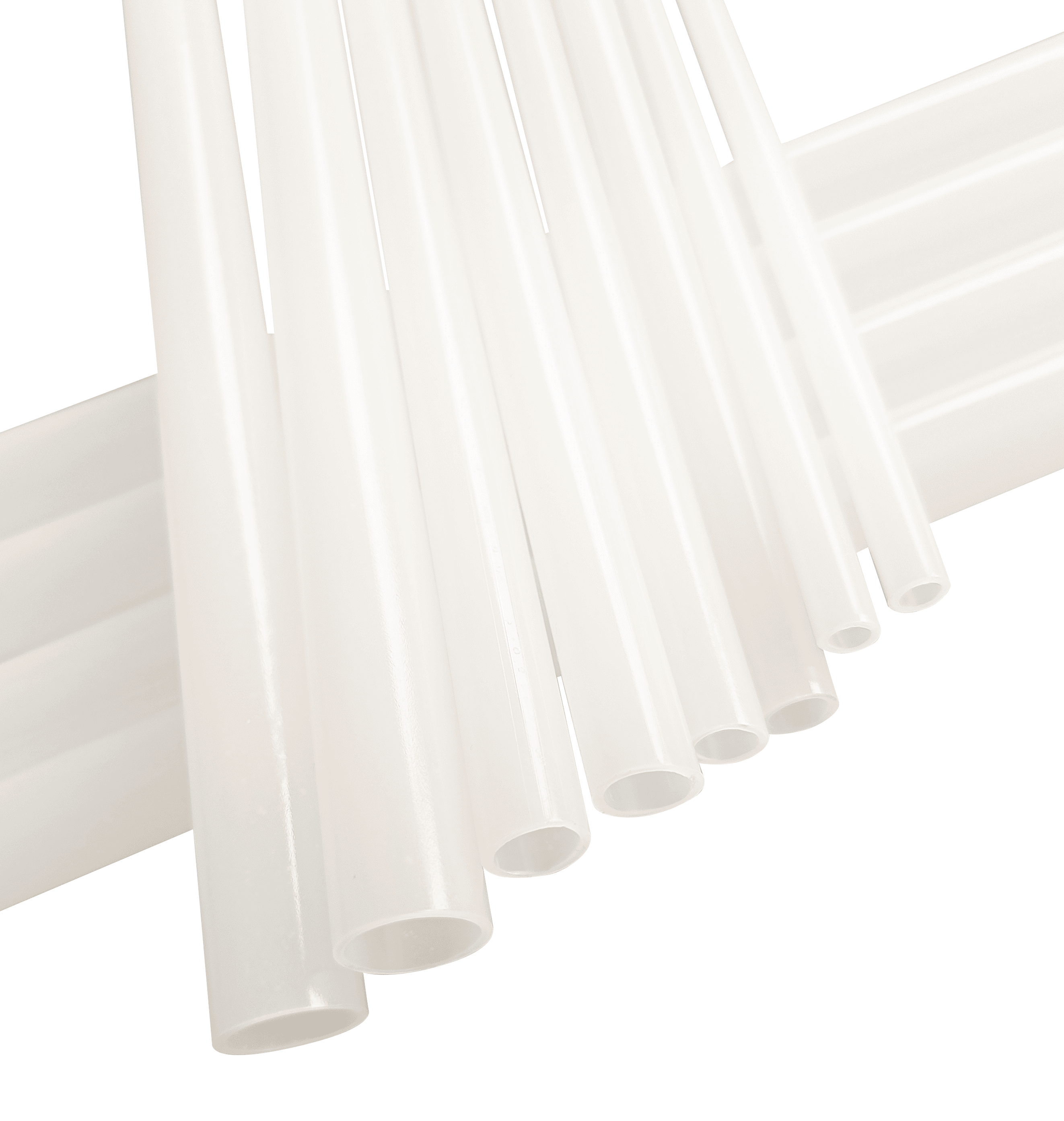

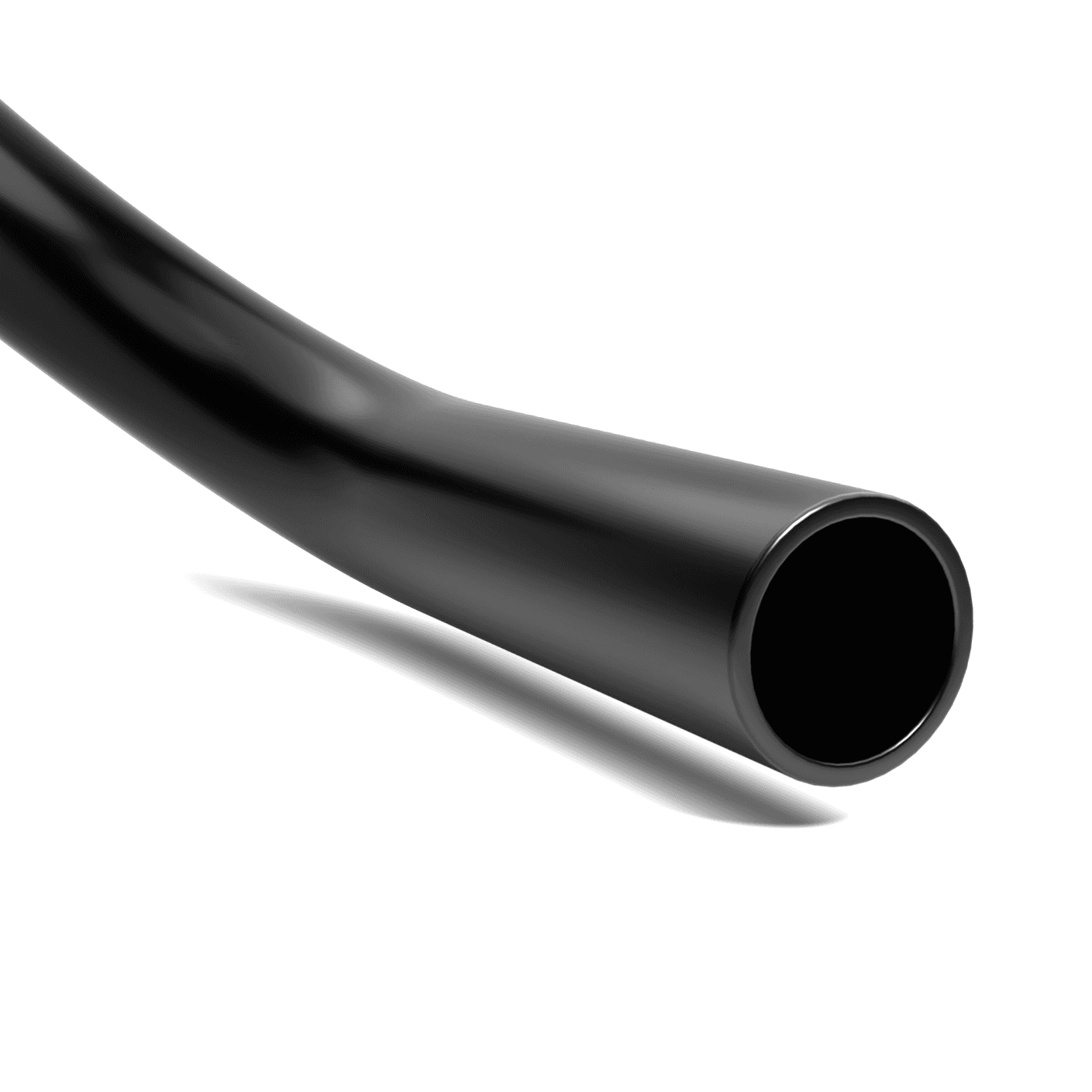

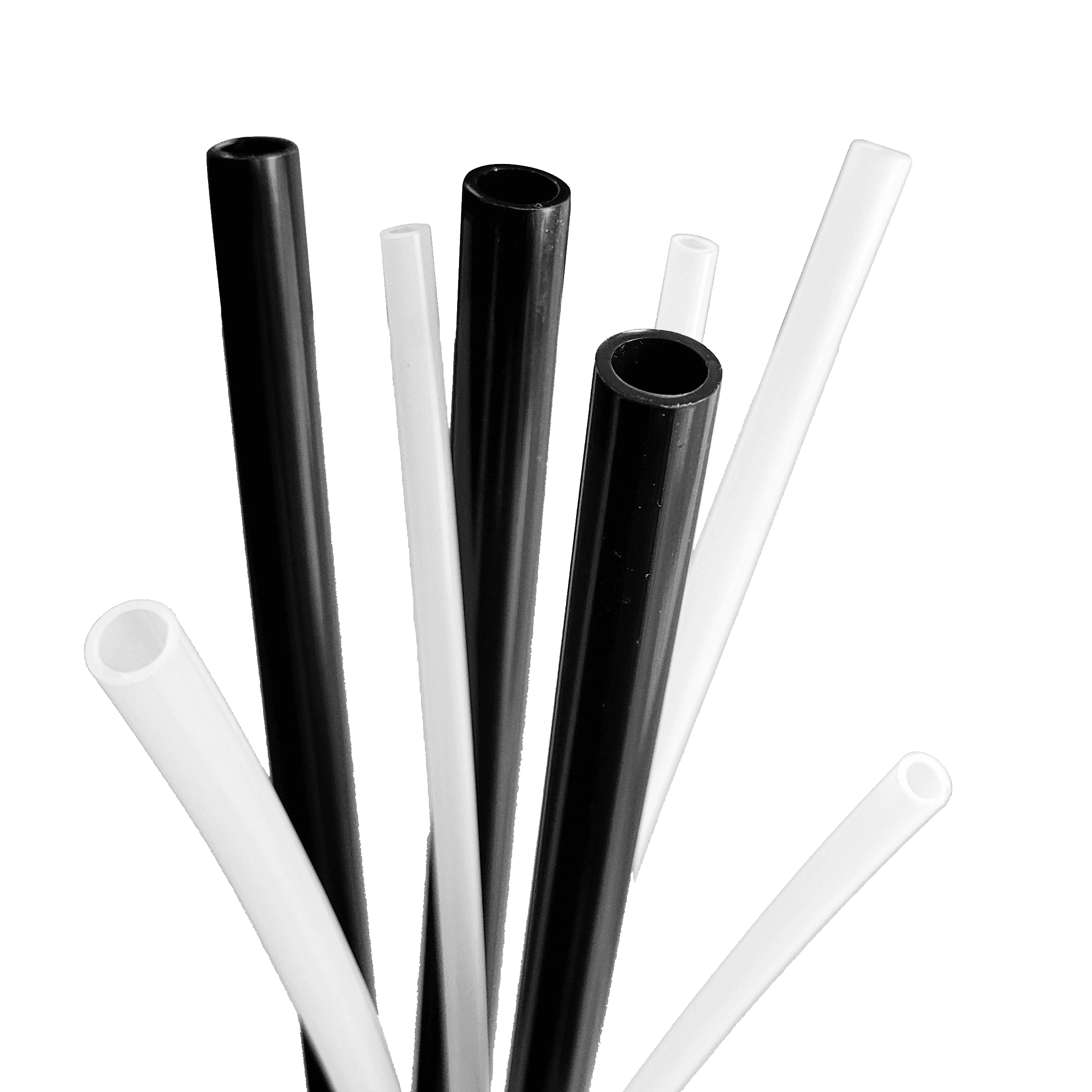

Polyamide 12 Nylon tubes are light weight and have excellent strength. Polyamide tubes made by Wayhose are used for
Air Brake systems
Fuel Line connections
Coiled tubing
Polyamide-12 or PA-12 show excellent flexibility, fatigue resistance and high-pressure resistance. It is an HIPHL grade material which translates to high viscosity impact modified plasticized heat and light stabilized material.
Polyamide 12 Tubes - Size chart
Code
Size (mm)
Wall (mm)
Bursting Pressure
12PA0425
4 x 2.5
0.75
80
12PA0402
4 x 2
1
80
12PA0604
6 x 4
1
80
12PA0806
8 x 6
1
80
12PA1008
10 x 8
1
80
12PA1210
12 x 10
1
60
12PA1295
12 x 9.5
1.25
100
12PA1209
12 x 9
1.5
120
12PA1512
15 x 12
1.5
100
*Pressure Rating unit = Bar
Proposed tests for Wayhose
UL 300

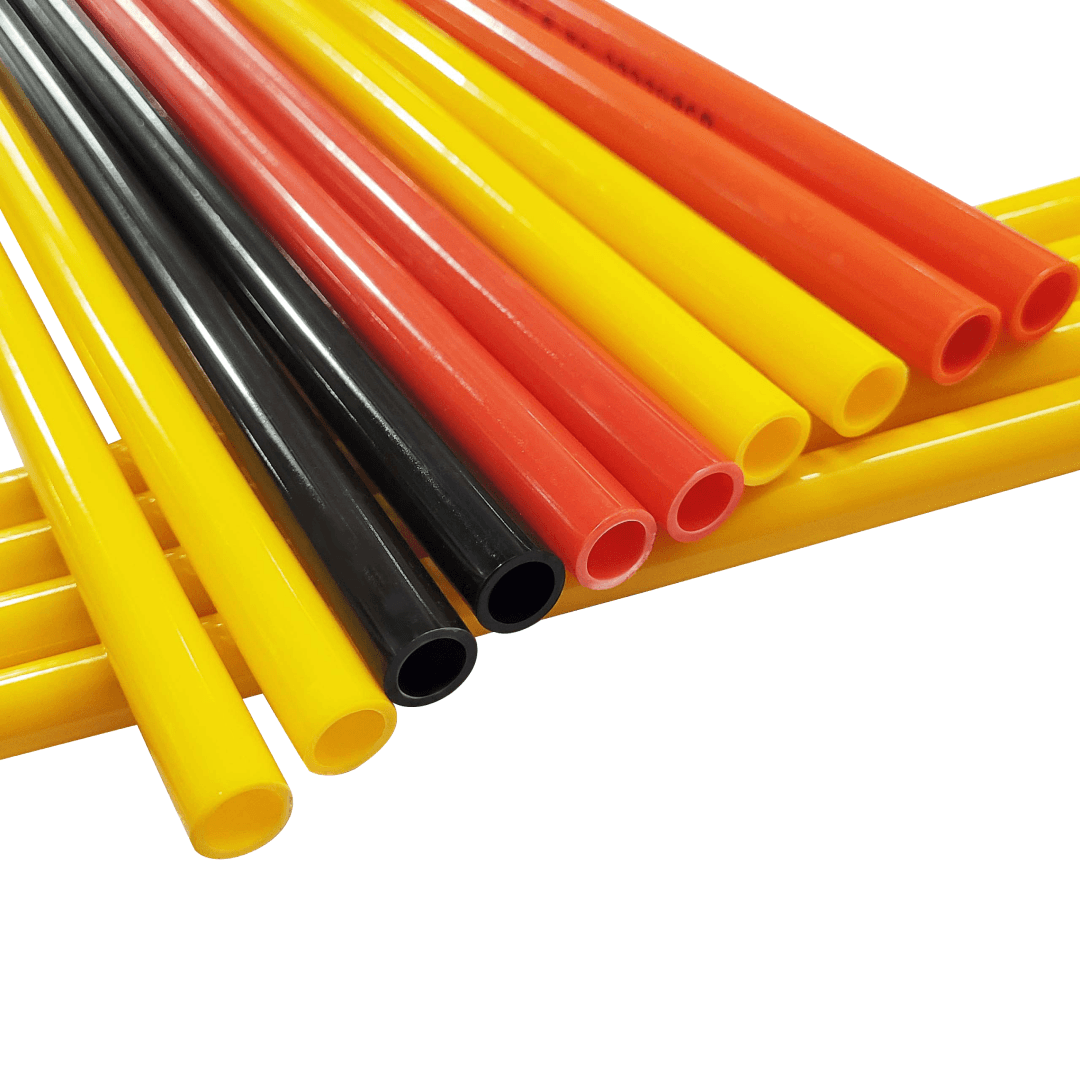

Wayhose tubes are non-brittle, long lasting and precisely engineered for easy flow of fire retardants namely Clean Agents (Novec 1230), Gaseous Agents, Dry chemicals, Mechanical Foam and Water Mist.
Made out of Polyamide 12 Nylon Tubes, these tubes are designed to detect and suppress fires quickly, minimizing damage and downtime in the critical areas.
Polyamide 12 Nylon
Code
Size (mm)
Working Pressure
Bursting Temperature
P12A0604
4 x 6
30
110
P12A0806
6 x 8
30
110
*Pressure Rating unit = Bar, Temperature unit = °C

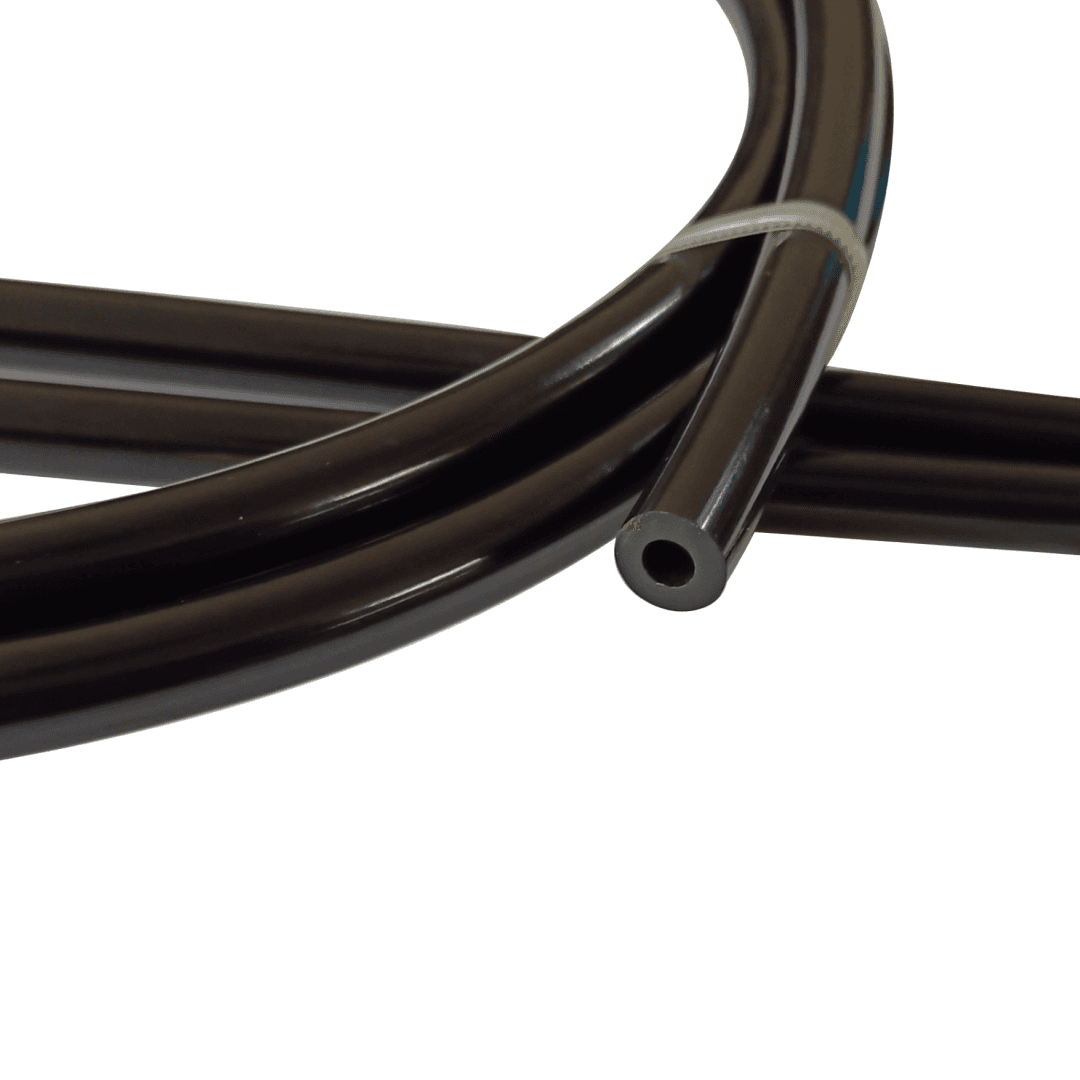

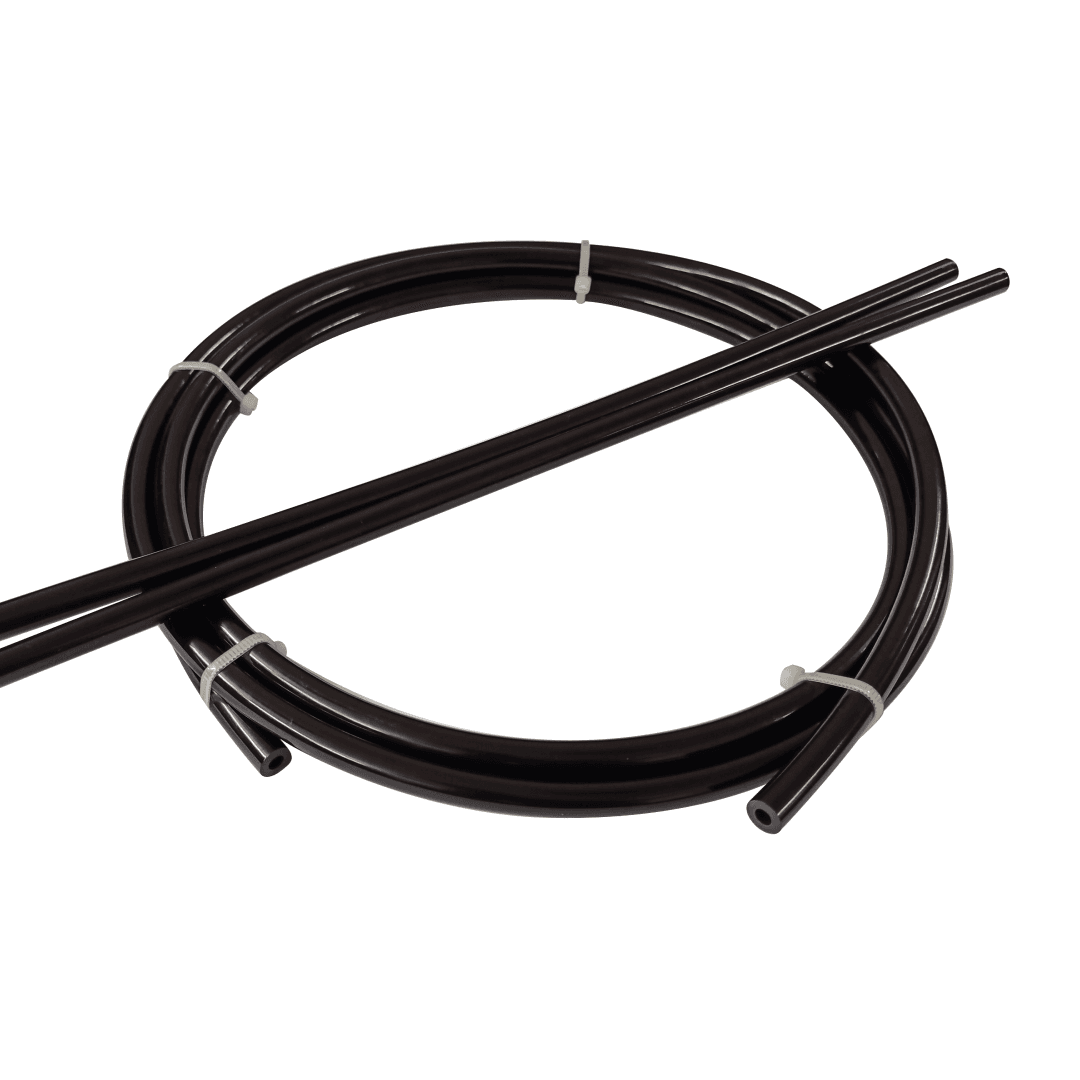

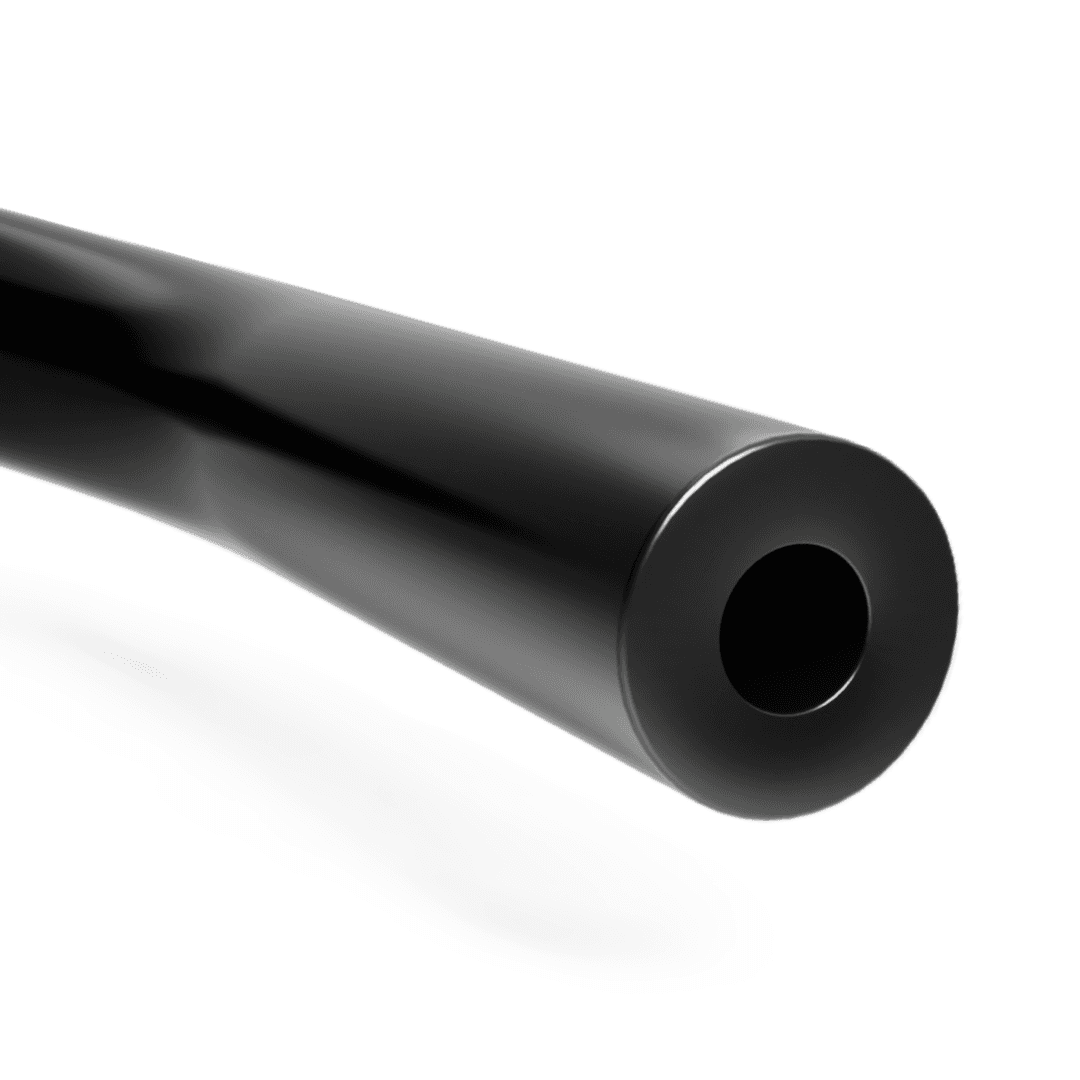

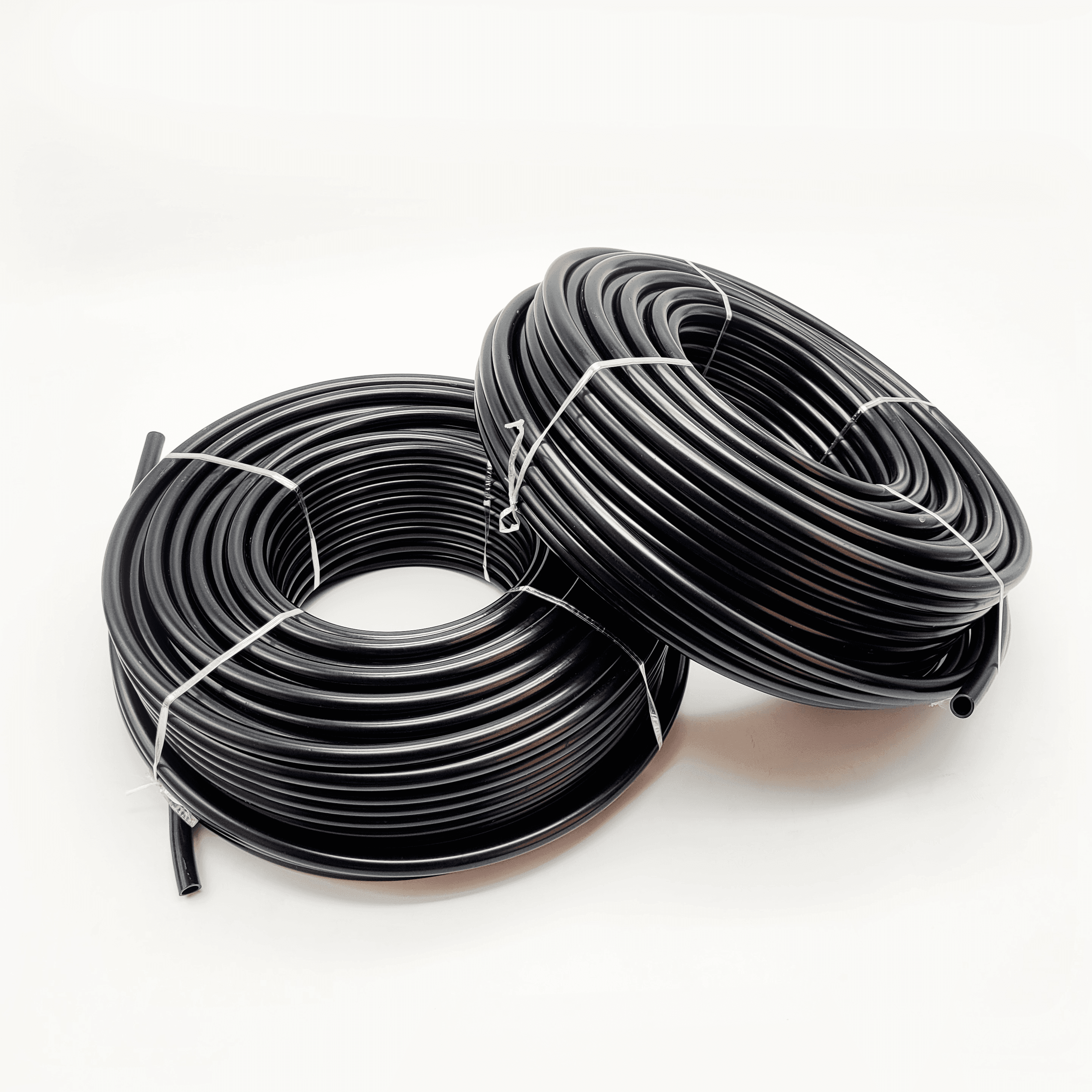

Wayhose tubes for Misting are specifically designed for high-pressure outdoor applications. Having a wall thickness of 2mm composed out of high strength polyamide these tubes offer a smooth path for the flow of water and other fluids in industrial cooling systems.
These tubes are composed of UV stabilized, high flexibility modified PA6 material with some of the following use cases.
Key applications:
Fogging effects
Dust control Machines and suppression systems
Humidifiers
Mist fans
Outdoor cooling lines
PA 6 Modified Tubes - Technical Details
Code
Size (mm)
Working Pressure
Bursting Pressure
06PA9545
9.5 x 4.5
100
250
*Pressure Rating unit = Bar
