Wayhose is compliant with
ISO 5359 – Standard for medical gas hose assemblies

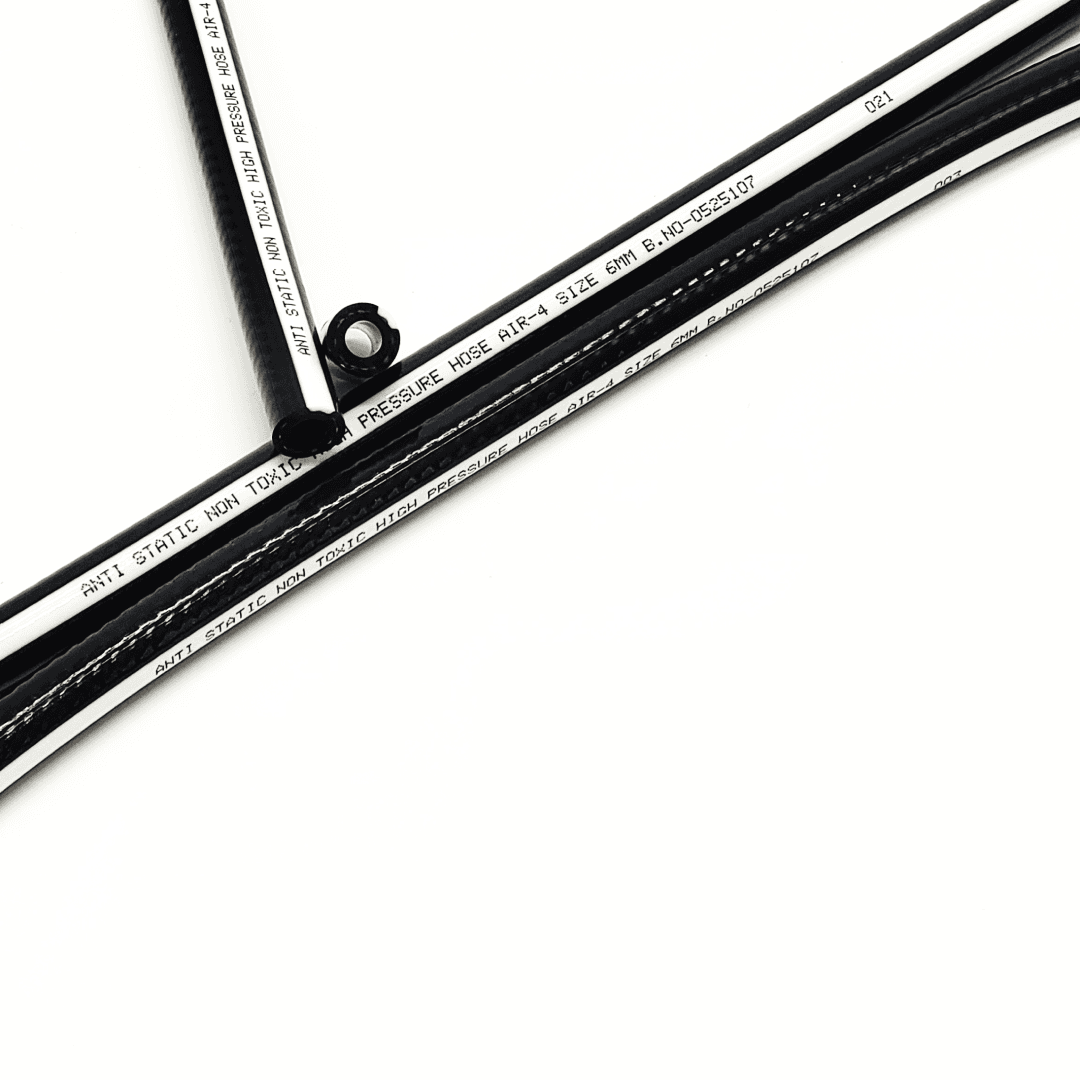

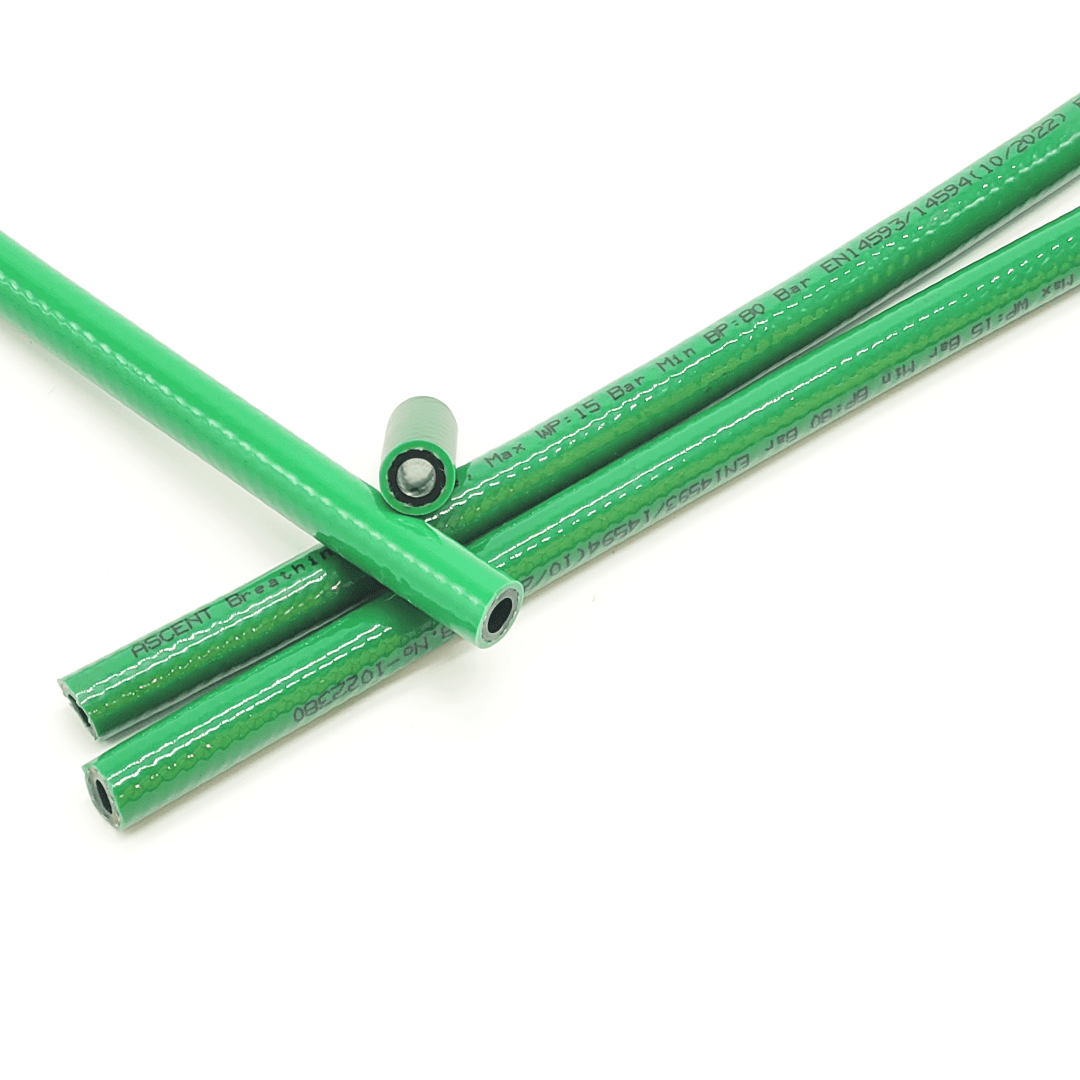

Anti-Static Medical Gas Hose, designed specifically for Medical Gas Pipeline Systems (MGPS) in hospitals, clinics, and healthcare facilities. Manufactured from phthalate free plasticized PVC, this hose ensures safe and reliable gas delivery for a range of medical applications.
Key Features
Anti-static properties: Electrical resistance between inside and outside surface ranges from 1 x 10⁹ Ω to 1 x 10¹¹ Ω
Reinforced with high-strength synthetic yarn for enhanced pressure resistance and durability
Flexible across all weather conditions: Operating temperature range -10°C to +60°C.

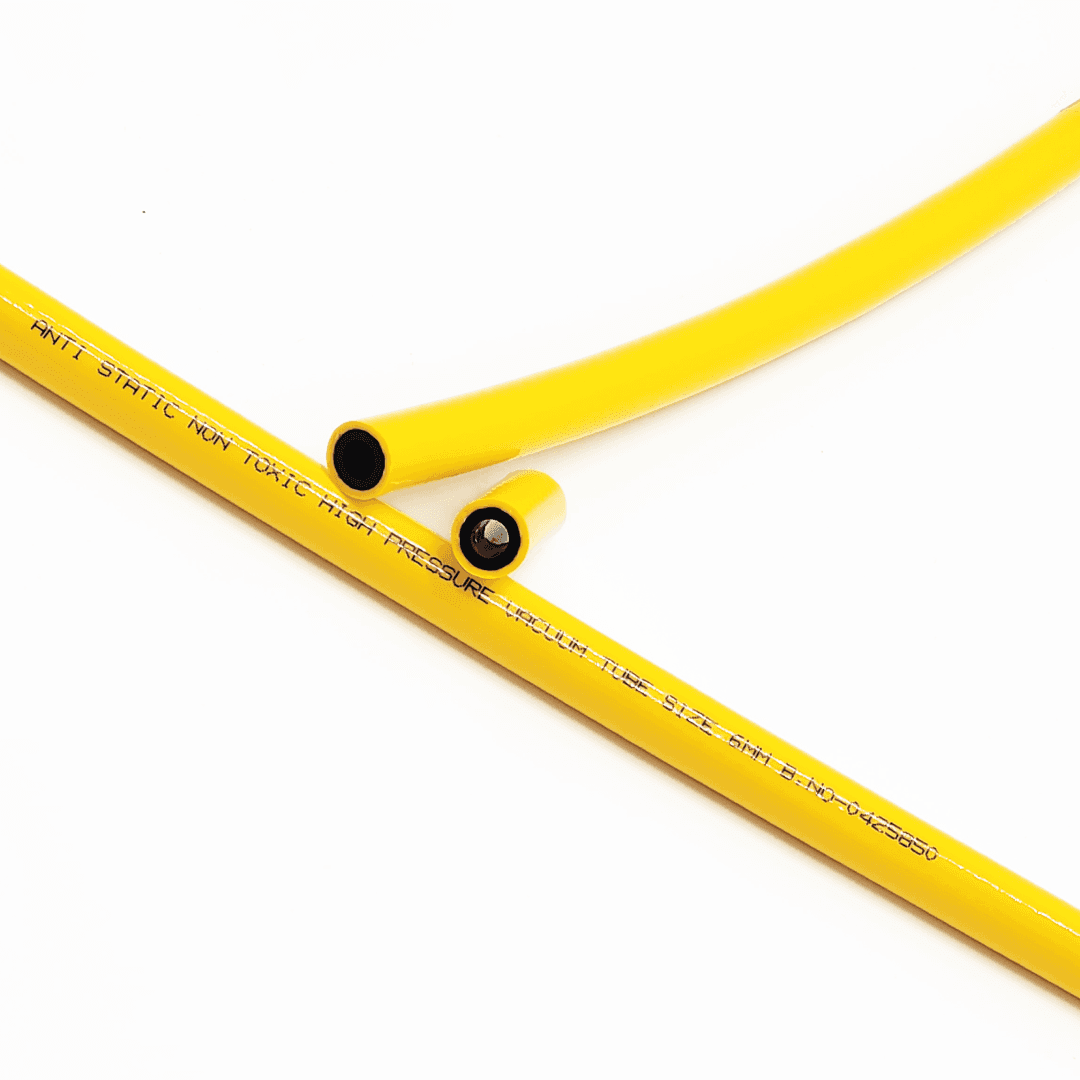

Wayhose Anti-Static hose comes in all standard sizes and is suitable for Oxygen, Vacuum, Nitrous Oxide, Carbon dioxide, Air and AGSS Gas in respective colors.
Anti-Static treated PVC
Code
Size (mm)
Working Pressure
Bursting Pressure
ANT0612
6 x 12.5
15
60
*Pressure Rating unit = Bar

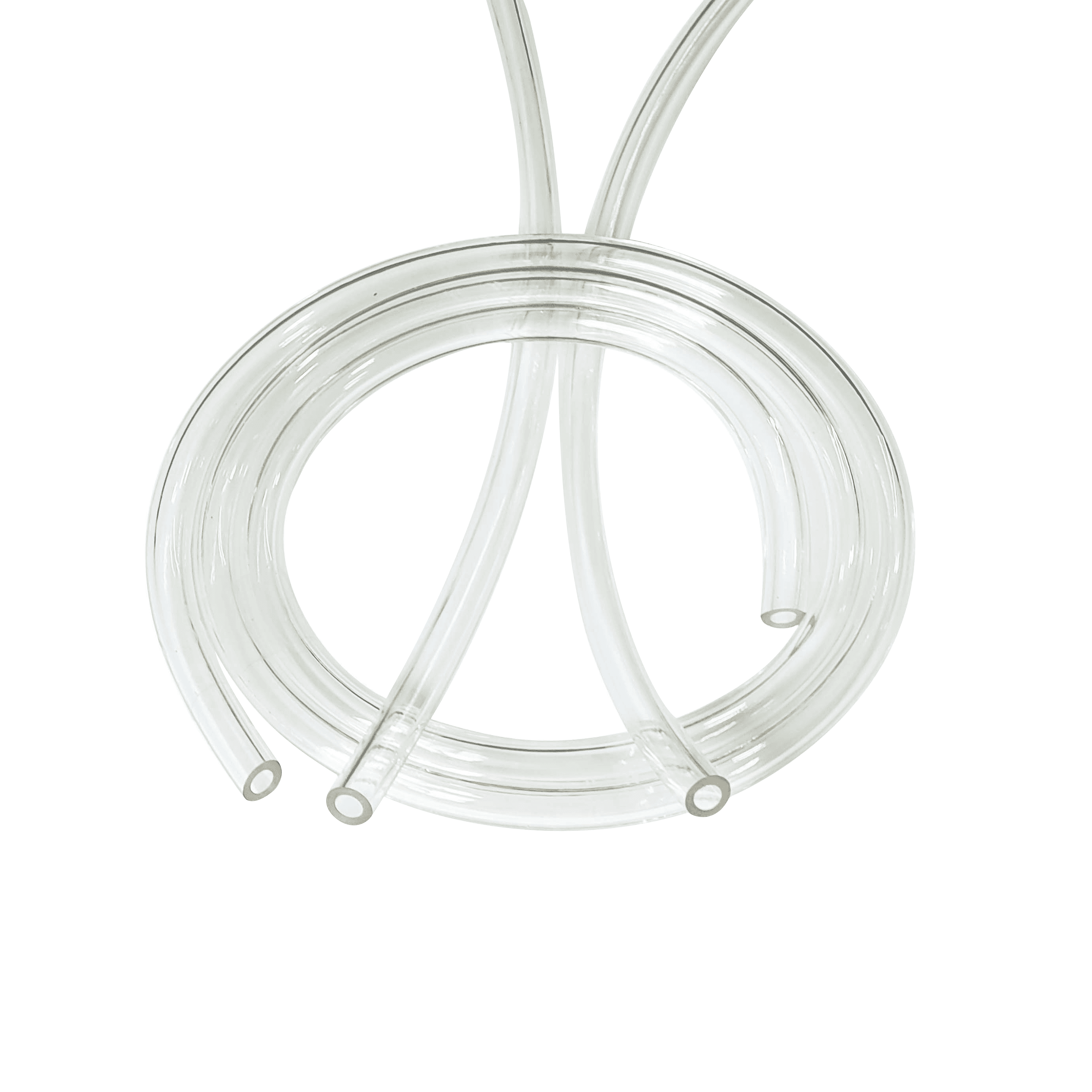

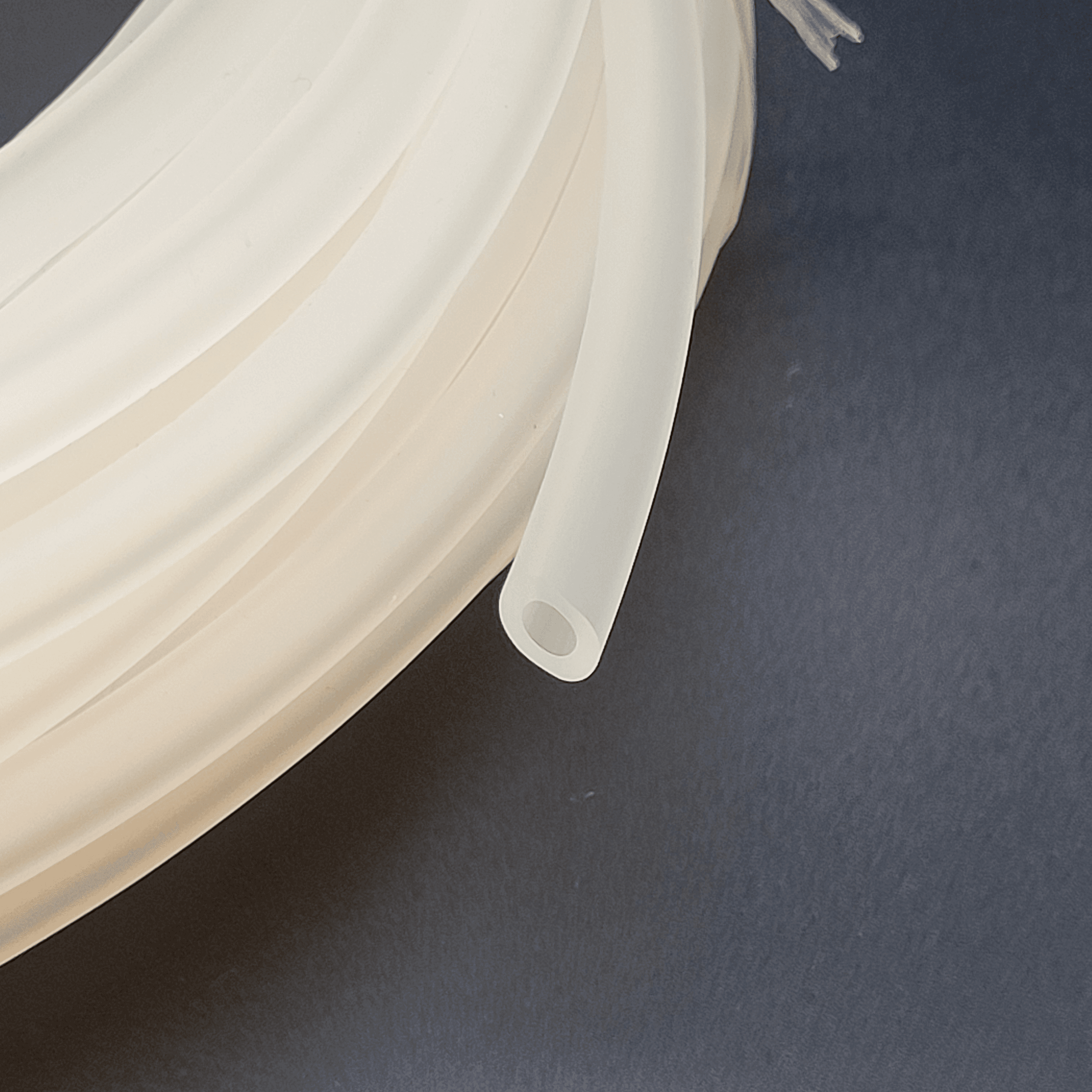

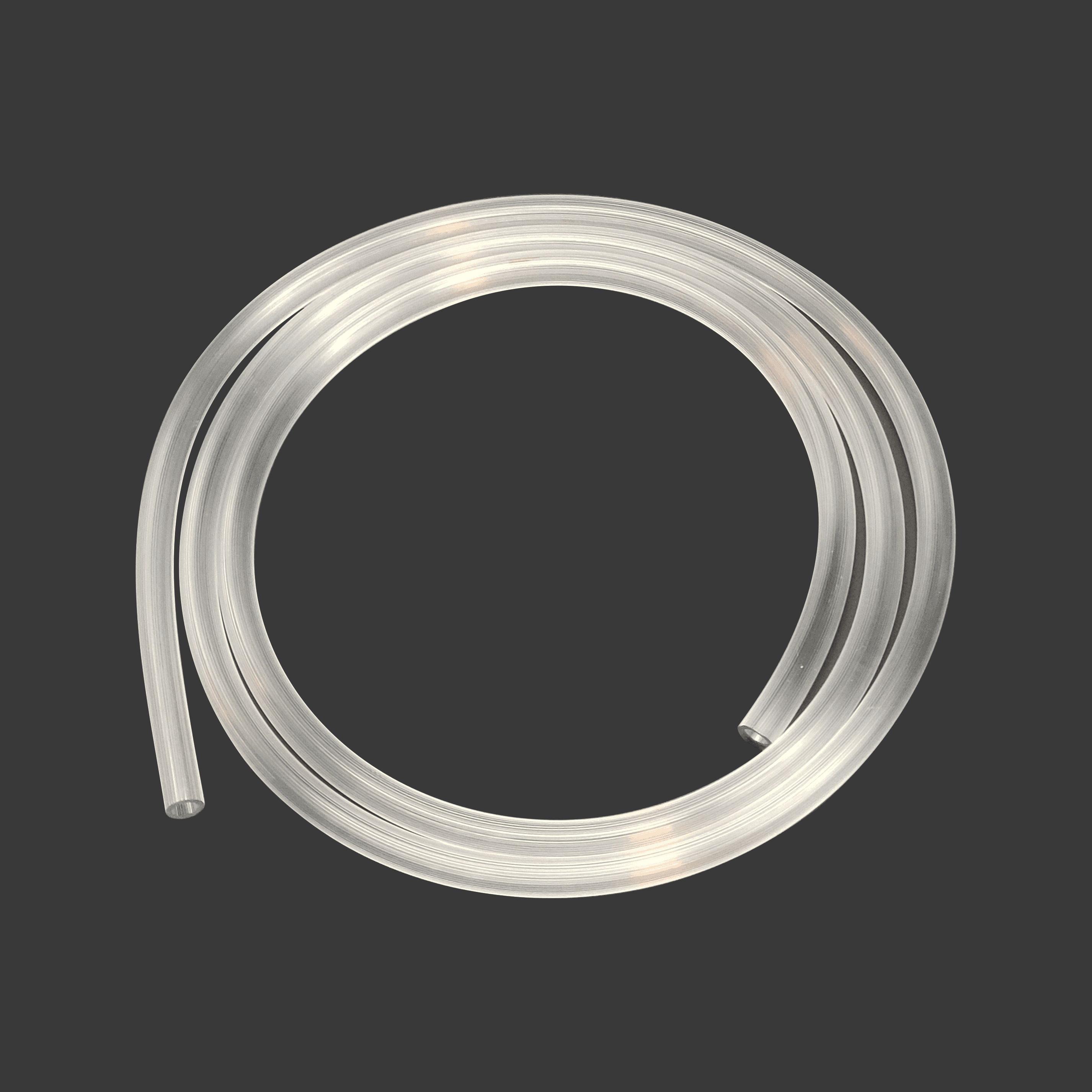

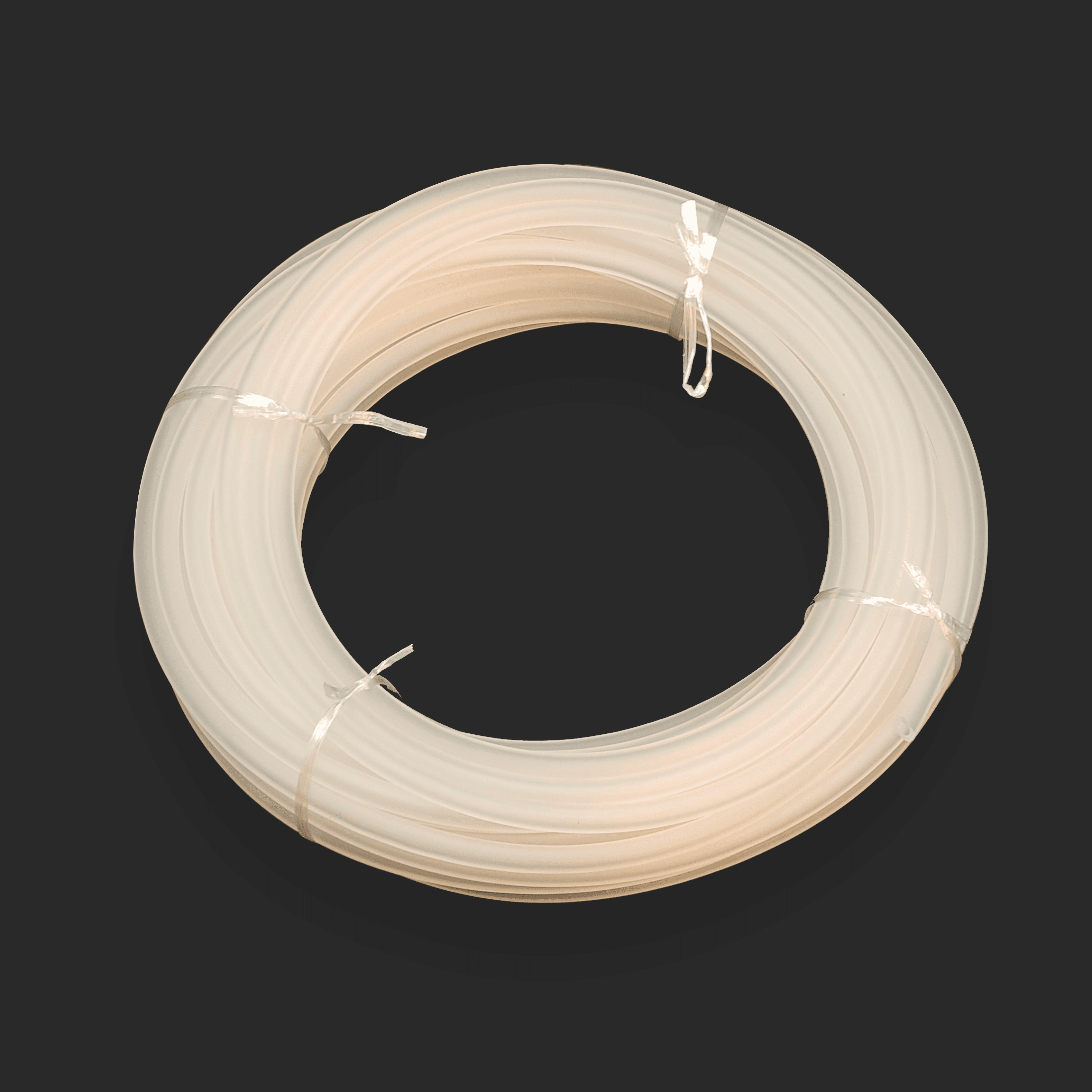

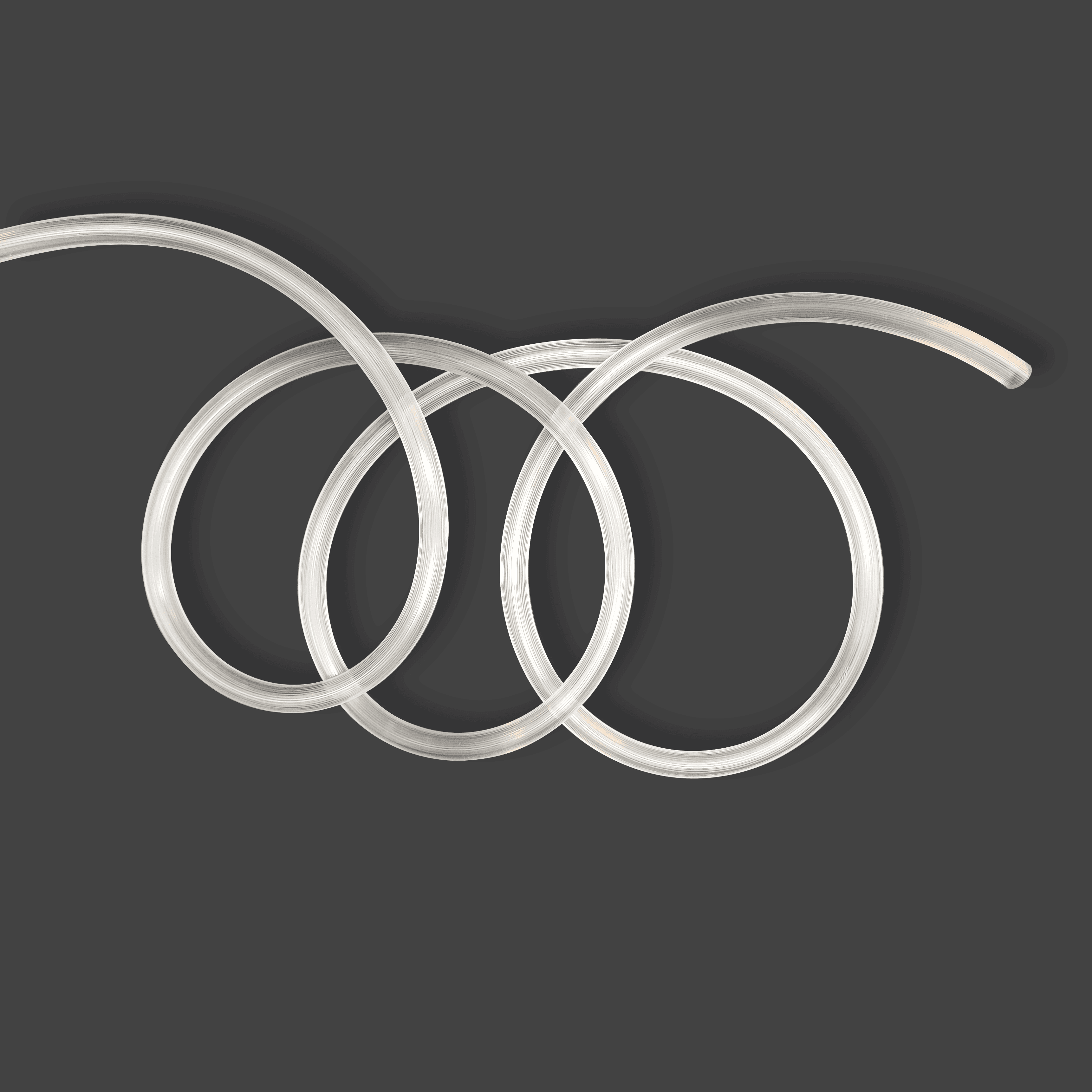

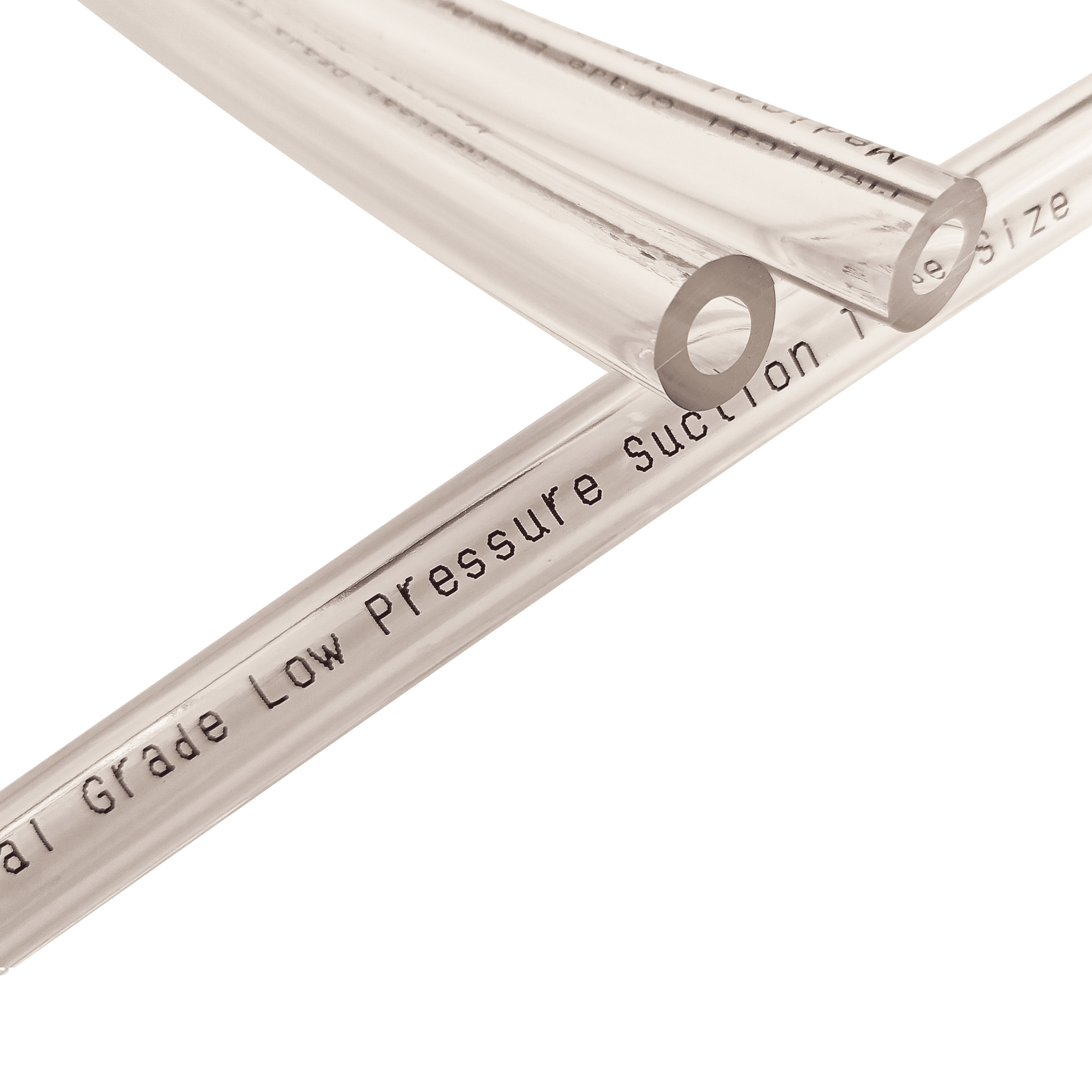

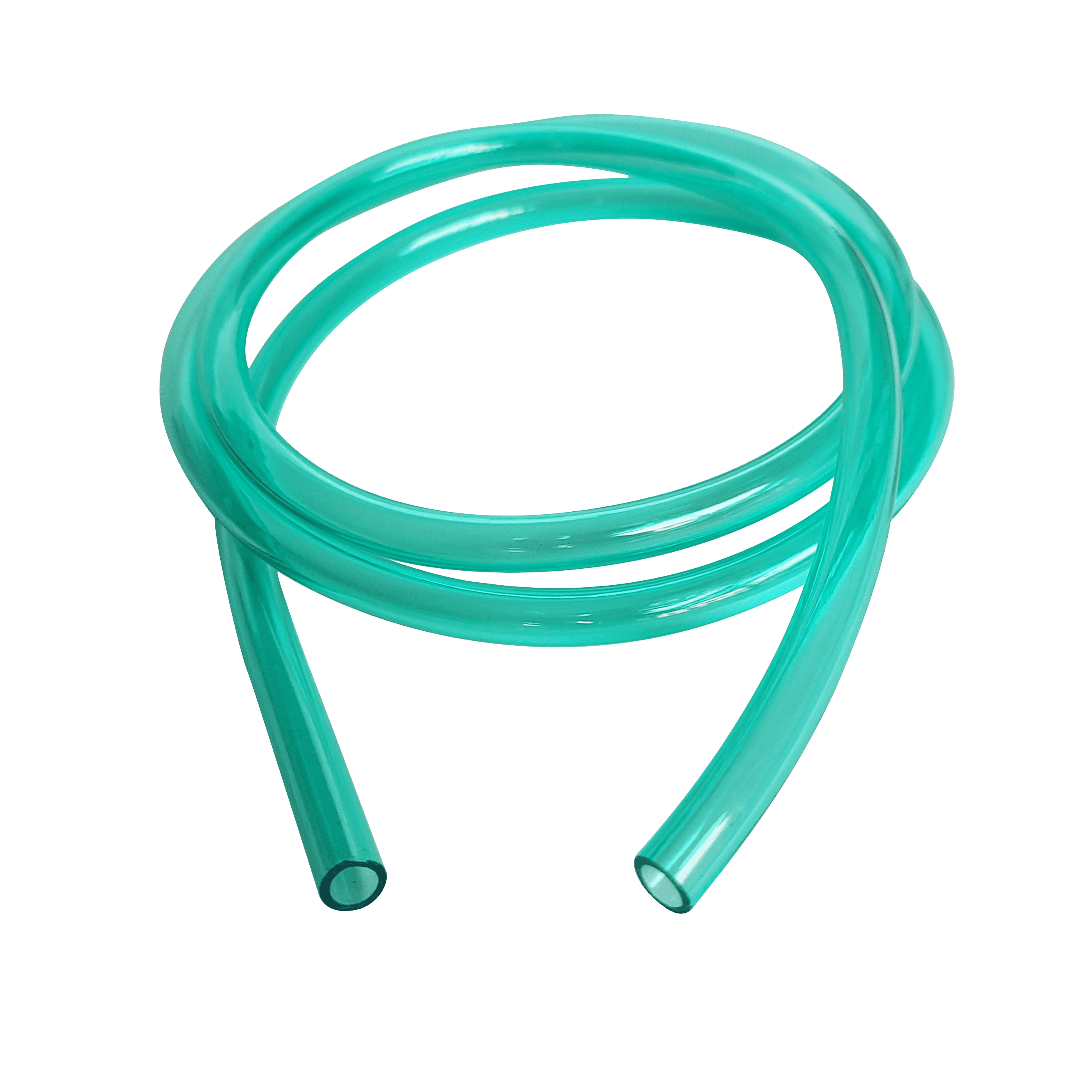

Polymeric tubes find an important role in medical equipments for the transfer of medicines through cannulas and sometimes critical bodily fluids such as oxygen in masks, blood in dialysis machines and more.

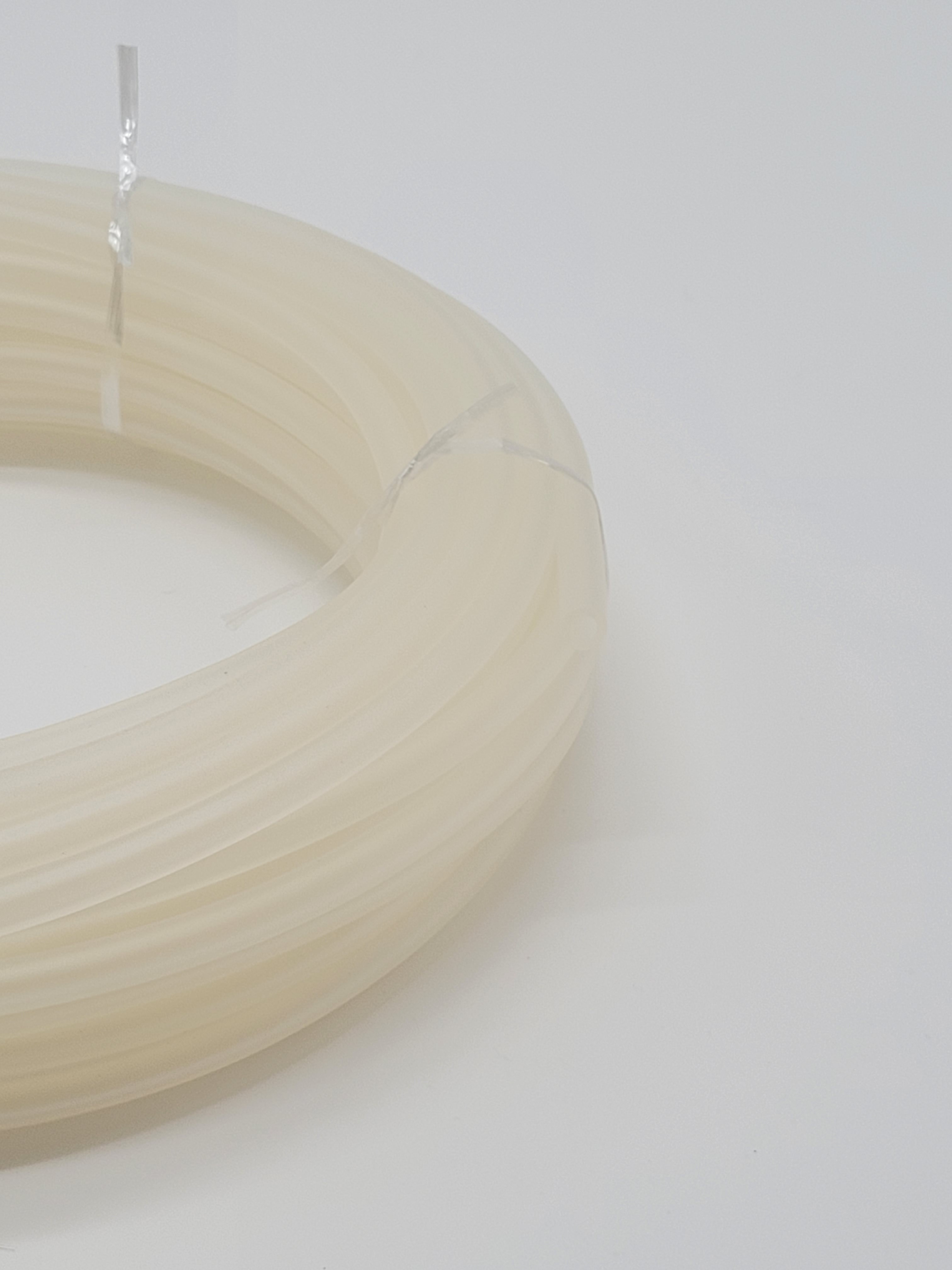

At wayhose we provide special attention to manufacture of Medical tubes only on custom demand basis in a sterilized environment with utmost precision. The plasticizer used are phthalate free and medical grade.
<
>
Argon Gas Welding Torch, Mig Welding Torch, Tig Welding Torch uses various flexible tubes. These tubes need to be high temp resistant and highly flexible for the flow of any gaseous fluid or to act as a cover for any other cable operation. Wayhose tubes for different welding torches are made to suit the process condition like temp, pressure etc. Numerous combinations of Inner x Outer diameters with or without yarn reinforcement are made as per the specifications in demand. Some of the generally used tubes and hoses for welding torches are listed below. These are made of High Temp PVC or Polyurethene
Numerous Tubes, Hoses and Cables are needed to be placed laterally in a flexible conduit which should be light weight. These are called welding sleeves. Wayhose Sleeves used in welding torch application are made from TPR and TPV raw materilas. So these sleves are very light weight, highly flexible and durable at high & low temp. They never get torn and thus need very low replacement frequency. The surface can be plain or ribbed black matte. These sleeves are also made as per specifications in demand.
Numerous Tubes, Hoses and Cables are needed to be placed laterally in a flexible conduit which should be light weight. These are called welding sleeves. Wayhose Sleeves used in welding torch application are made from TPR and TPV raw materilas. So these sleves are very light weight, highly flexible and durable at high & low temp. They never get torn and thus need very low replacement frequency. The surface can be plain or ribbed black matte. These sleeves are also made as per specifications in demand.
