Wayhose is certified for
IS: 12585 : 2023 | ISO: 6224 : 2011

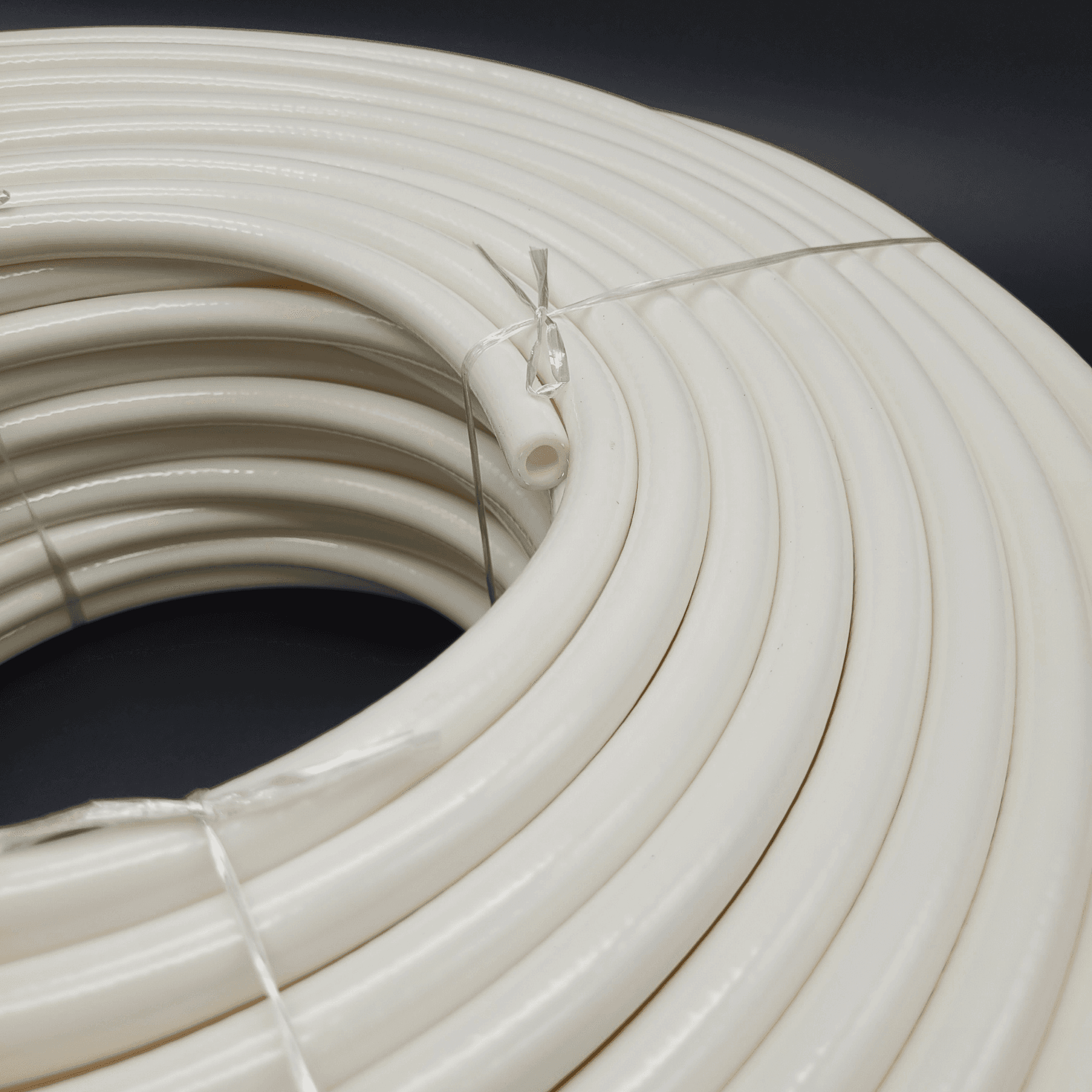

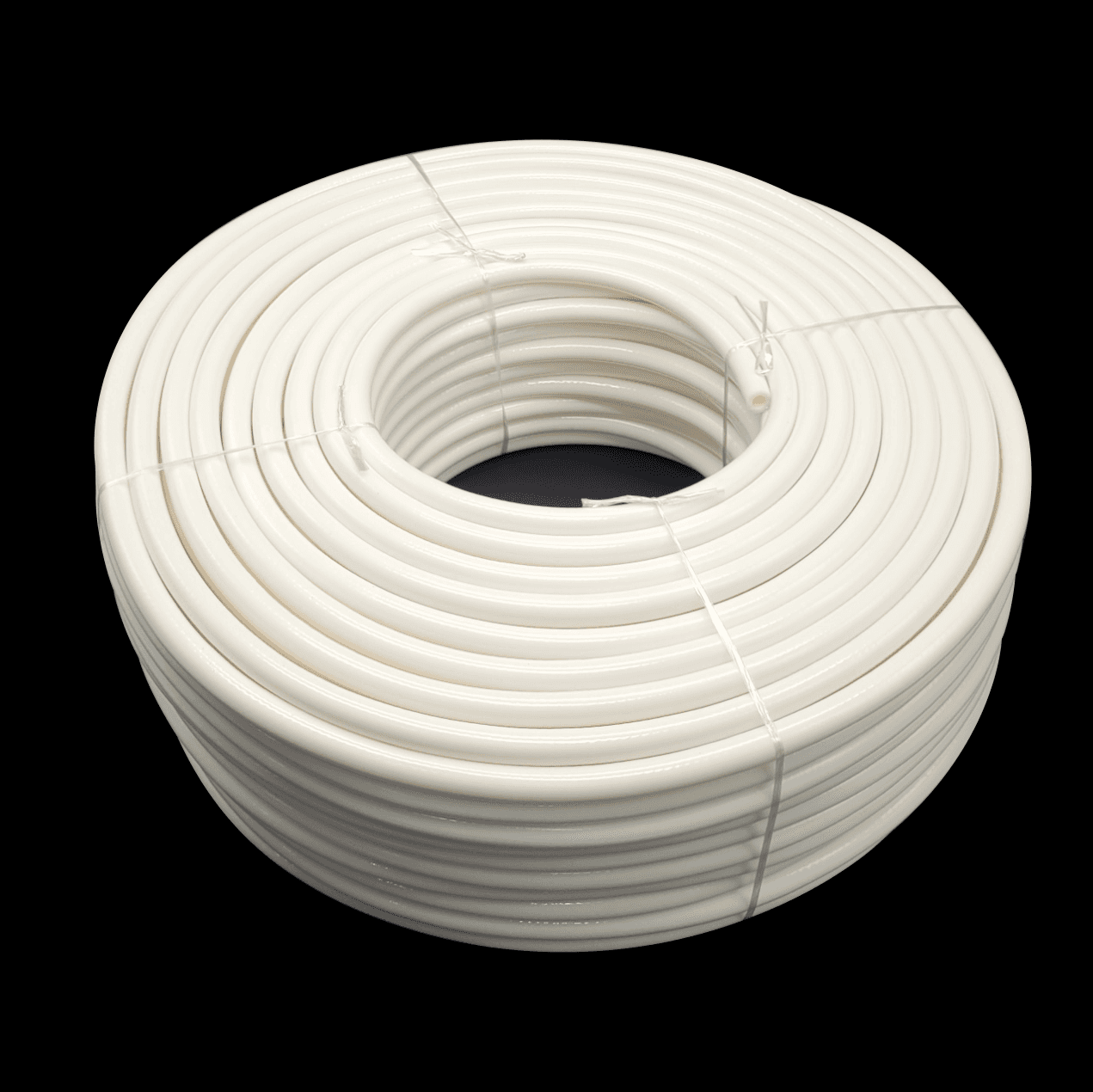

Manufactured out of soft plasticized PVC, designed in non-fading Ivory color and a light weight composition, Wayhose easily reaches far reaching connections and sharp bends.
Wayhose holds a balance of high temperature stability and low temperature flexibility, a pre-requisite for cool cozy ambient experience while you take a hot or cool shower.
PVC
Code
Size (mm)
Working Pressure
Bursting Pressure
CRS01SP
8.5 x 14.5
40
160
CRS05SP
10 x 16
40
160
CRS09SP
12.5 x 19
40
160
CRS10SP
19.5 x 28
30
120
CRS11SP
25 x 34
35
120
*Pressure Rating unit = Bar
Wayhose is certified for
IS: 12585 : 2023 | ISO: 6224 : 2011

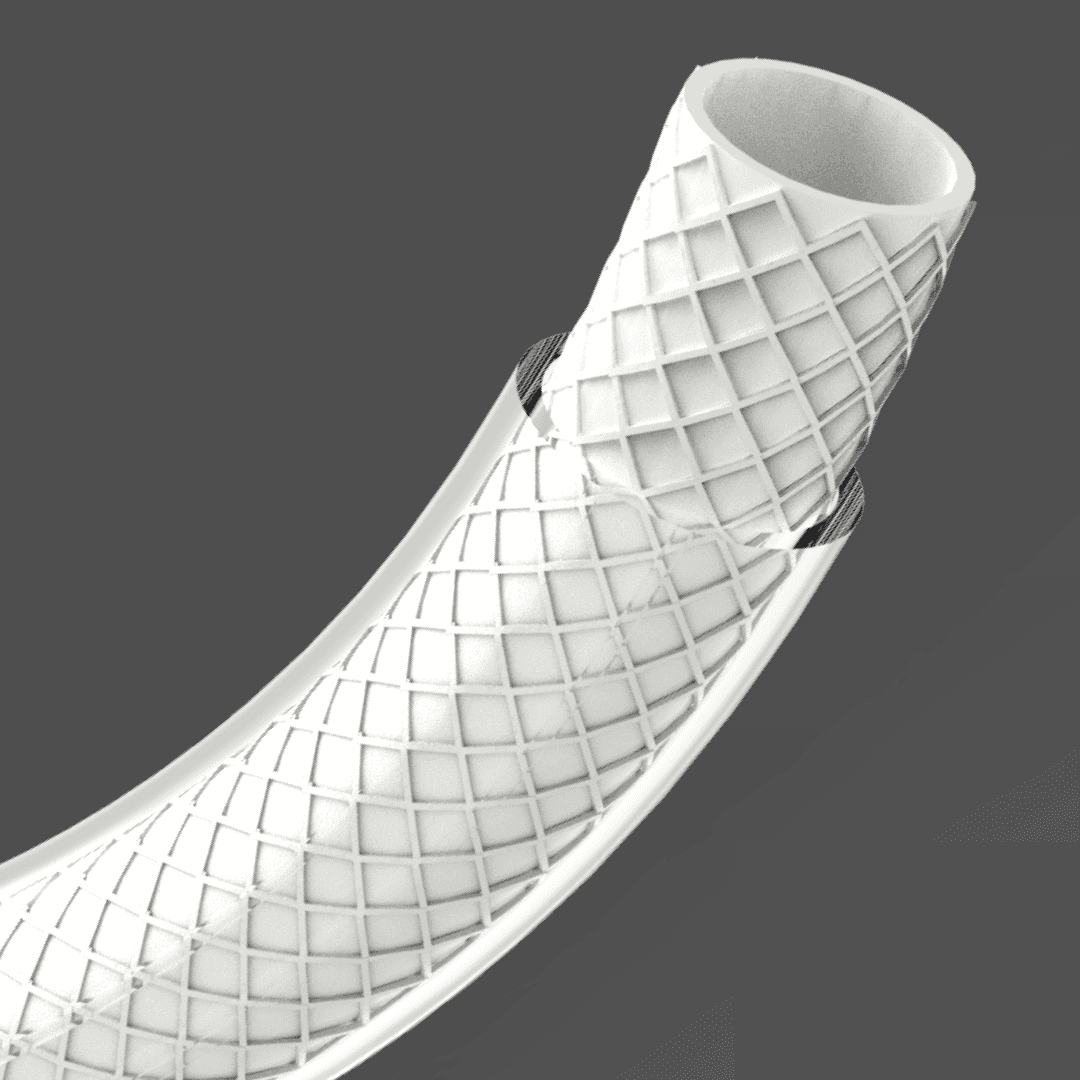

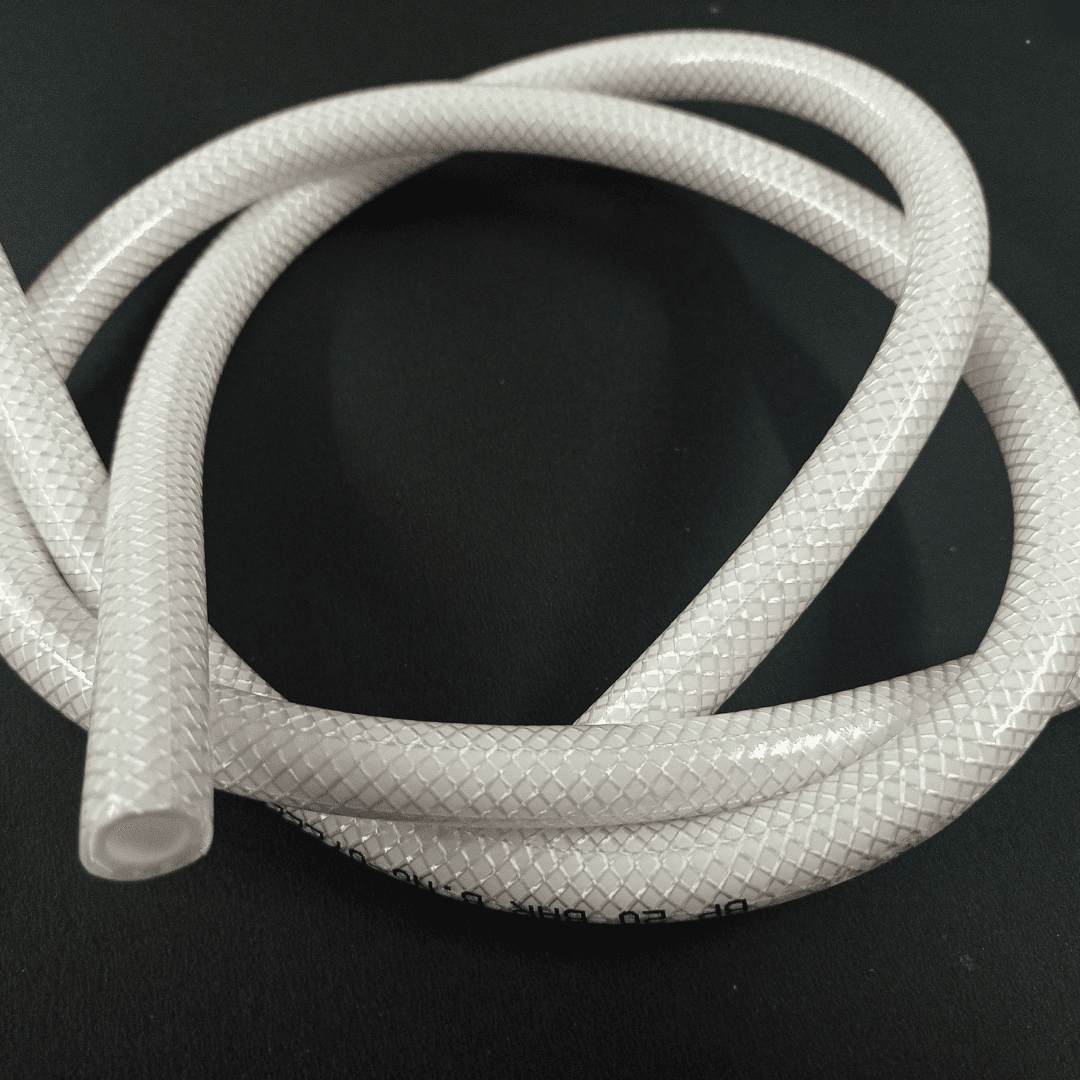

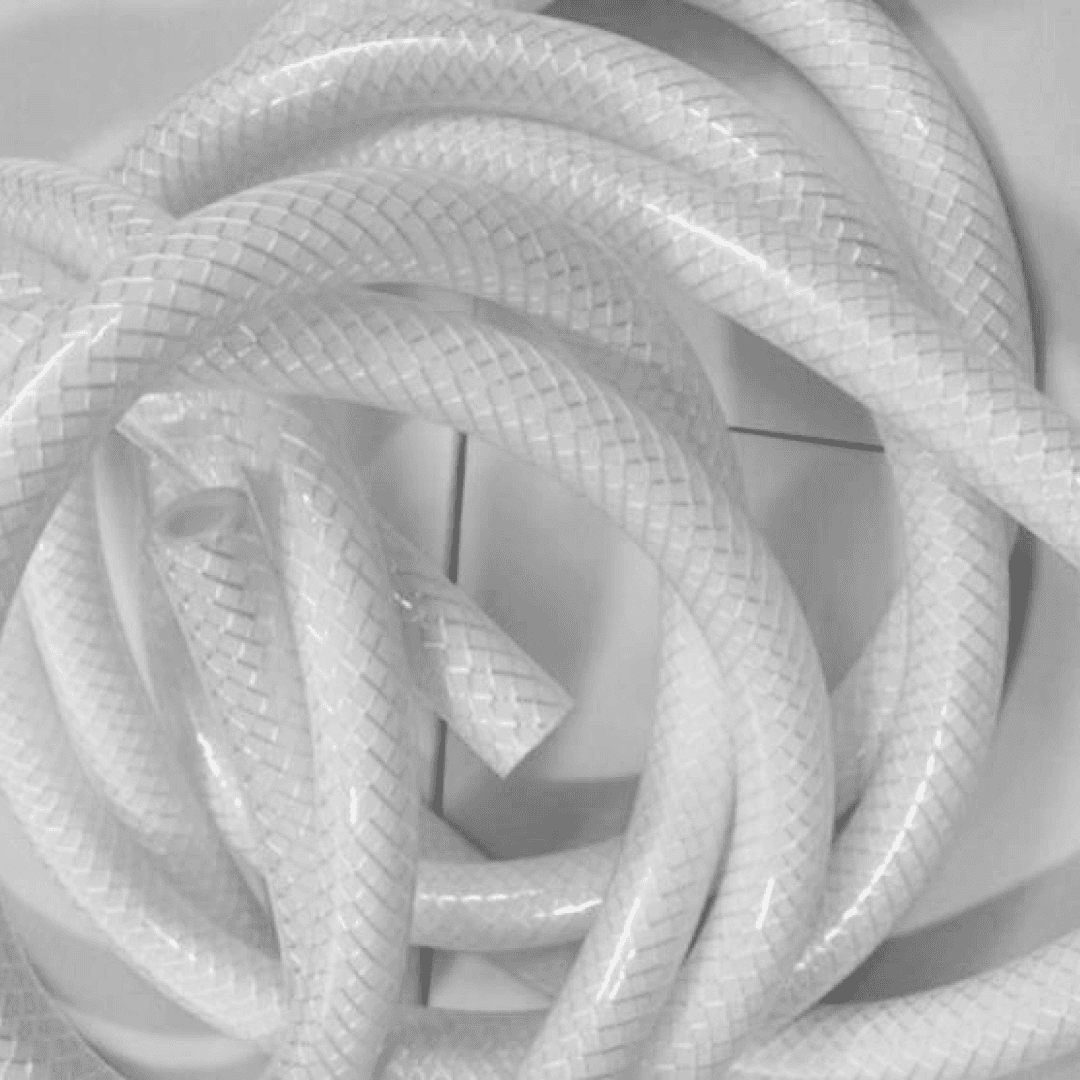

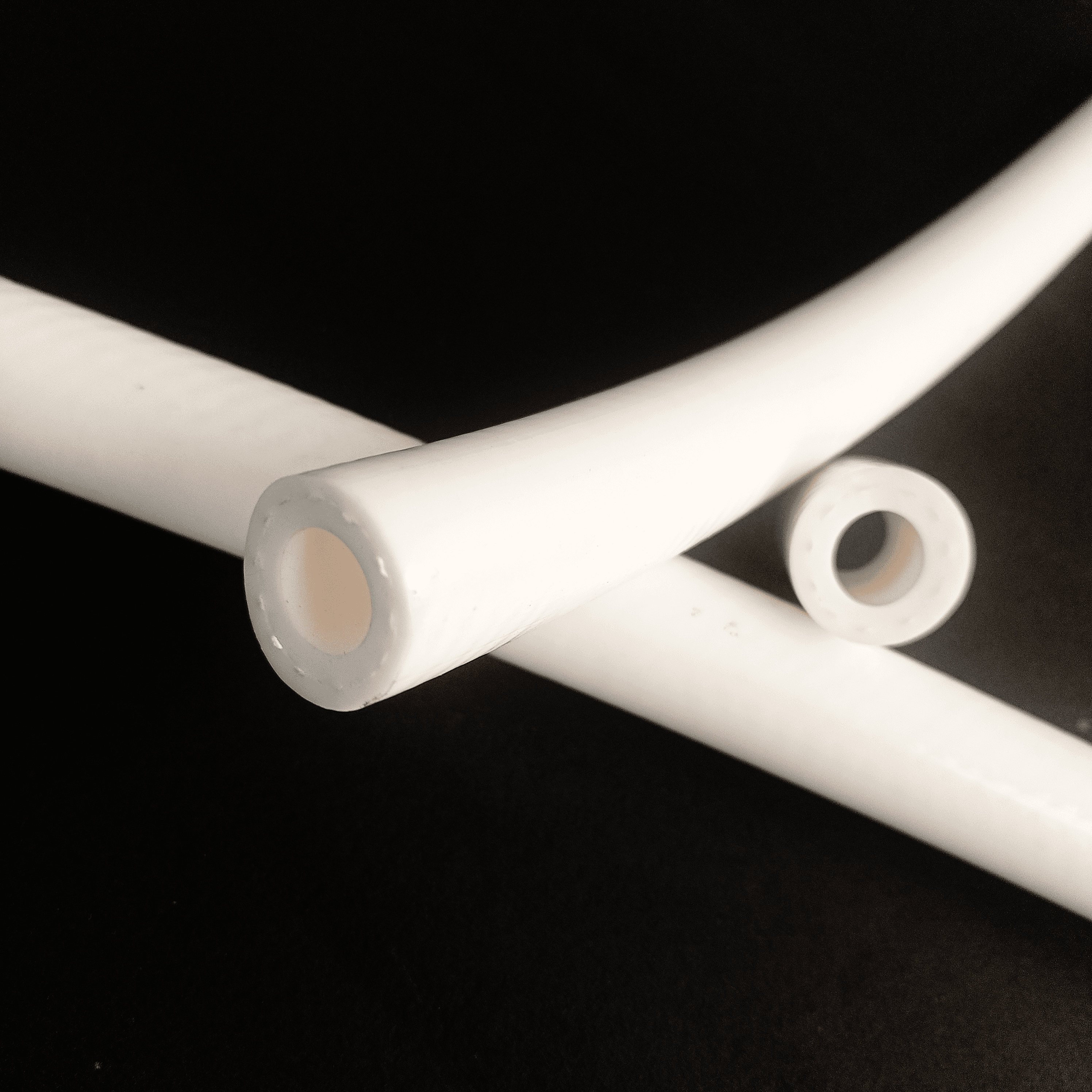

PVC hose for water connections, offered by Wayhose is composed of two layers of high tensile strength PVC with synthetic yarn reinforcement.
PVC
Code
Size (mm)
Working Pressure
Bursting Pressure
SPR01N
8.5 x 14.5
30
120
SPR01
8 x 16
40
160
SPR05N
10 x 17
30
120
SPR05
10 x 18
40
160
SPR09
12.5 x 20
30
120
SPR10
19.5 x 28.5
25
100
SPR11
25 x 35
25
100
*Pressure Rating unit = Bar
<
>
Wayhose is certified for
IS: 12585 : 2023 | ISO: 6224 : 2011

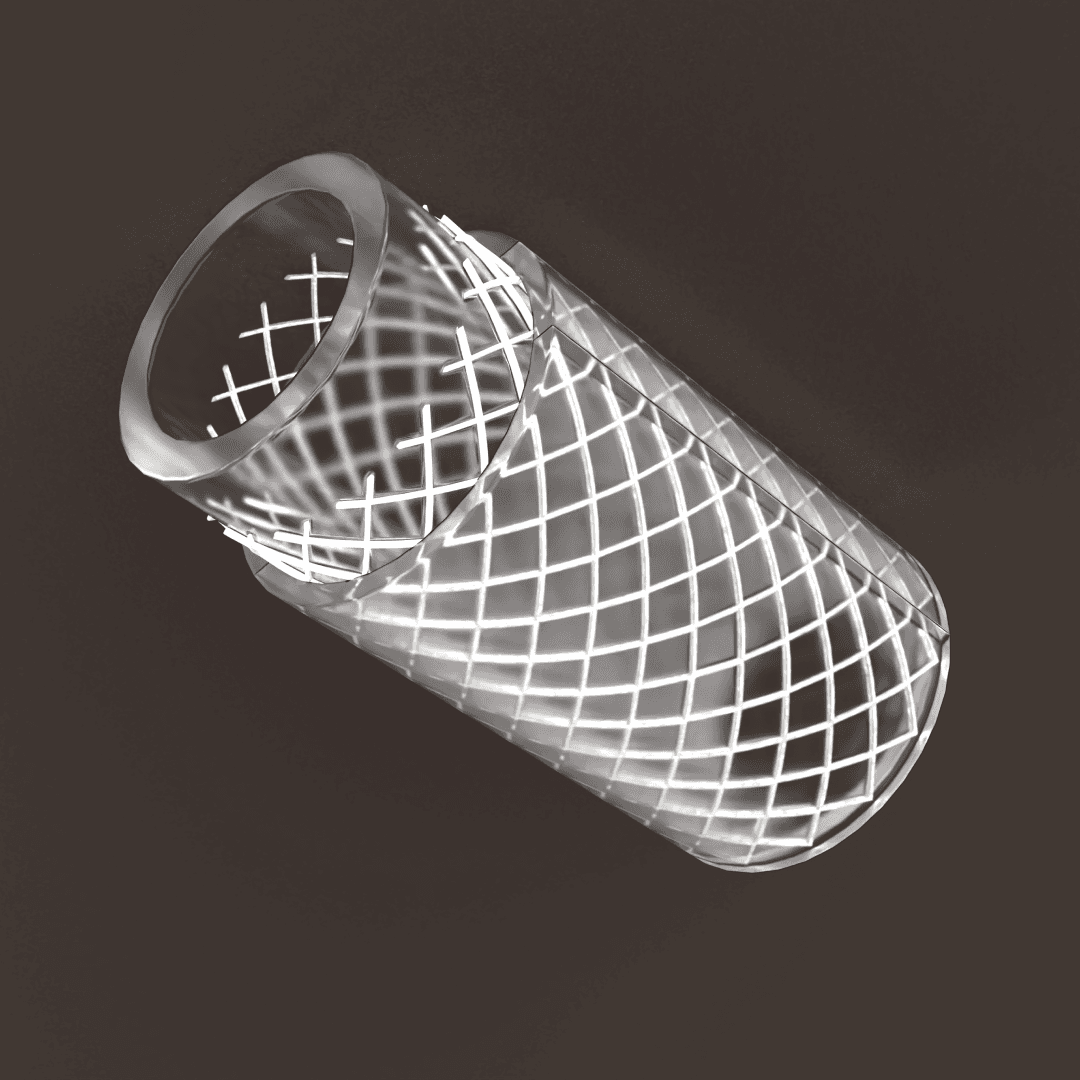

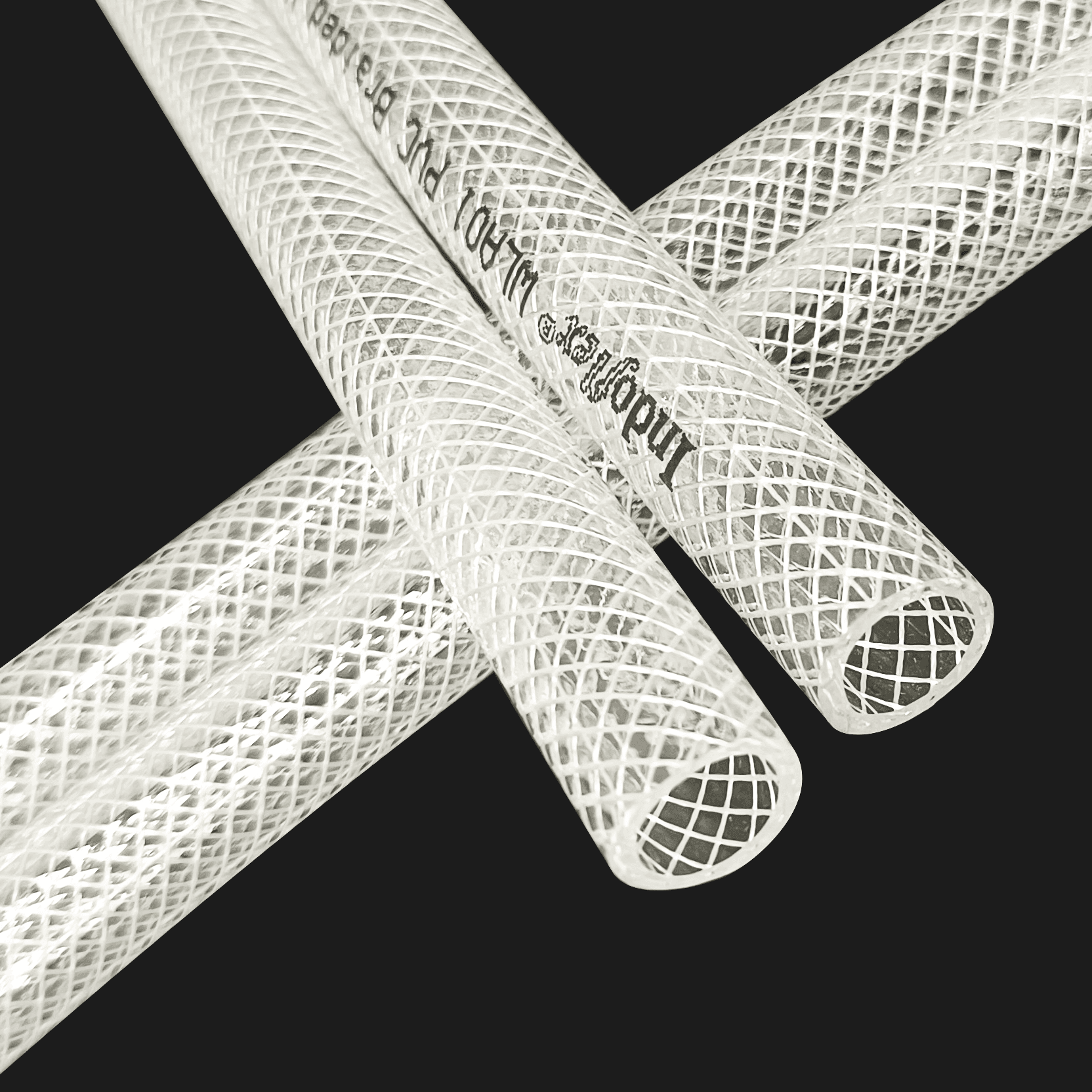

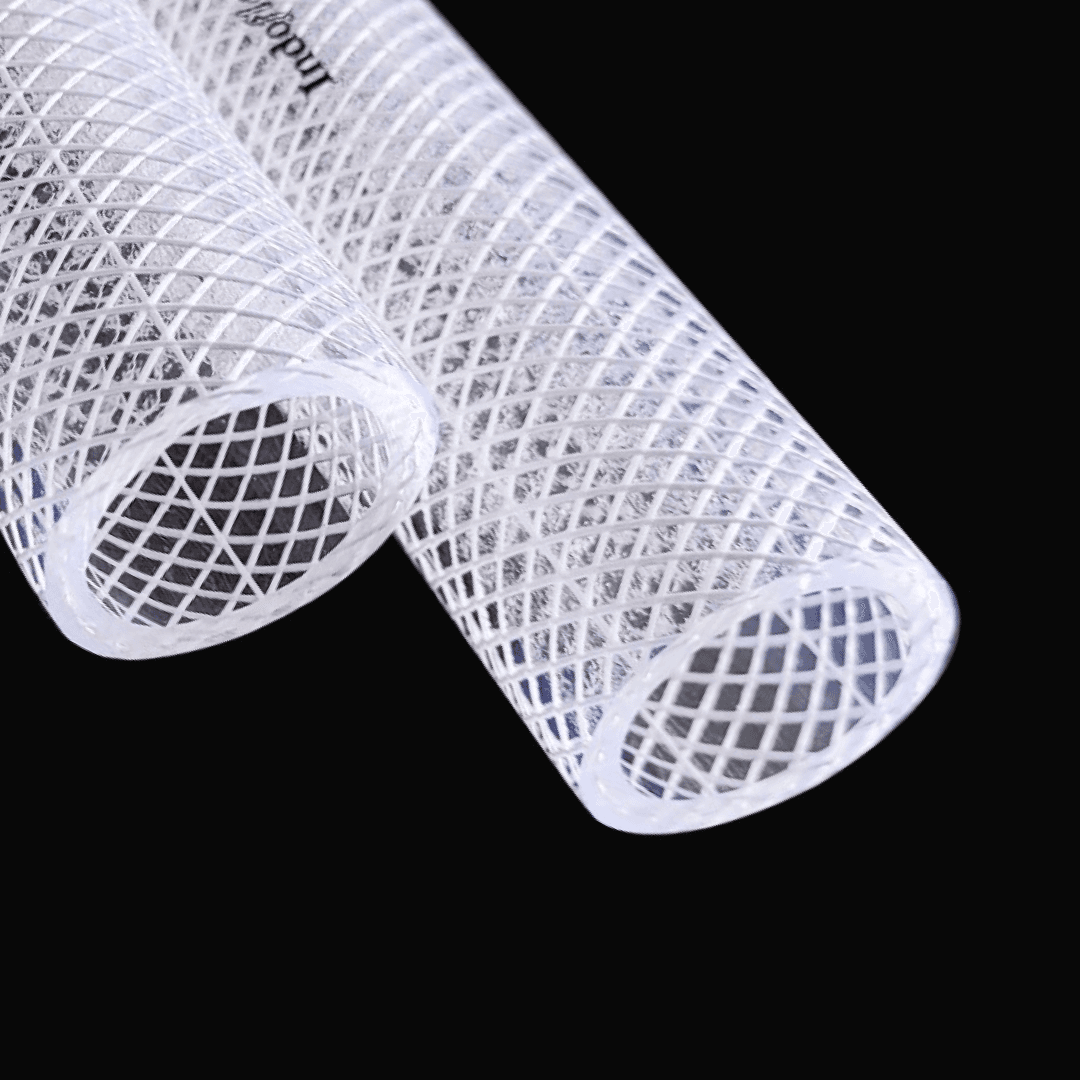

Transparent braided hose by wayhose is designed to carry waste water out of washing machines, air conditioners and other industrial equipments in an uninterrupted leak proof hygienic manner.
Available in both transparent and opaque finishes, wayhose remains unaffected by mud, slurry, oils and harsh weather conditions for a long time.
PVC
Code
Size (mm)
Working Pressure
Bursting Pressure
WLB01
12 x 17
10
40
WLB02
19 x 25.5
10
40
WLB03
25 x 31
10
40
WLBO4
31 x 39.5
10
40
WLBO5
38 x 47
10
40
WLB06
50 x 60
10
40
*Pressure Rating unit = Bar
Wayhose is tested for
IS: 12585 : 2023 | ISO: 6224 : 2011

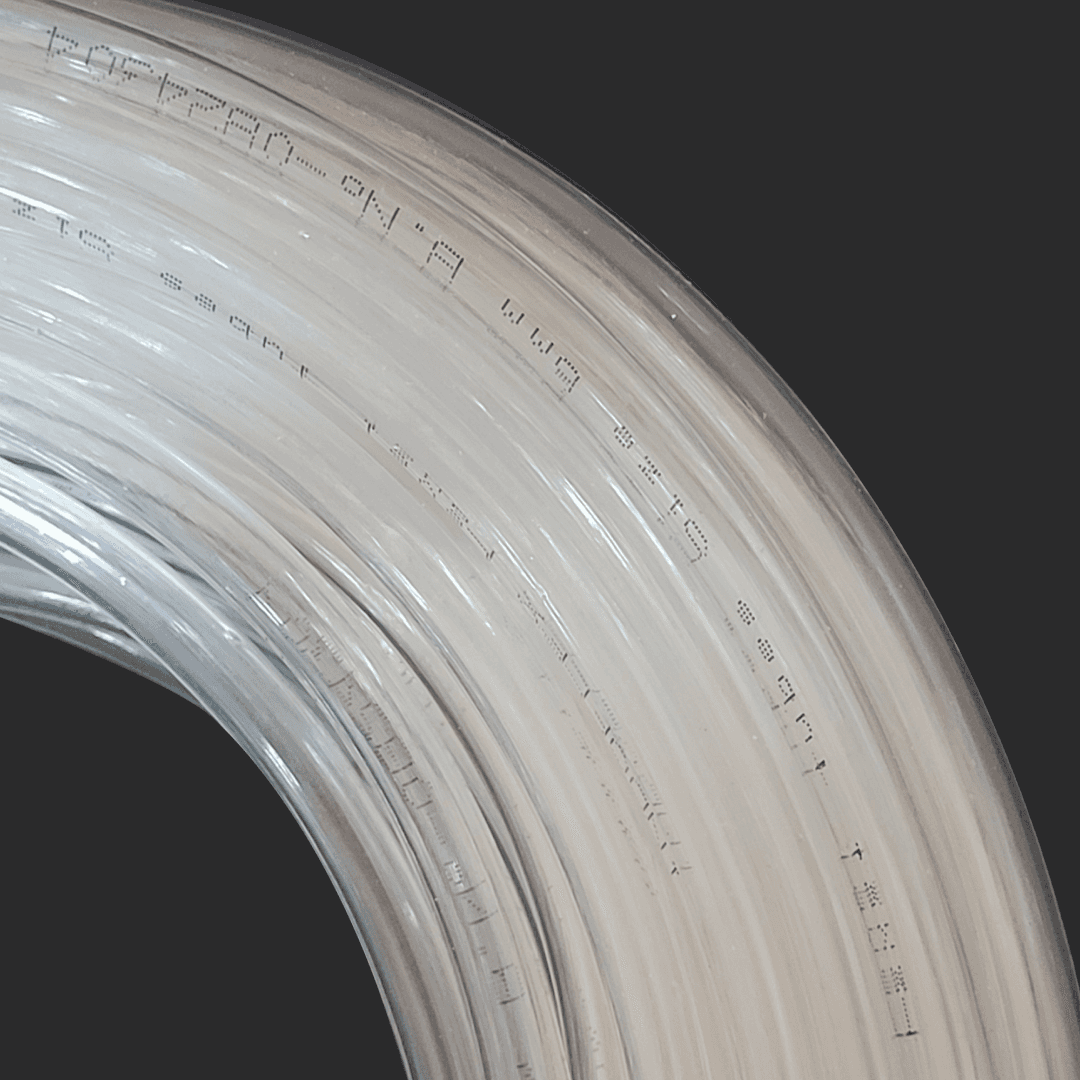

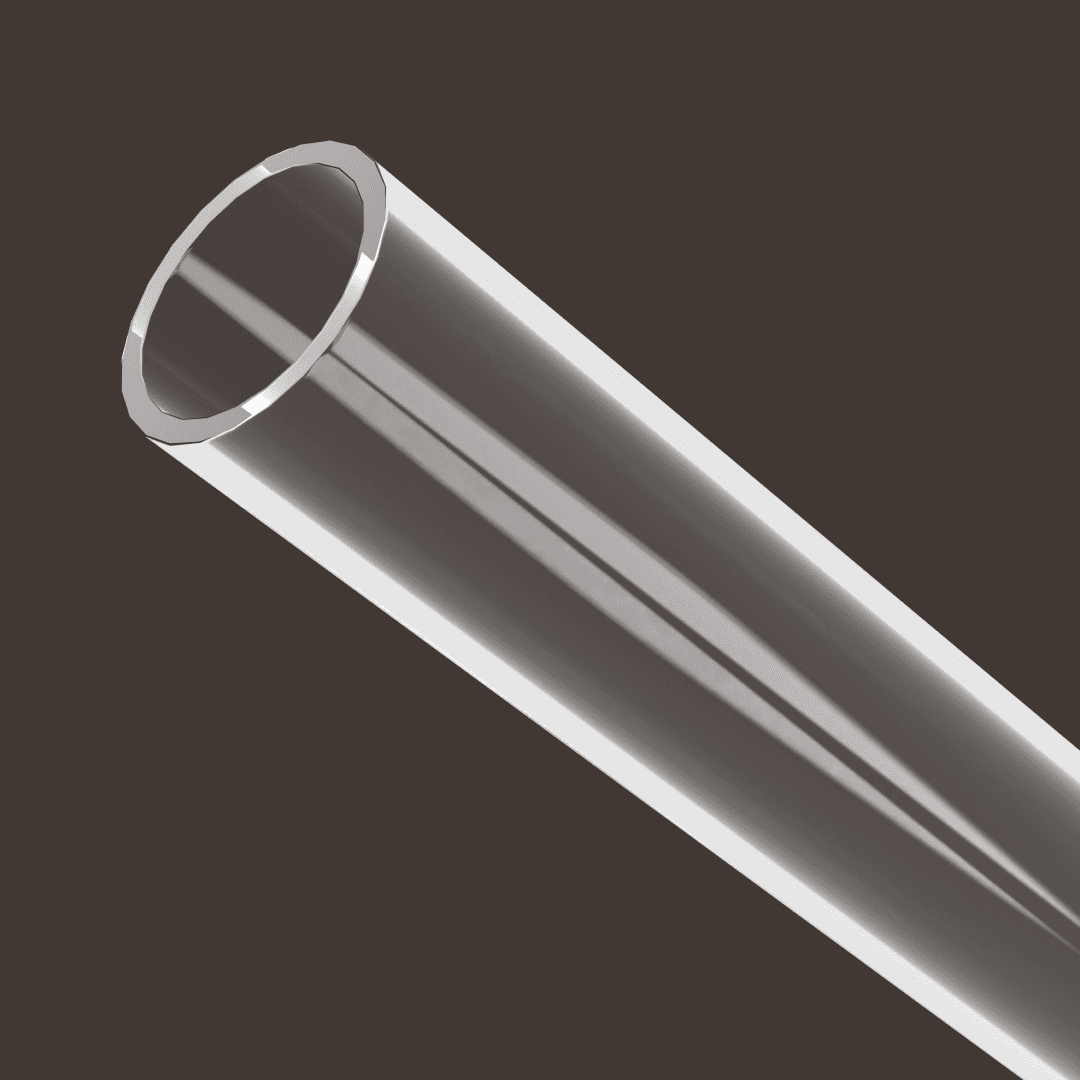

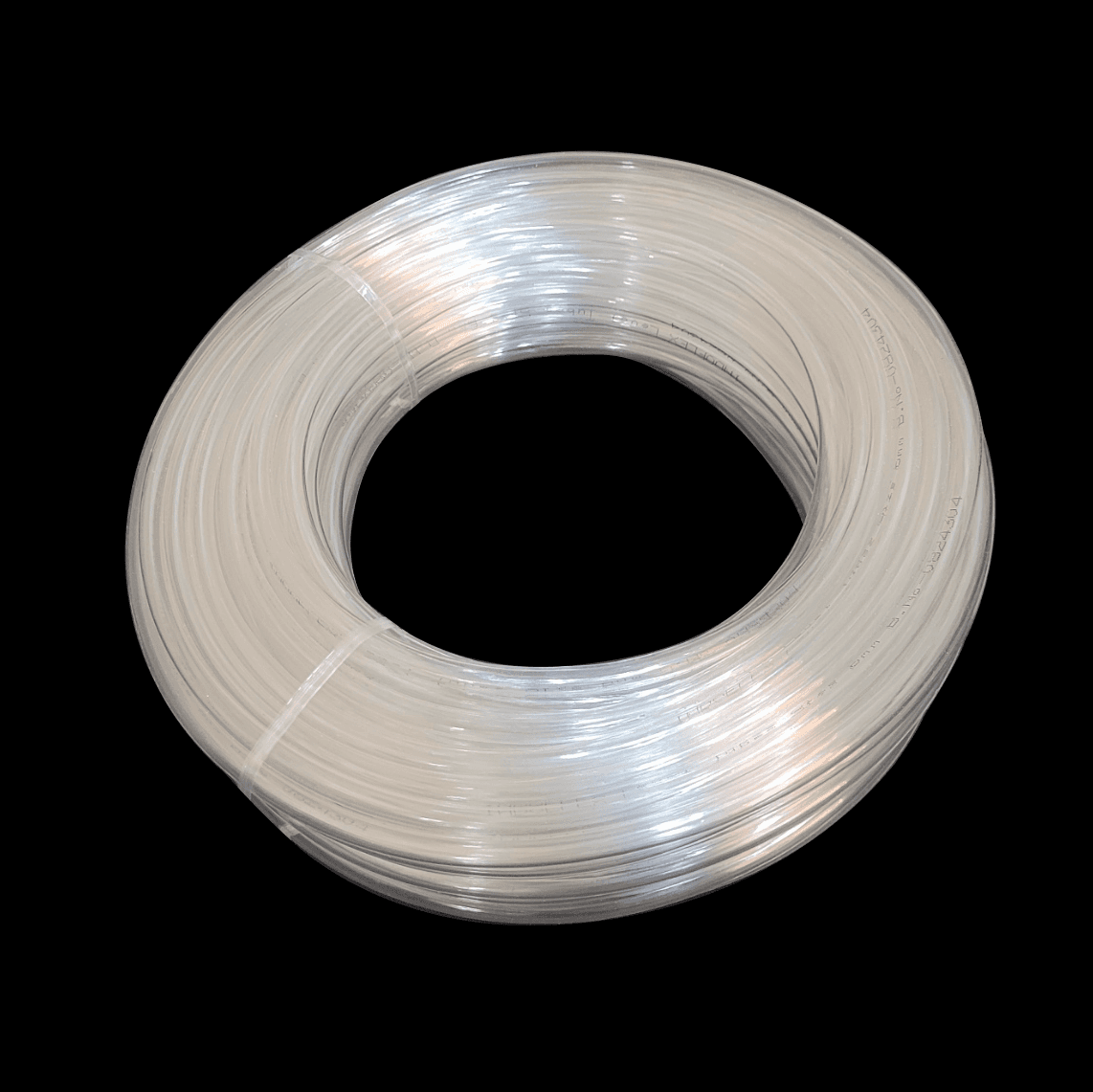

Made from high quality PVC raw materials, plasticized out of oil free and completely transparent plasticizers, PVC tubes offered by Wayhose hold some exceptional properties:
Crystal clear transparency
Appropriate to use as leveling pipes
Available in sizes 6mm, 8mm and 12mm
Light weight for easy handling
Uniformly round cross-section
PVC
Code
Bore (in)
Size (mm)
Length (m)
WTD07A
1/4
6
30
WTD07B
5/16
8
30
WTD07C
3/8
10
30
WTD07D
1/2
12.5
30
WTD07E
5/32
4
30
*Pressure Rating unit = Bar
