Wayhose is tested for
IS: 12585 | IS: 446 | IS: 444 | IS: 12492

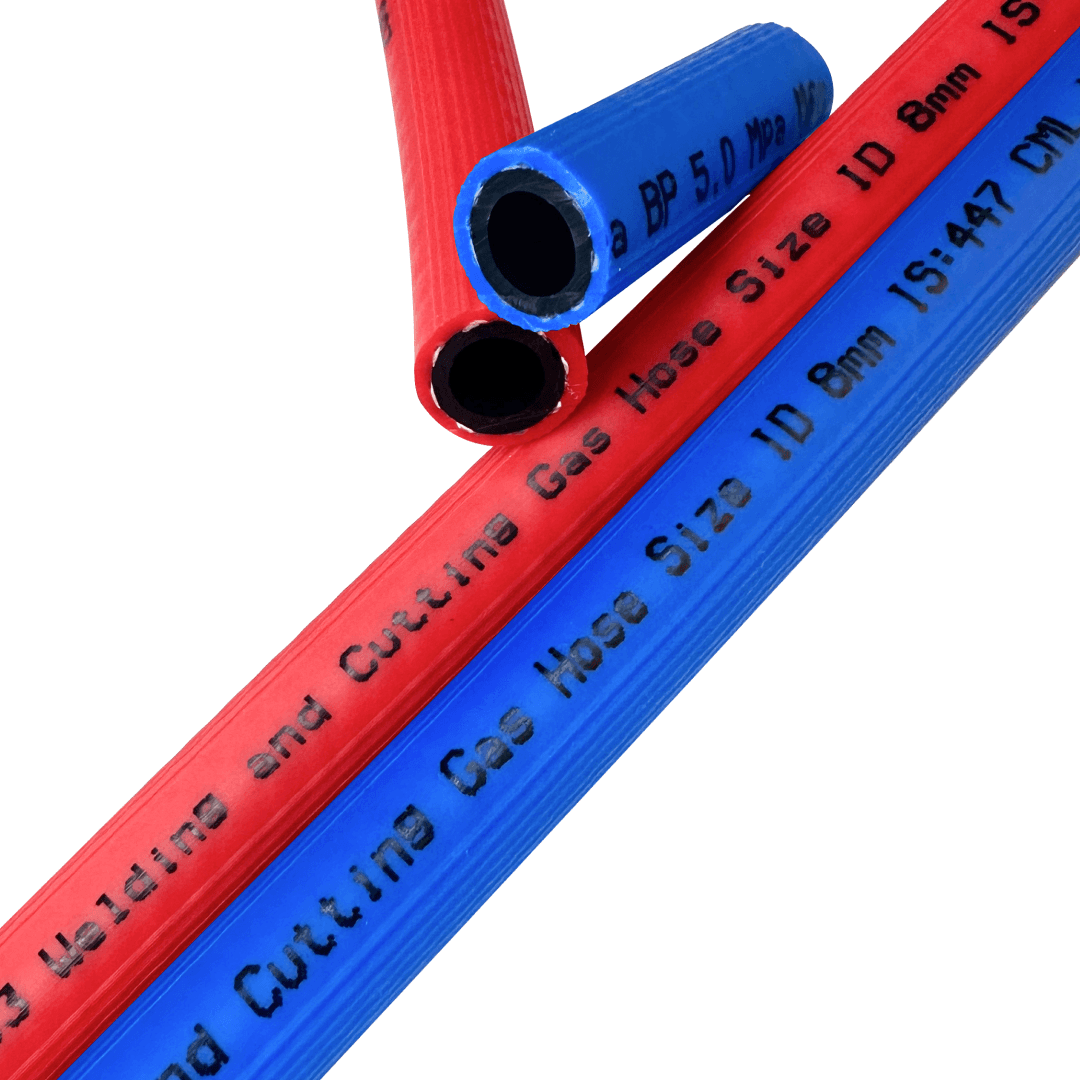

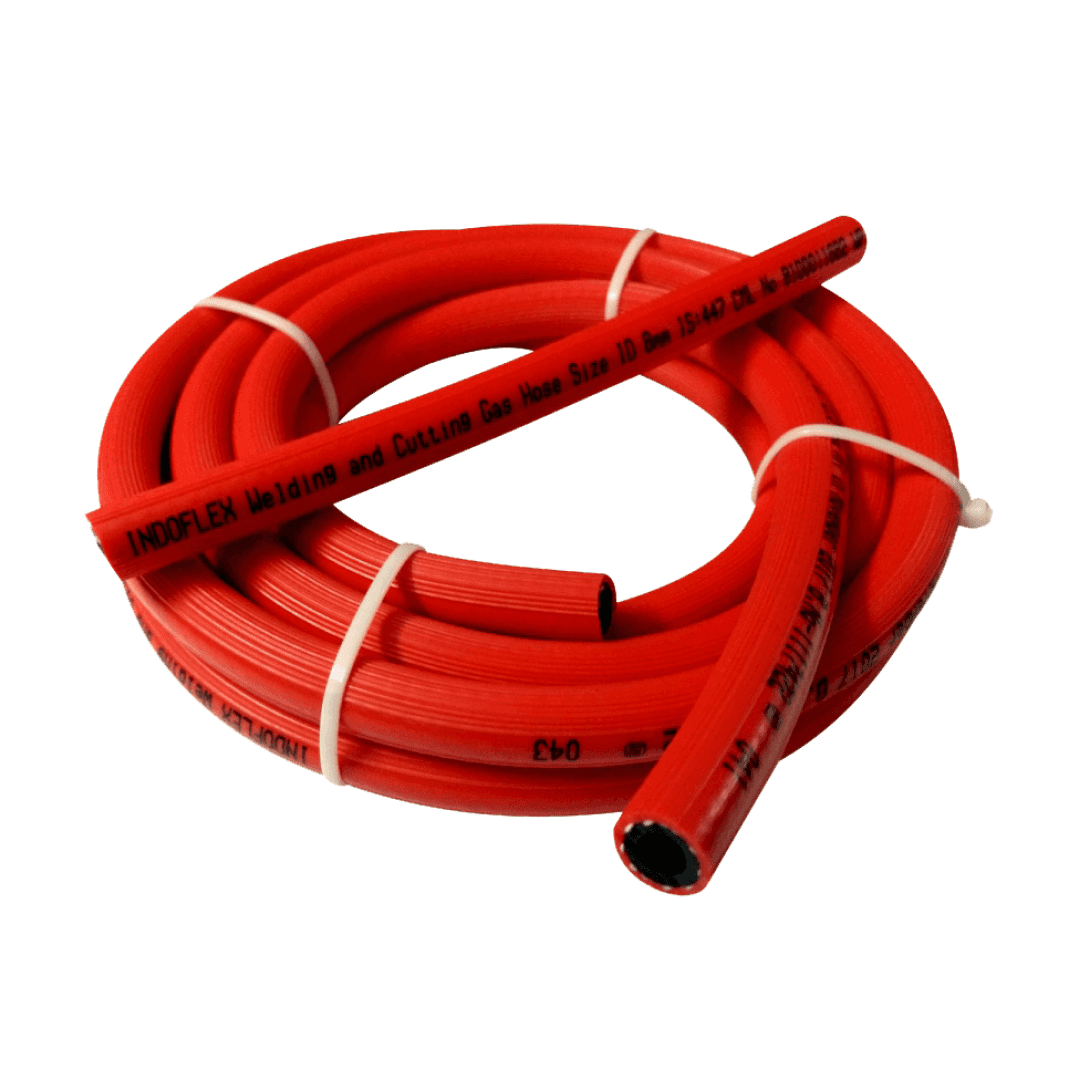

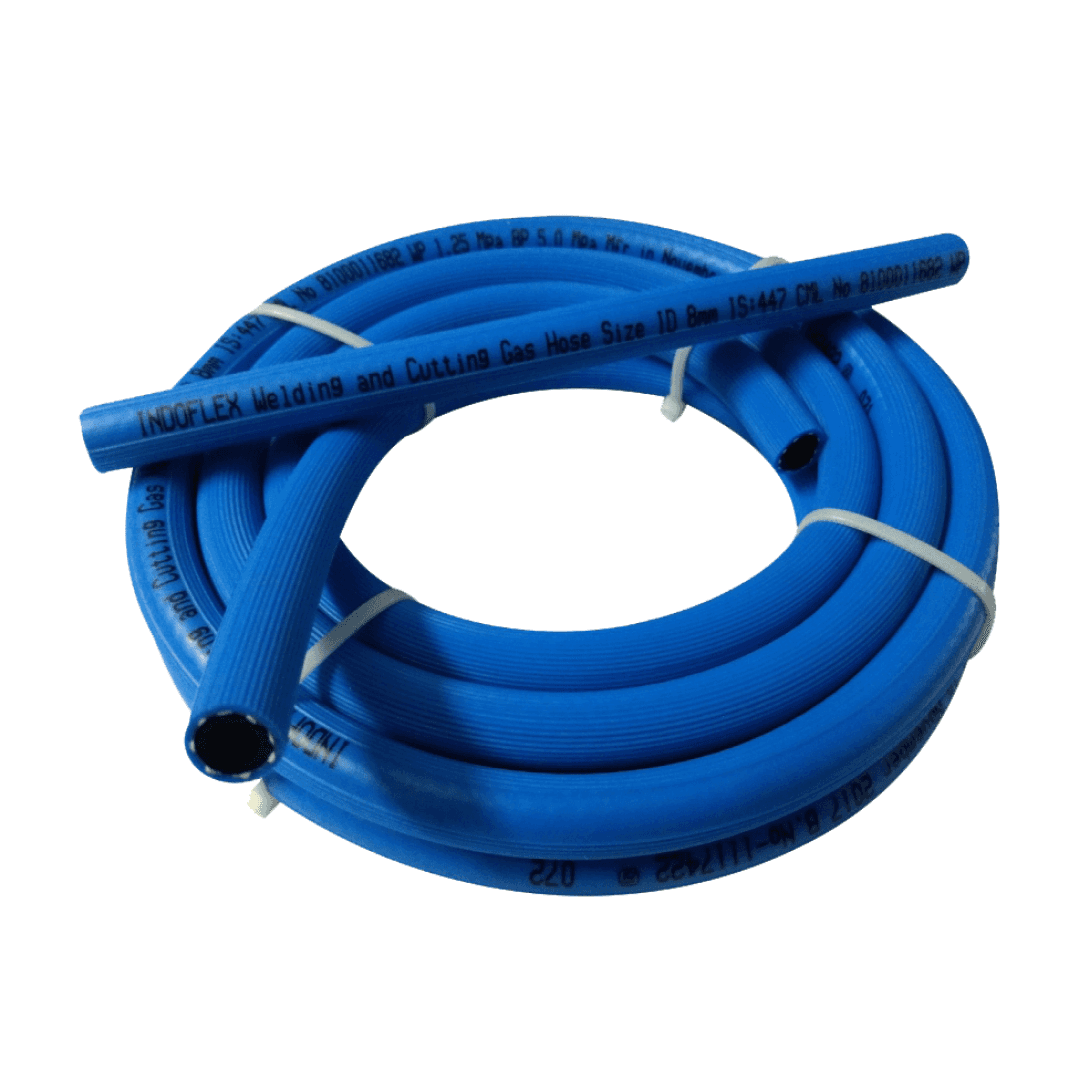

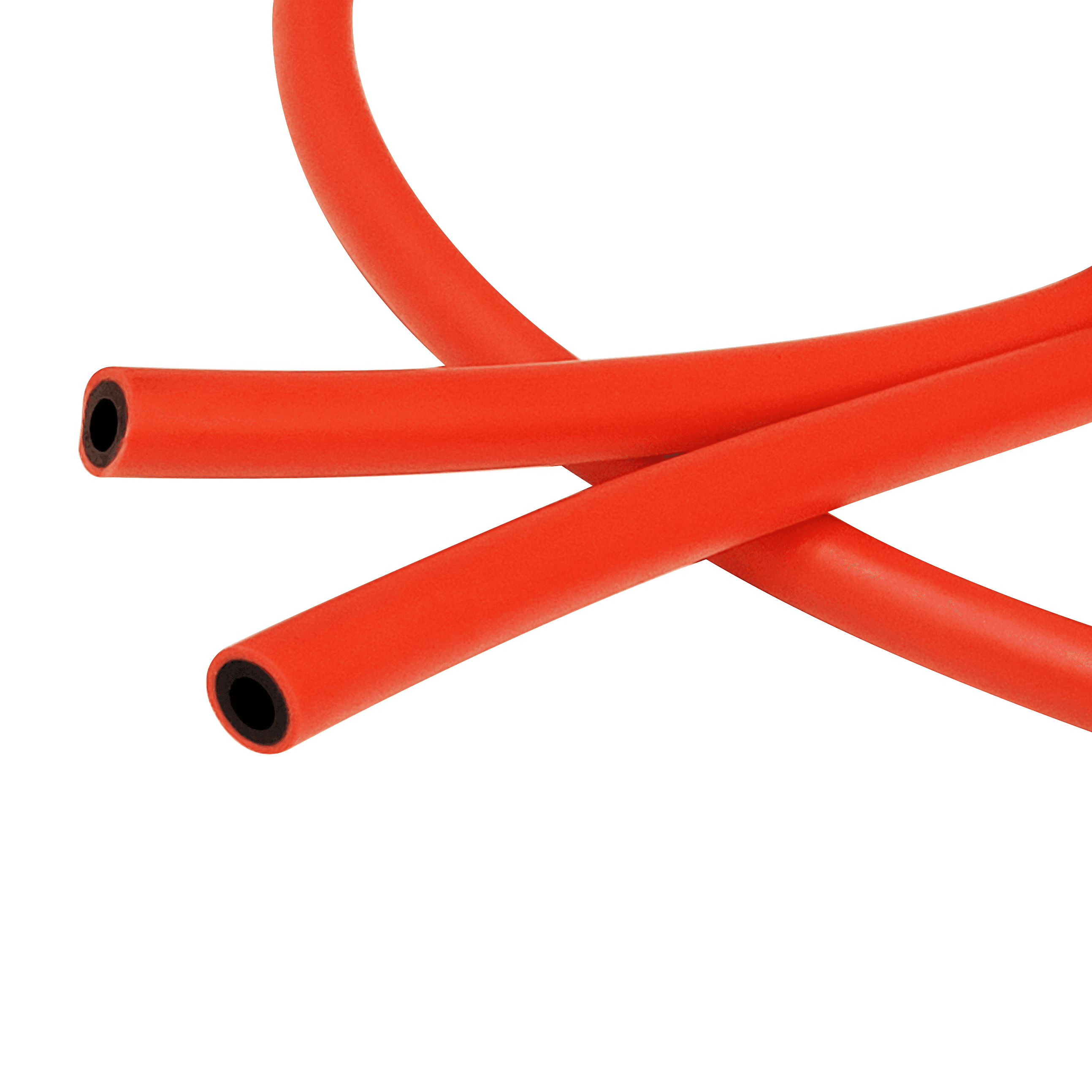

Ferrous Metal Cutting or Welding done by the use of a Fuel gas (acetylene, LPG etc) and Oxygen gas requires a reliable hose pipe for its flow. Wayhose offers the same by using a thermoplastic blend of Rubbers and PVC to make that welding cutting hose. No doubt wayhose welding cutting gas hose is spatter resistant, expands less besides being light weight for easy use. The Hose is IS 447 ISI marked. Red Color Hose for Fuel gas and Blue hose for Oxygen gas.
PVC
Code
Size (mm)
Working Pressure
Bursting Pressure
447A0814
8 x 14
15
55
447A0612
6 x 12
15
60
447A1015
10 x 15
15
50
447A1016
10 x 16
20
75
447DP0815
8 x 15
25
100
447DP1017
10 x 17
25
100
*Pressure Rating unit = Bar

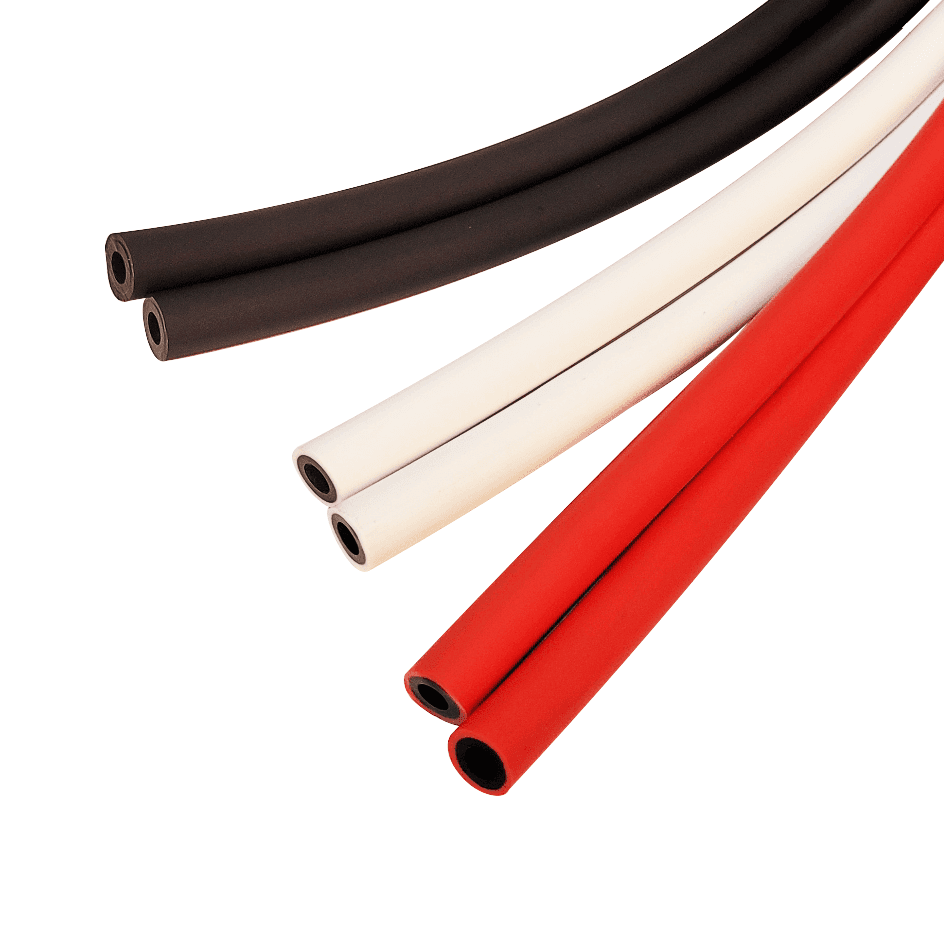

Anti Spark or Anti Spatter Tubes with inner layer of Polyurethene and outer layer of TPR or TPV are made by Wayhose. These tubes are used for Robotic Welding & Cutting operations which require a very light weight tube for gas flow, which should have good rebounding properties and fatigue resistance for repeated movement in same direction. At the same time the tube should have resistance to any fire spark due to spatters falling on the gas tube line. The rebounding properties are achieved by PU and the anti spark properties are given by TPV or TPR outer layer. The outer layer is easy to peal off for efficient end fitting on the PU tubes. Colors of the outer coating are long lasting and distinctive.
PU + PVC
Code
Tube (mm)
(OD) Outer
Coating
Working Pressure
Bursting Pressure
6 x 4
8
10
30
8 x 5
10
10
30
10 x 6.5
12
10
30
12 x 8
14
10
30
*Pressure Rating unit = Bar

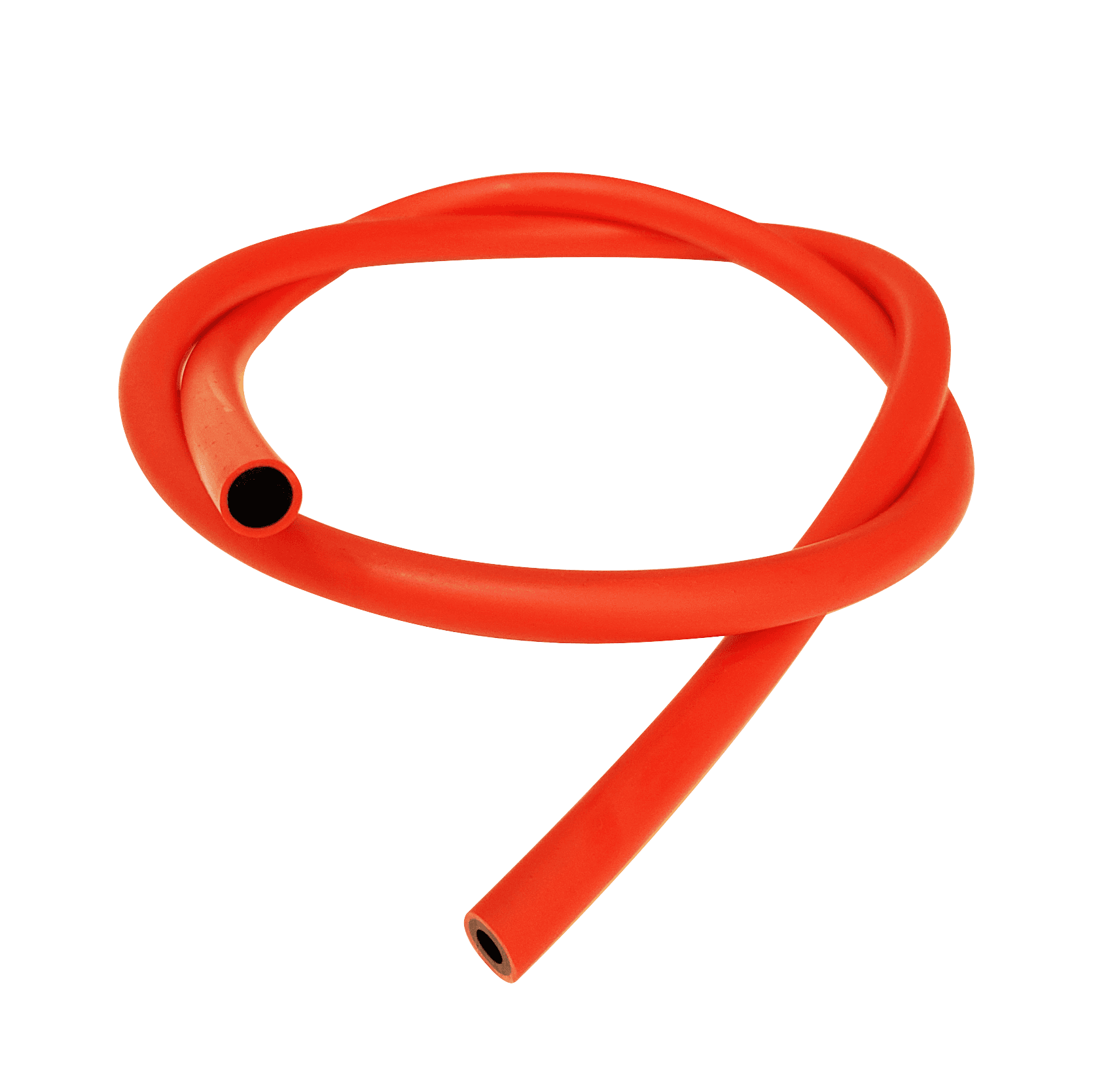

Argon Gas Welding Torch, Mig Welding Torch, Tig Welding Torch uses various flexible tubes. These tubes need to be high temp resistant and highly flexible for the flow of any gaseous fluid or to act as a cover for any other cable operation. Wayhose tubes for different welding torches are made to suit the process condition like temp, pressure etc. Numerous combinations of Inner x Outer diameters with or without yarn reinforcement are made as per the specifications in demand. Some of the generally used tubes and hoses for welding torches are listed below. These are made of High Temp PVC or Polyurethene

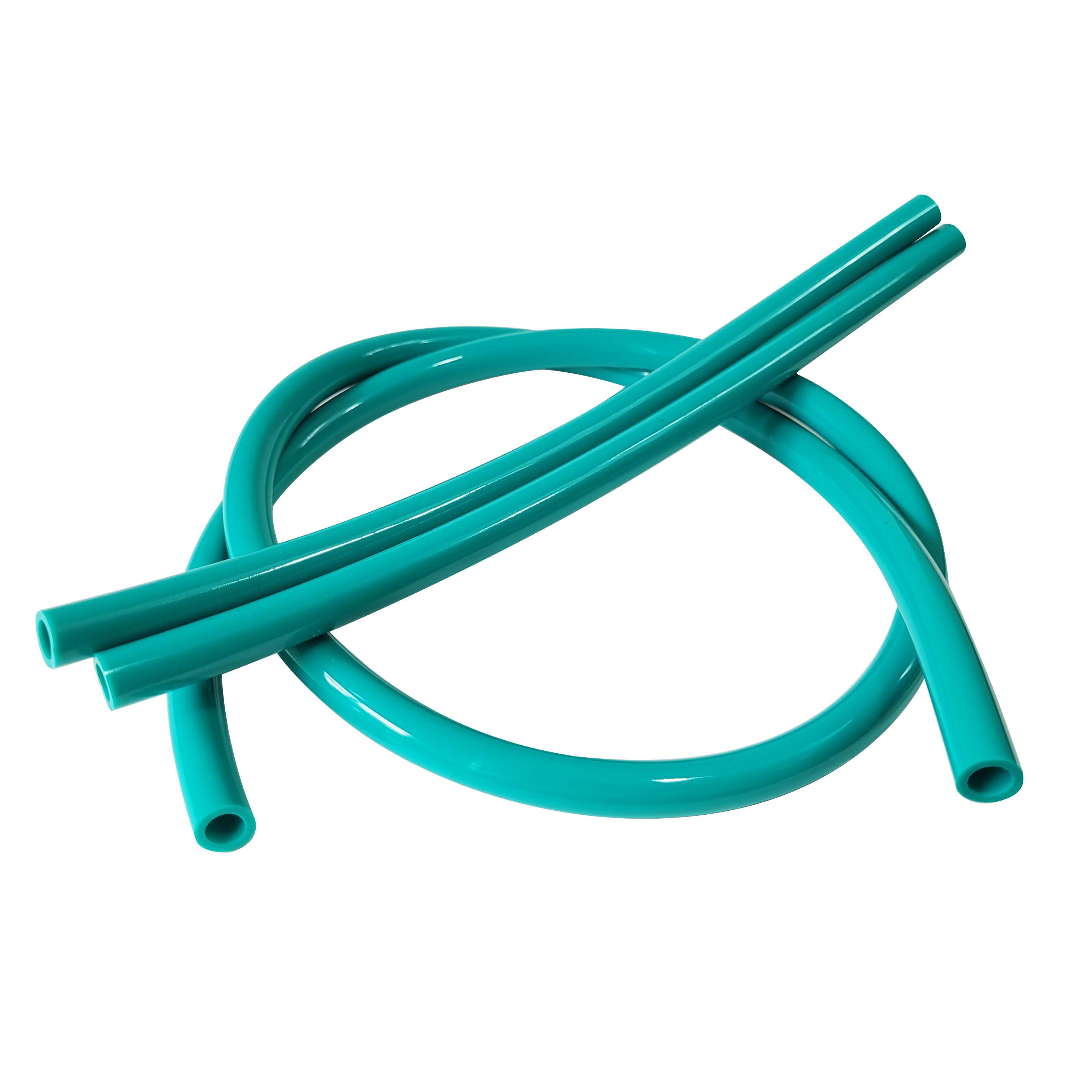

PVC Tubes
Code
Size (mm)
Bursting Pressure
WPV4X5X08TB
4.5-5.5 x 8
105
20
WPV0812TB
8 x 12
105
20
WPV1014TB
10 x 14
105
20
*Pressure Rating unit = Bar, *Temperature unit = Celsius

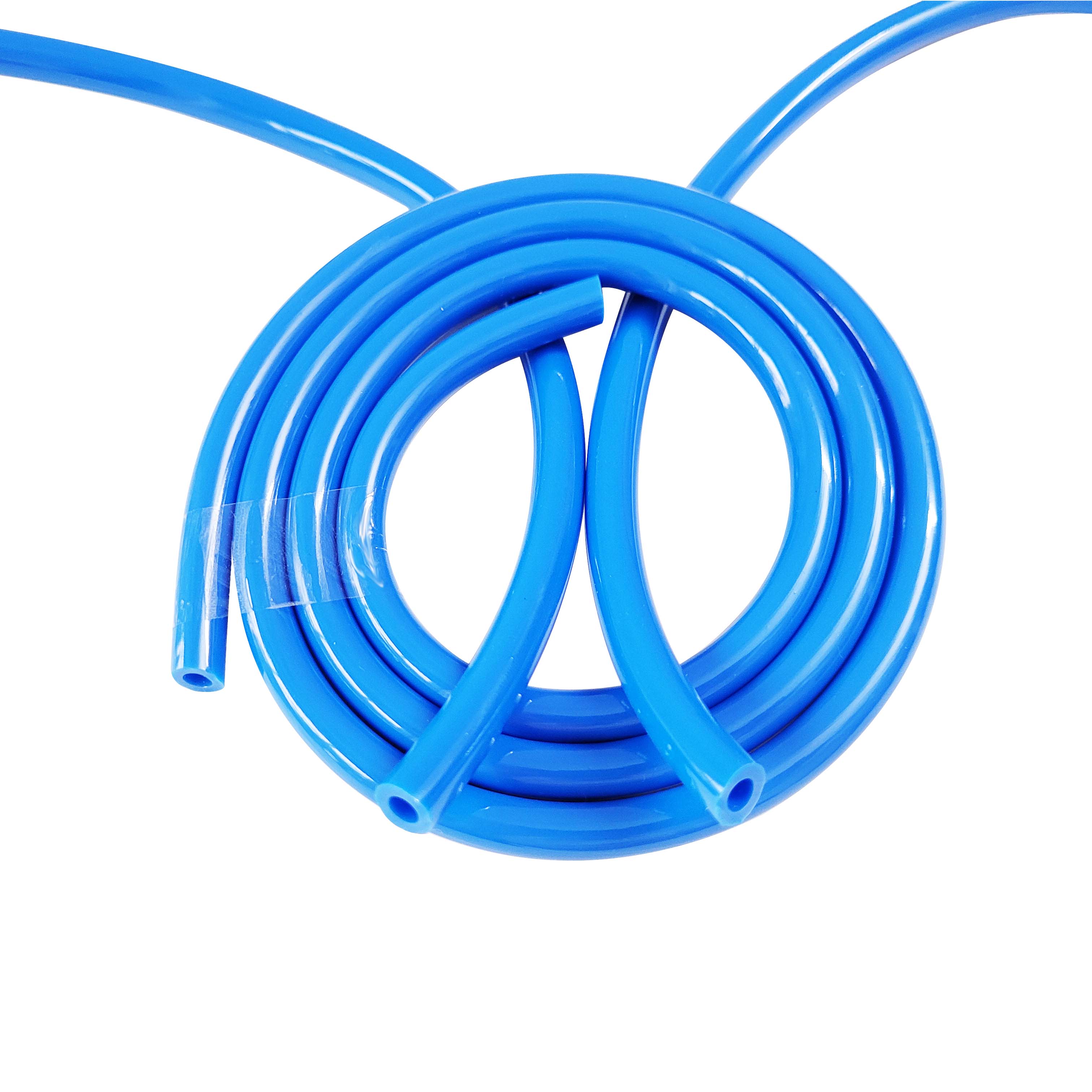

PU Tubes
Code
Size (mm)
Bursting Pressure
WPU4X5X08TB
4.5-5.5 x 8
115
30
WPU0812TB
8 x 12
115
30
WPU1014TB
10 x 14
115
30
*Pressure Rating unit = Bar, *Temperature unit = Celsius

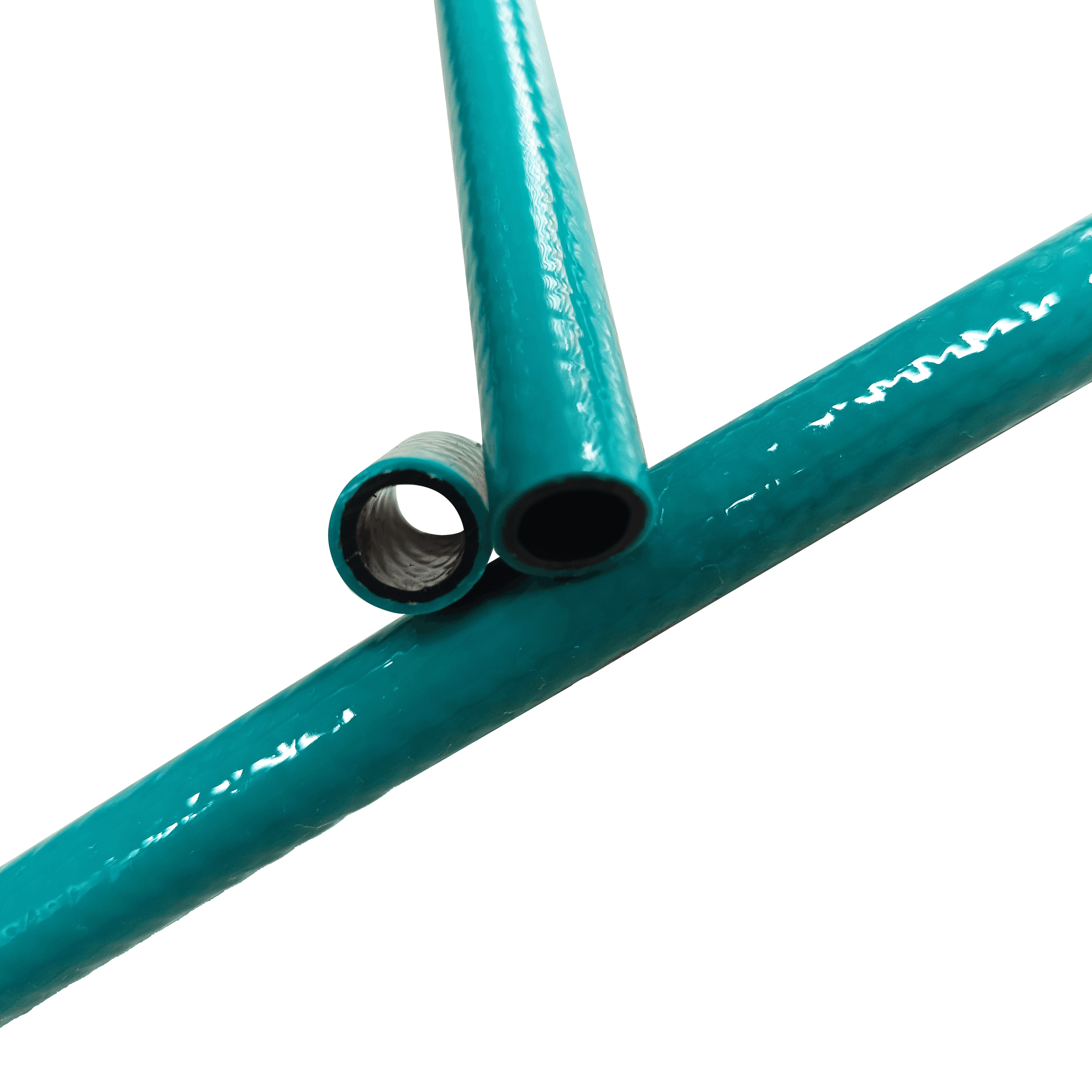

Yarn Reinforced PVC Tubes
Code
Size (mm)
Bursting Pressure
WPV4X5X08BR
4.5-5.5 x 8
105
50
WPV0812BR
8 x 12
105
50
WPV1014BR
10 x 14
105
50
*Pressure Rating unit = Bar, *Temperature unit = Celsius
Yarn Reinforced PU Tubes
Code
Size (mm)
Bursting Pressure
WPU4X5X08BR
4.5-5.5 x 8
115
80
WPU0812BR
8 x 12
115
80
WPU1014BR
10 x 14
115
80
*Pressure Rating unit = Bar, *Temperature unit = Celsius

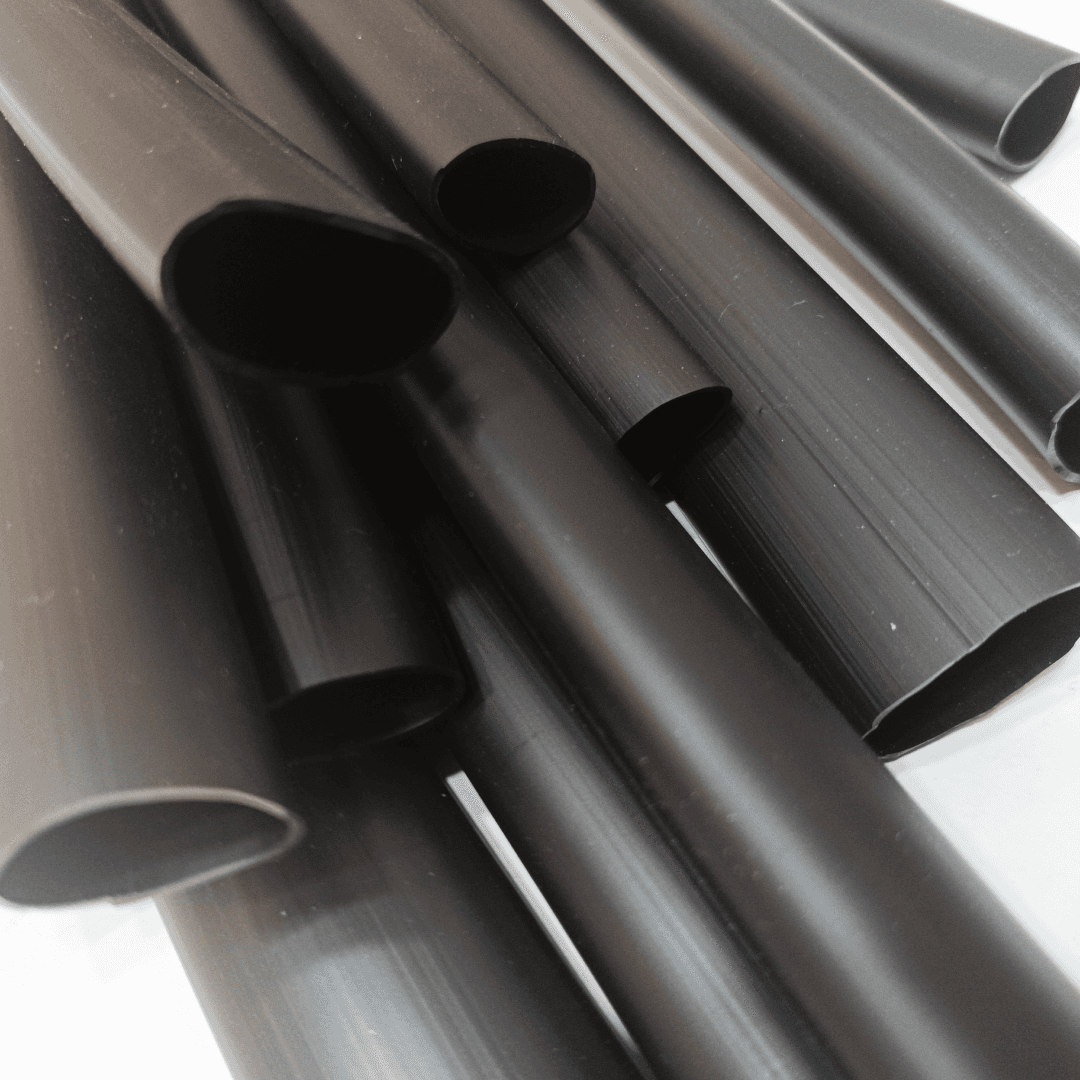

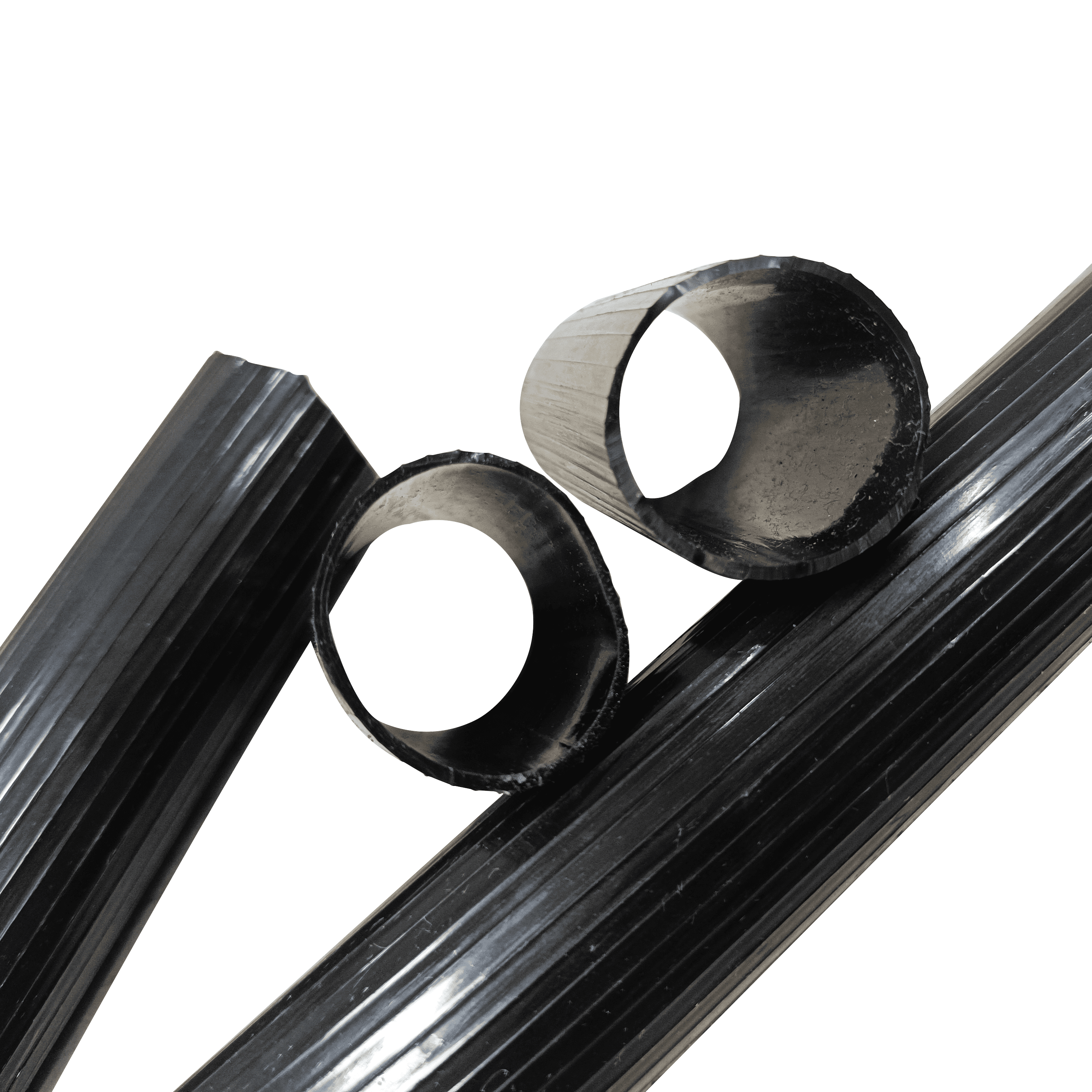

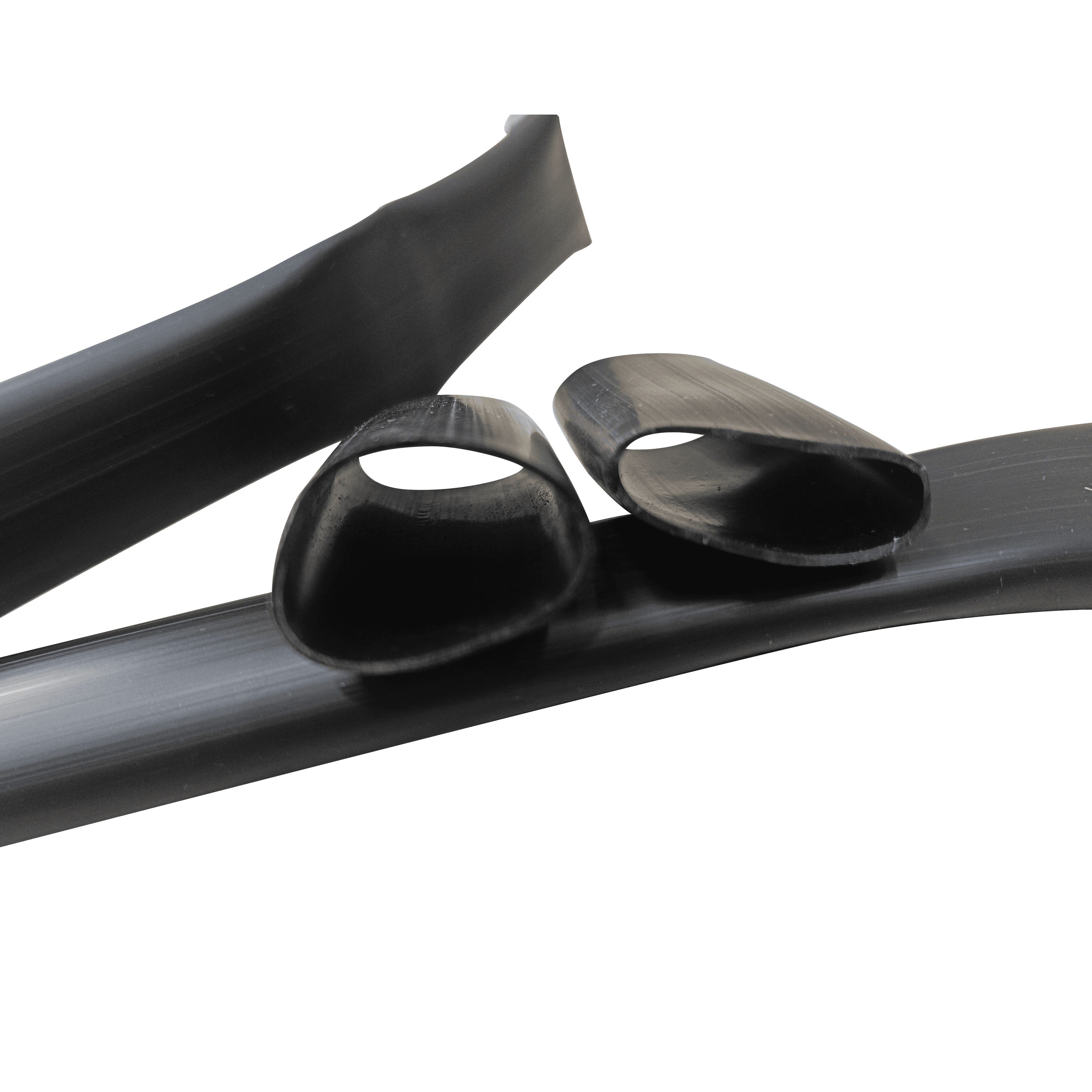

Numerous Tubes, Hoses and Cables are needed to be placed laterally in a flexible conduit which should be light weight. These are called welding sleeves. Wayhose Sleeves used in welding torch application are made from TPR and TPV raw materilas. So these sleves are very light weight, highly flexible and durable at high & low temp. They never get torn and thus need very low replacement frequency. The surface can be plain or ribbed black matte. These sleeves are also made as per specifications in demand.
Code
Size (mm)
Wall
Thickness
WSLV19
19 x 20
0.5
-20 to 105
WSLV26
26 x 28
1
-20 to 105
WSLV28
28 x 30.5
1.25
-20 to 105
WSLV30
30 x 32.5
1.25
-20 to 105
WSL50
50 x 53
1.5
-20 to 105
*Pressure Rating unit = Bar, *Temperature unit = Celsius
