Wayhose is tested for
IS: 12585 | IS: 446 | IS: 444 | IS: 12492

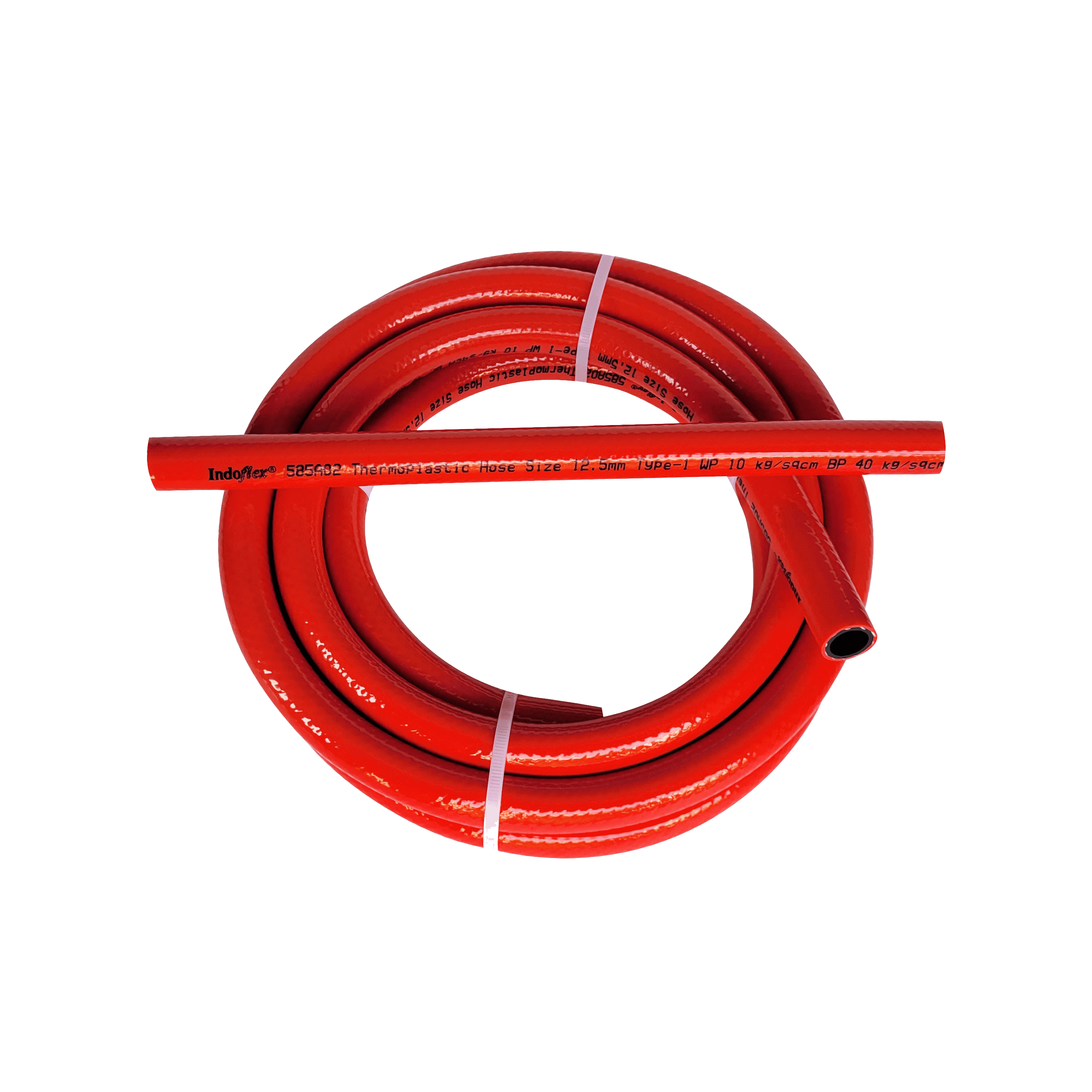

Used for making fire extinguisher connectors with one end fitted with a nut and other end with an outflow nozzle to let the fire extinguishing chemical to flow out directed at a live fire.
Made out of PVC and Thermoplastic Rubber, these hoses offer varying degrees of Pressure bearing, Strength and Softness.
PVC
Code
Size (mm)
Working Pressure
Bursting Pressure
585A1217P
12.5 x 17.5
10
40
585A1218
12.5 x 18
15
60
585A1219
12.5 x 19
20
80
585A1927P
19.5 x 27.5
15
60
WLA02
19.5 x 25.5
10
40
WLCO2
19.5 x 26.5
15
60
WLC01
12.5 x 18
15
60
*Pressure Rating unit = Bar
EPDM / NBR Thermoplastic Rubber
Code
Size (mm)
Working Pressure
Bursting Pressure
446A1218
12.5 x 18
10
40
446A1219
12.5 x 19
15
50
446A1015
12.5 x 15
10
45
446A1928
19.5 x 28
15
50
*Pressure Rating unit = Bar
Wayhose is tested for
IS: 12585 | IS: 446 | IS: 444 | IS: 12492

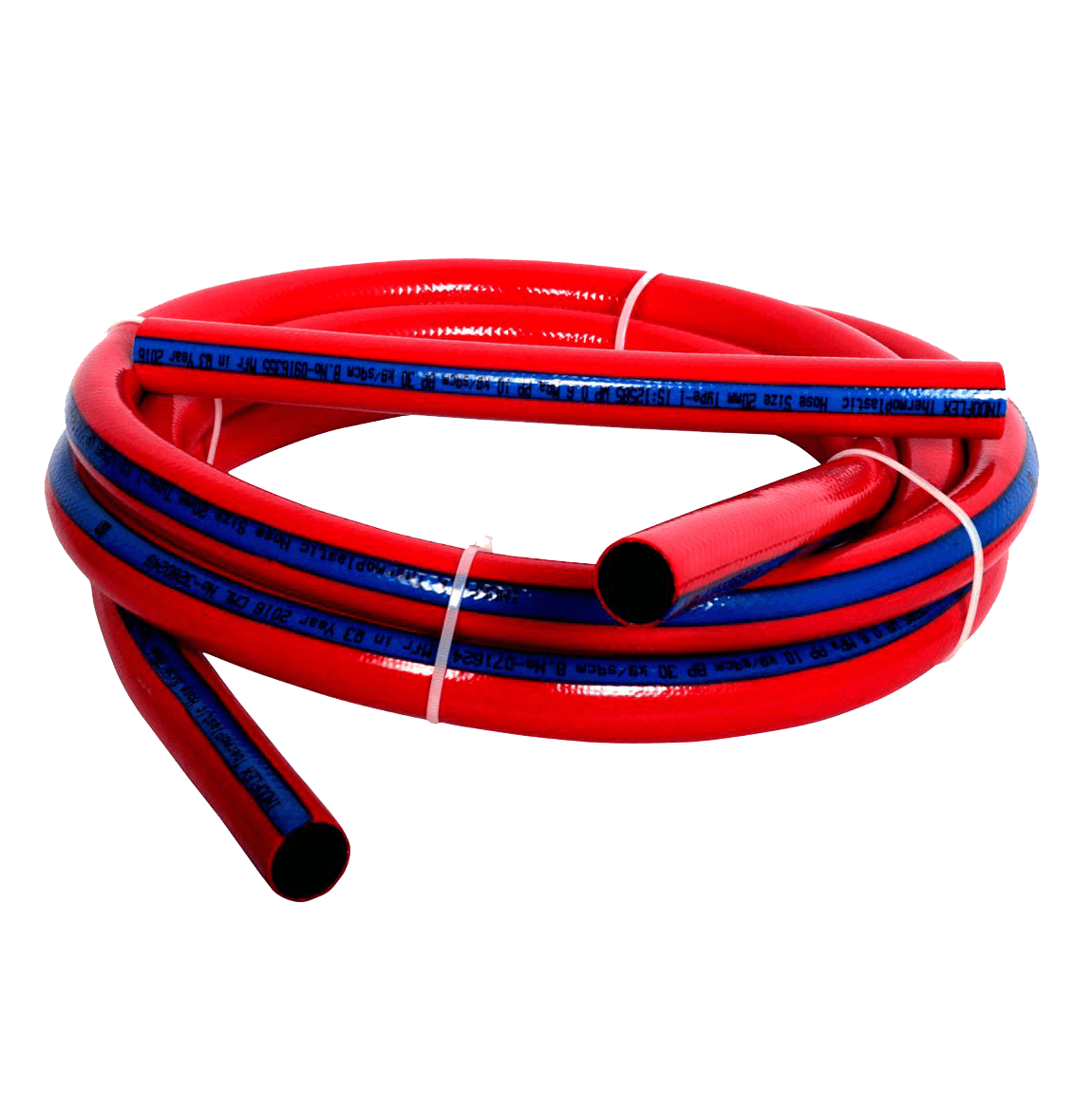

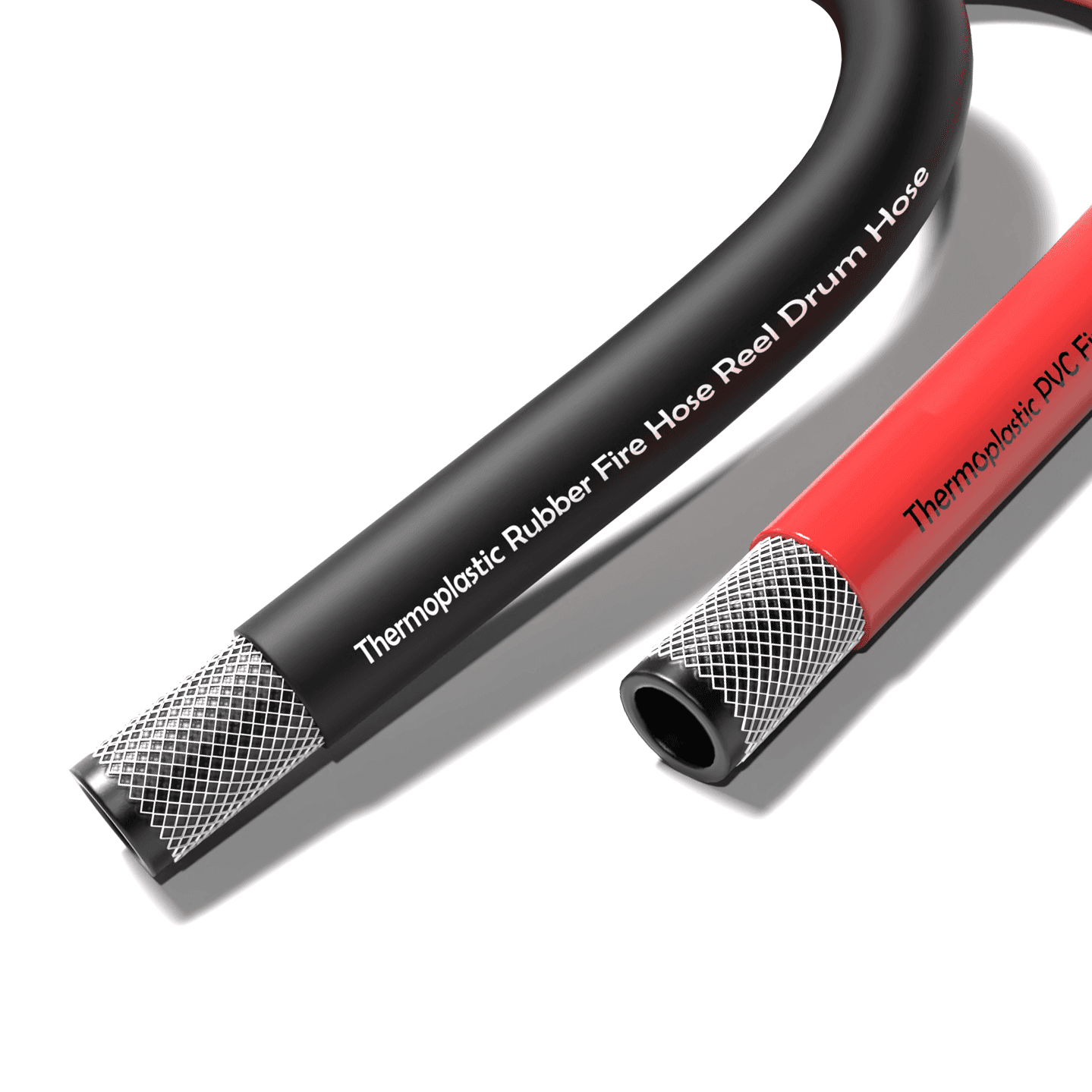

Used for application in Hose reel drums installed at buildings and outdoors for firefighting through high pressure water jet.
Made out of PVC and Thermoplastic Rubber, these hoses never crack or leak and thus have a long life time.
PVC
Code
Size (mm)
Working Pressure
Bursting Pressure
585A1925
19.5 x 25
10
35
585A1925P
19.5 x 25.5
15
45
585A1926P
19.5 x 26.5
17
55
585A1928
19.5 x 28
20
80
585A2532
25 x 32
15
45
585A2533
25 x 33
17
55
*Pressure Rating unit = Bar
EPDM / NBR Thermoplastic Rubber
Code
Size (mm)
Working Pressure
Bursting Pressure
585A1925P
19.5 x 25.5
15
45
585A1927P
19.5 x 27.5
20
60
585A2532
25 x 32
15
45
*Pressure Rating unit = Bar
Proposed Tests for Wayhose Tubes
UL 300

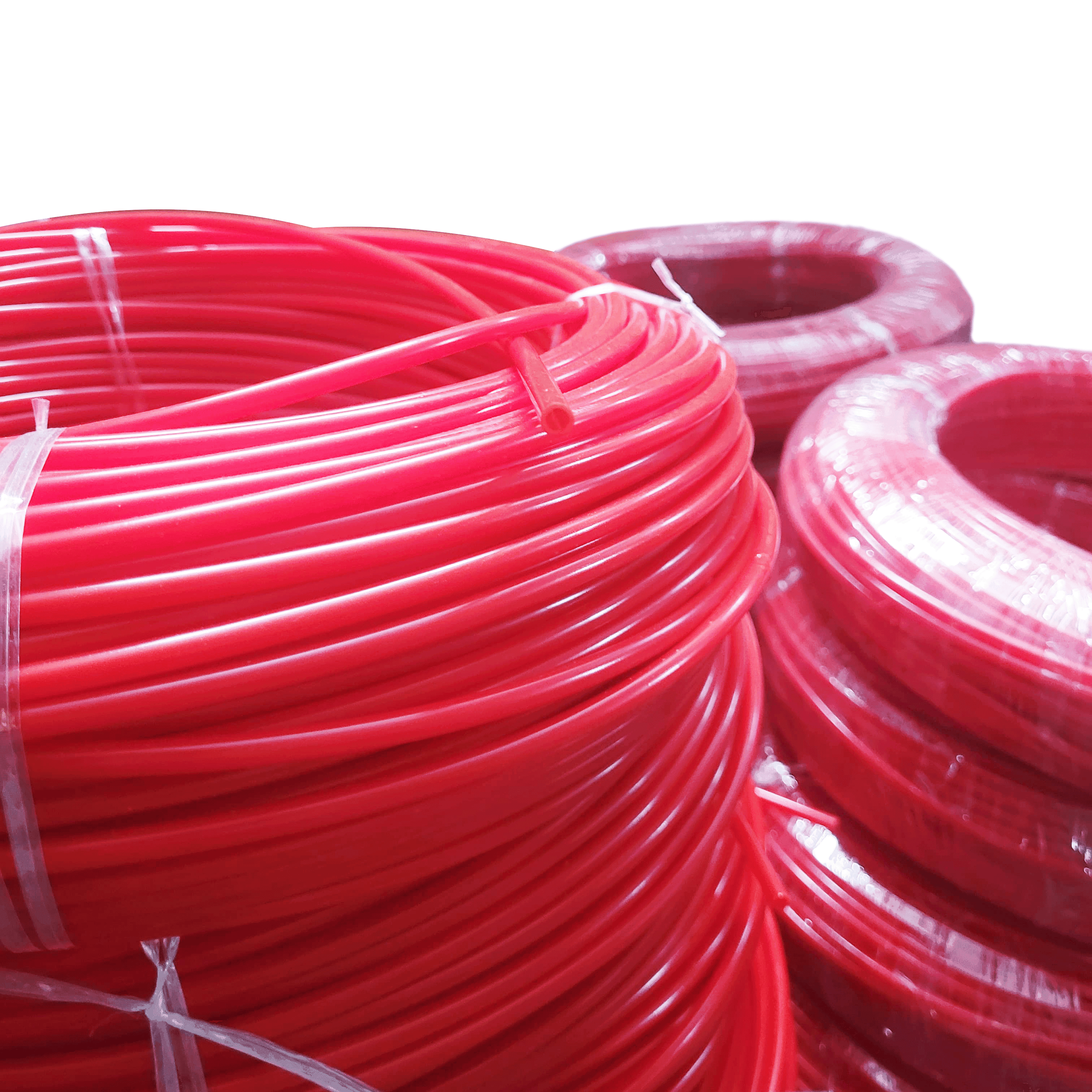

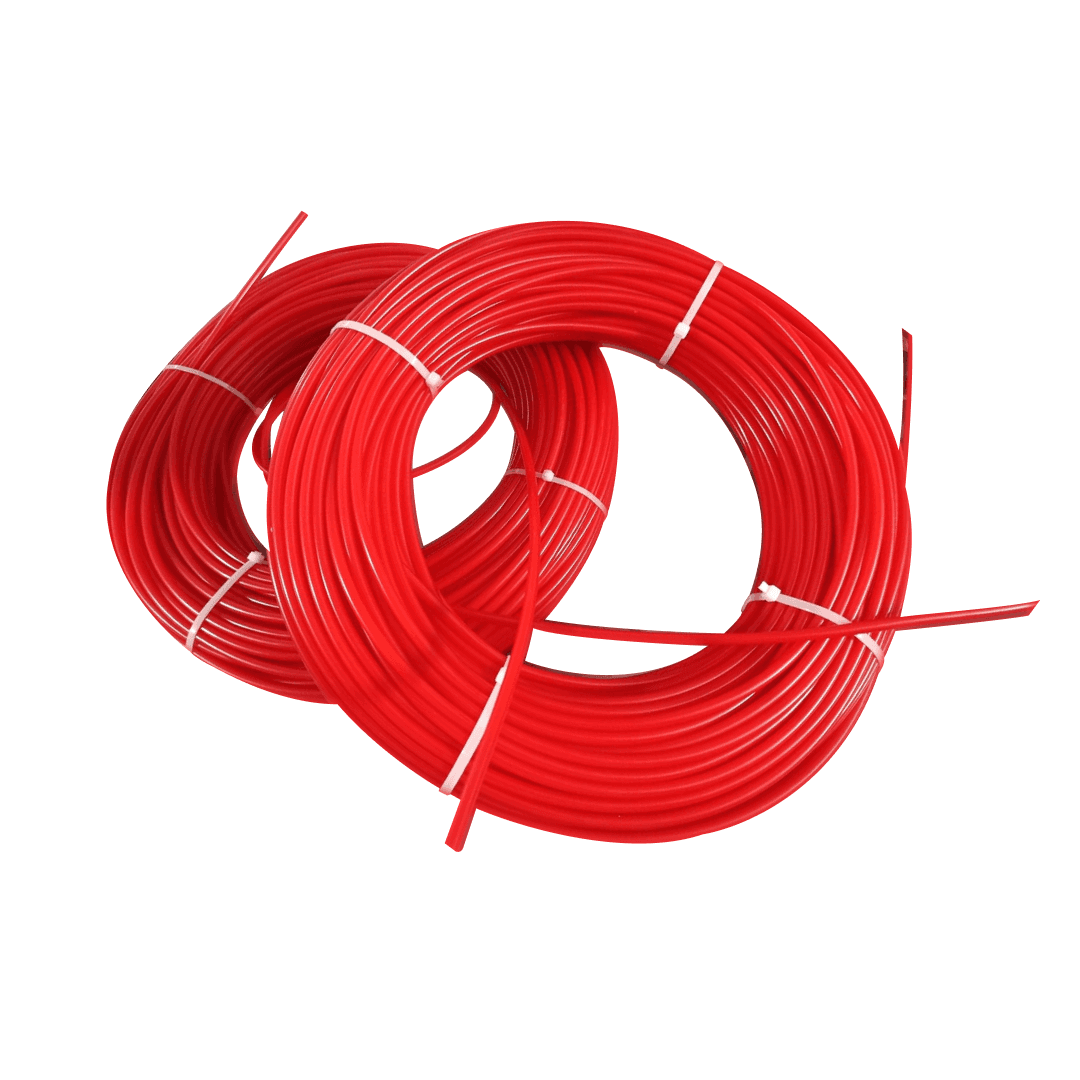

Wayhose tubes are non-brittle, long lasting and precisely engineered for easy flow of fire retardants namely Clean Agents (Novec 1230), Gaseous Agents, Dry chemicals, Mechanical Foam and Water Mist.
Made out of Polyamide 12 Nylon Tubes, these tubes are designed to detect and suppress fires quickly, minimizing damage and downtime in the critical areas.
Polyamide 12 Nylon
Code
Size (mm)
Working Pressure
Bursting Temperature
P12A0604
4 x 6
30
110
P12A0806
6 x 8
30
110
*Pressure Rating unit = Bar, Temperature unit = °C
Wayhose is tested for
IS: 12585 | IS: 446 | IS: 444 | IS: 12492

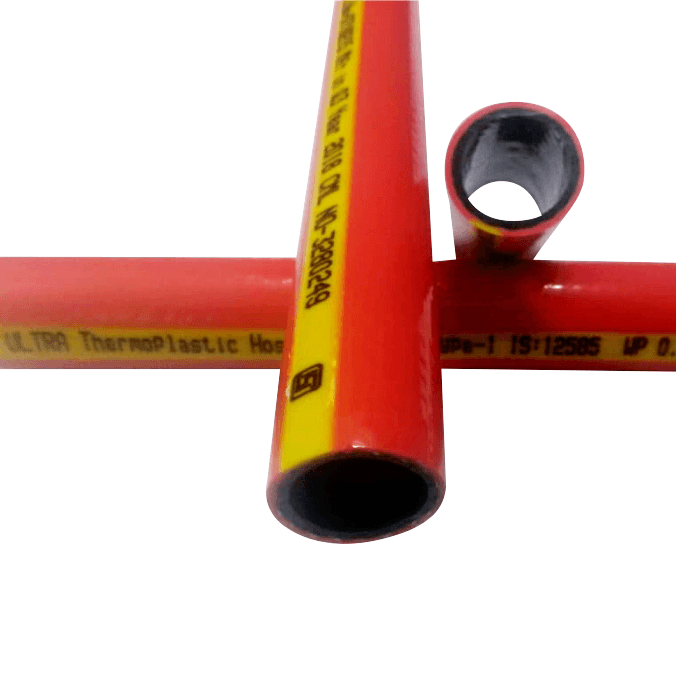

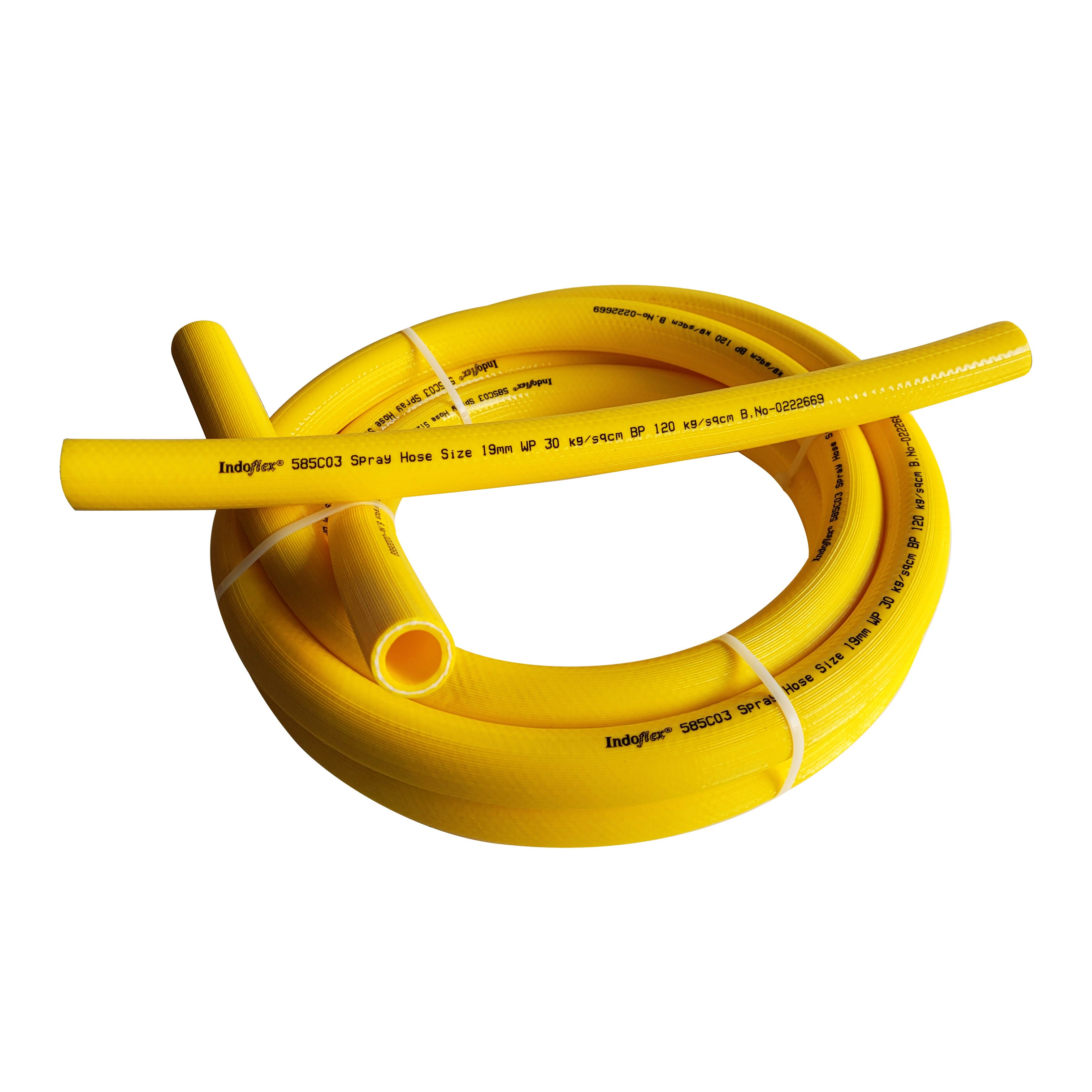

Fire Brigae uses a long length of high strength but flexible hose to target high pressure water spray on the fire. Wayhose used for this application is so made that it withstands the high pressure with lowest expansion and never cracks or punchers.
Made from PVC which shows higher tensile strength. Also made from Rubbers which possess extra flexibiltiy besides required pressure ratings.
PVC
Code
Size (mm)
Working Pressure
Bursting Pressure
585DP1928
19.5 x 28.5
25
100
585DP1929
19.5 x 29
30
120
585DP2533
25 x 33
25
100
585DP2535
25 x 35
30
120
*Pressure Rating unit = Bar

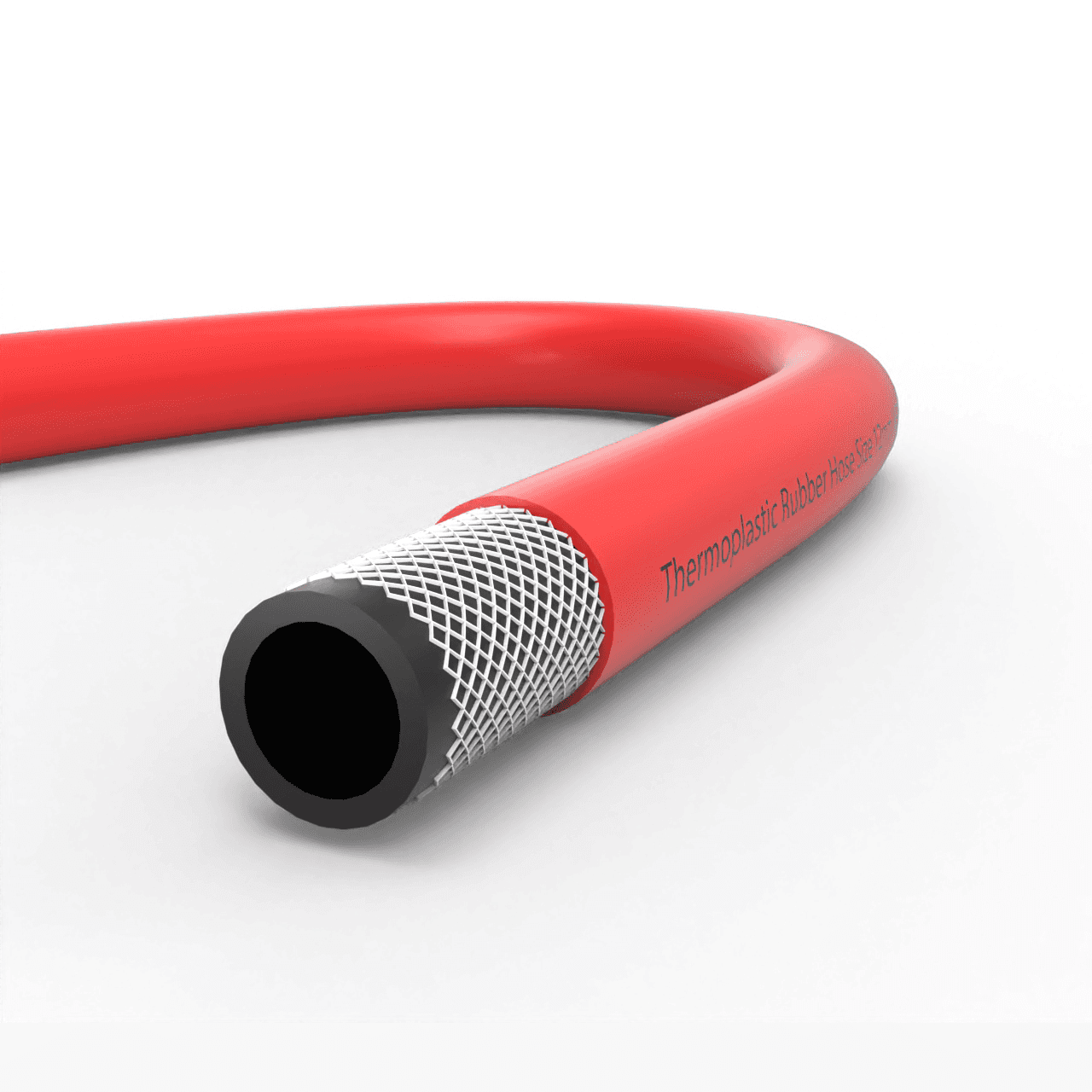

EPDM / NBR Thermoplastic Rubber
Code
Size (mm)
Working Pressure
Bursting Pressure
446DP1928
19.5 x 28
25
100
446DP2534
25 x 34
25
100
*Pressure Rating unit = Bar
