Wayhose is tested for
IS: 12585 | IS: 446 | IS: 444 | IS: 12492

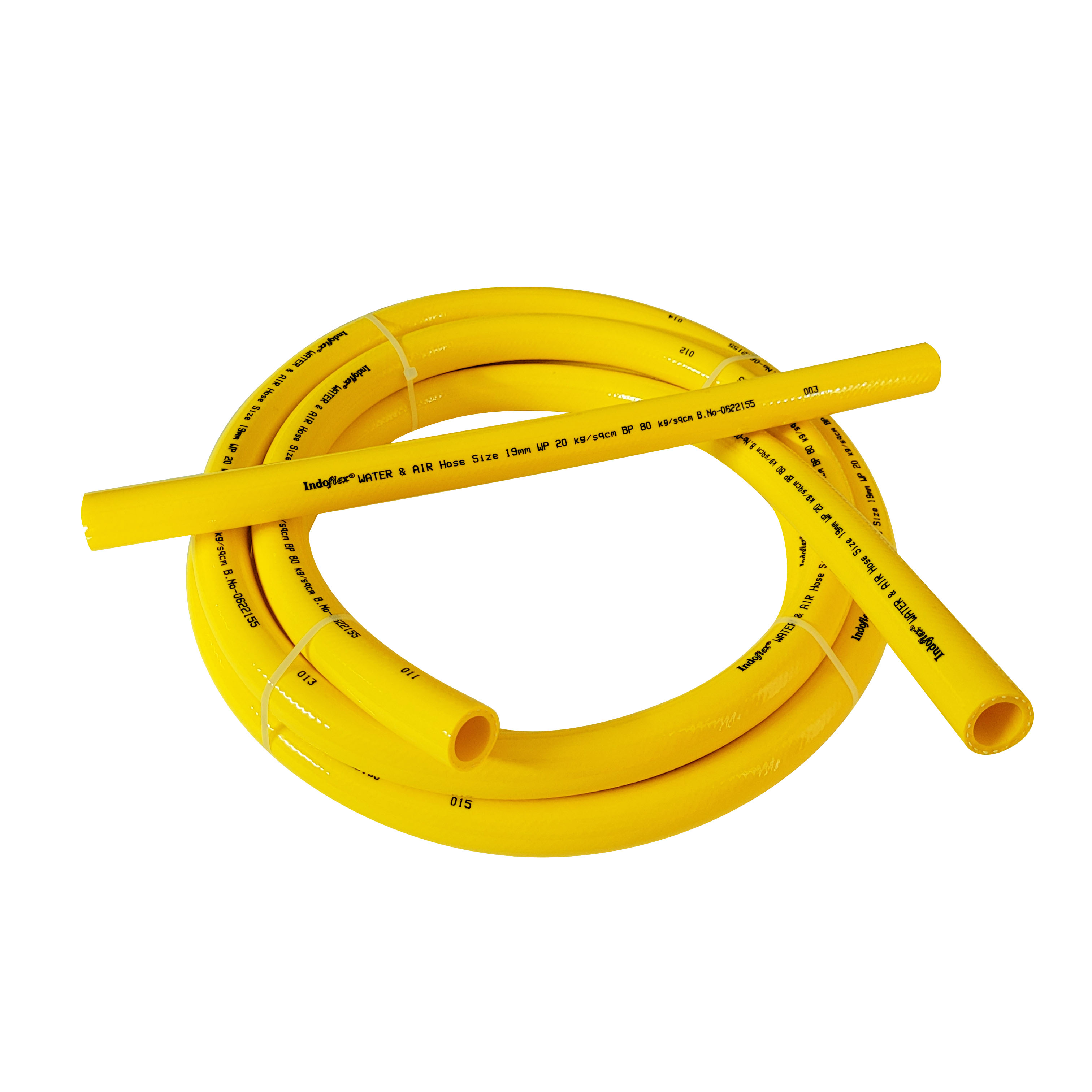

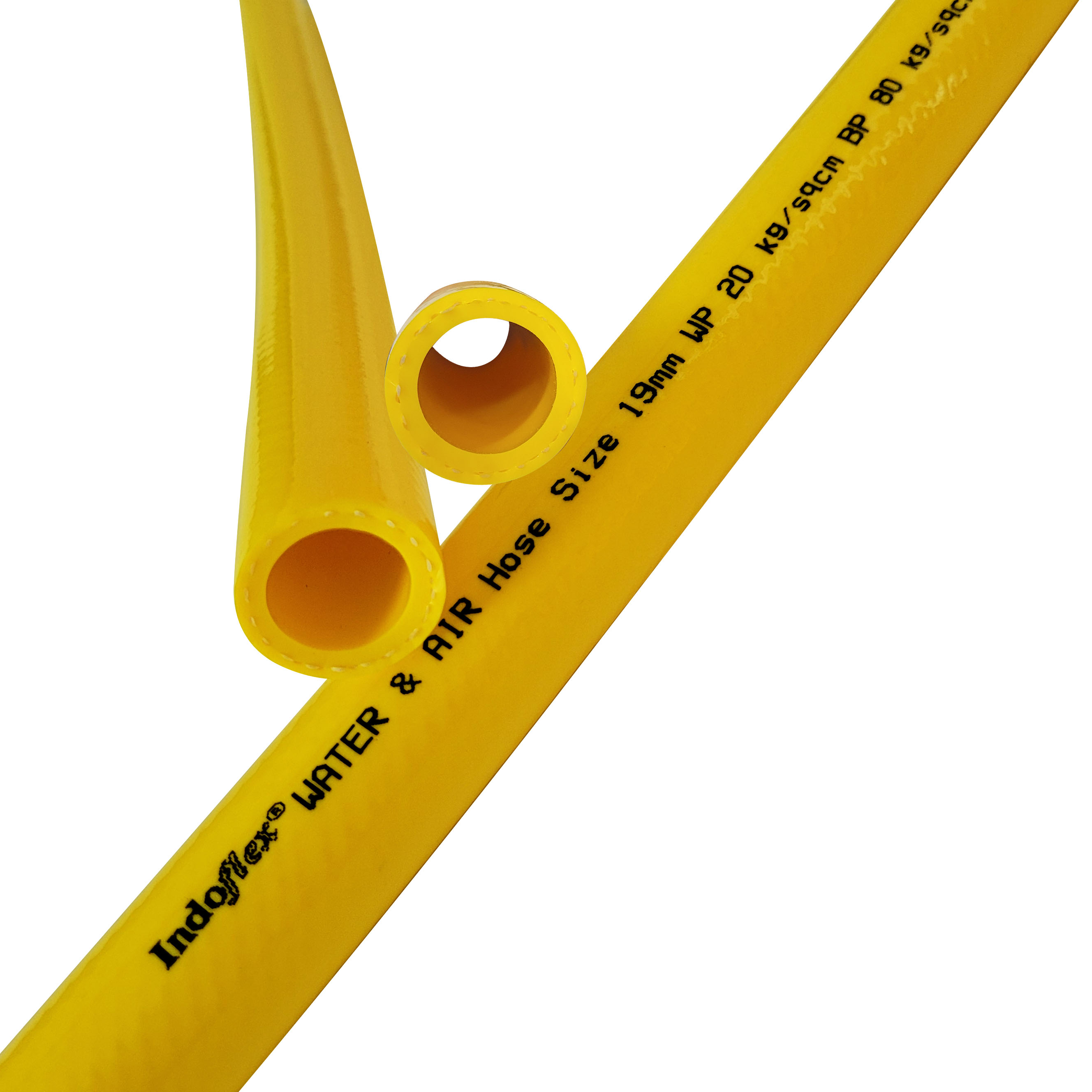

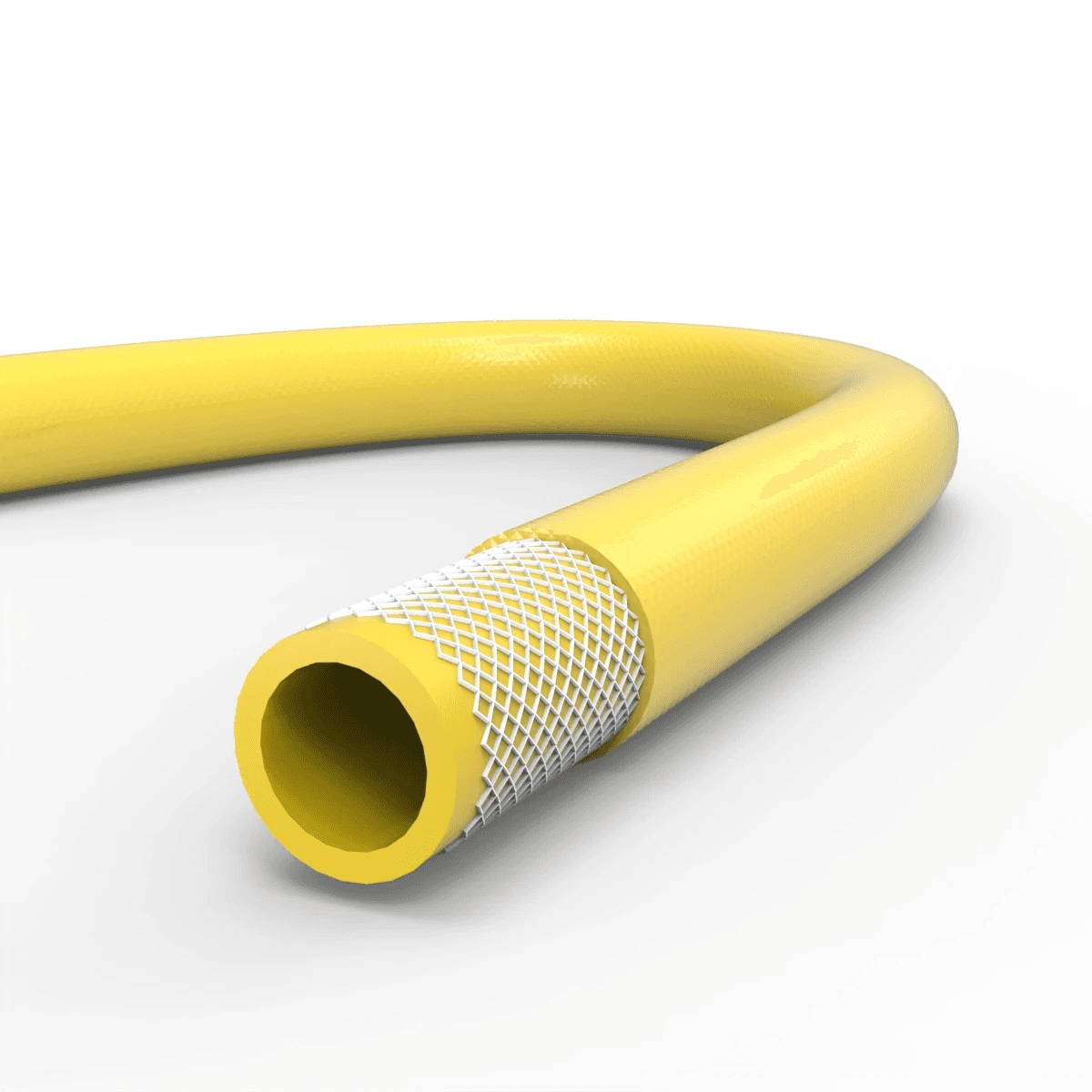

Air Hose used for Rock Drill Application is attached with a Jack Hammer for high pressure air to flow through it which moves the drill bit. In rock mining and road construction this hose is widely used.
The best possible abrasion resistance and high-pressure impulses bearing capacity makes the wayhose under this application the best choice for infrastructure engineers and contractors.
PVC
Code
Size (mm)
Working Pressure
Bursting Pressure
492A1220
12 x 20
20
80
492A1927
19 x 28
20
80
492A2534
25 x 34
20
80
492A3141
31 x 41
15
60
492A3848
38 x 48
15
60
492A5061
50 x 61
15
60
*Pressure Rating unit = Bar
Wayhose is tested for
IS: 12585 | IS: 446 | IS: 444 | IS: 12492

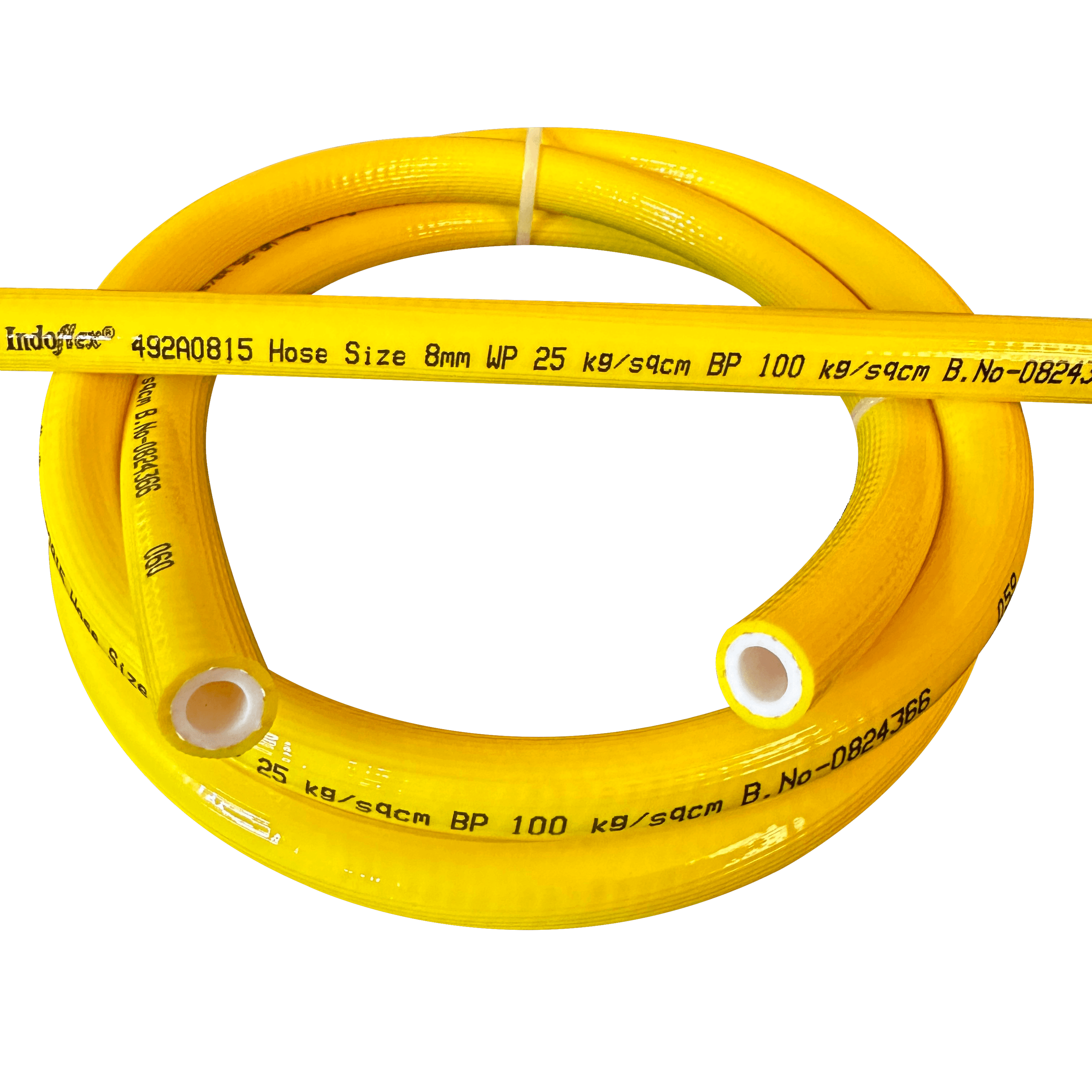

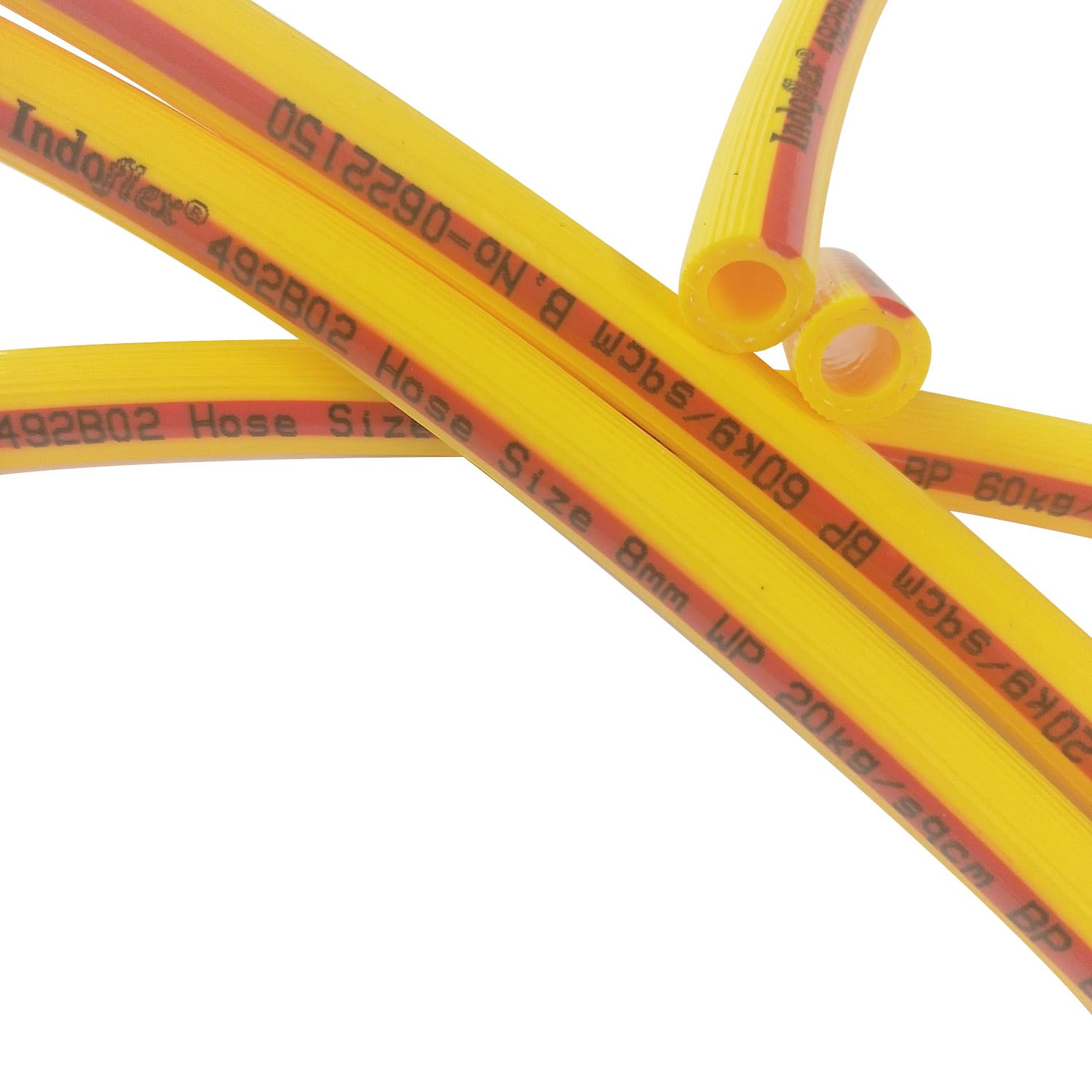

Automobile tyre air pressure is maintained by compressed air flowing through these hoses. These hoses are made up of soft PVC polymers or Rubber blended polymers for extra softness. Wayhose air hose for tyre inflating works longer and serves in all types of high and low temperature weather conditions.
PVC
Code
Size (mm)
Working Pressure
Bursting Pressure
492A0409
4 x 9
20
80
492A0611
6 x 11
20
80
492A0612
6 x 12
20
80
492A0814
8 x 14
15
60
492A0815
8 x 15
20
80
492A1015
10 x 15
13
40
492A1016
10 x 16
17
80
492A1017
10 x 17
25
100
*Pressure Rating unit = Bar
Rubber
Code
Size (mm)
Working Pressure
Bursting Pressure
446A0612
6 x 12
20
80
446A0814
8 x 14
15
60
446A1016
10 x 16
15
60
*Pressure Rating unit = Bar
Tubes made from Polyurethane are widely used for precise flow of compressed air in various industrial pneumatic tools or general application.
PU Tubes have better rebounding and bending resistance as compared to Rubber in Plastic Hoses. Besides they are light weight and easy to handle. Comes in many colors from Transparent to Blue, Red, Yellow, Black etc. Blue is most commonly used.
Polyurethane Tubes
Code
Size (mm)
Working Pressure
Bursting Pressure
98PU0425
4 x 2.5
10
35
98PU0604
6 x 4
10
35
98PU0805
8 x 5
15
40
98PU0855
8 x 5.5
10
35
98PU0806
8 x 6
7
25
98PU1065
10 x 6.5
15
40
98PU1008
10 x 8
10
35
98PU1208
12 x 8
15
40
98PU1209
12 x 9
10
25
98PU1210
12 x 10
7
20
98PU1612
16 x 12
10
30
*Pressure Rating unit = Bar

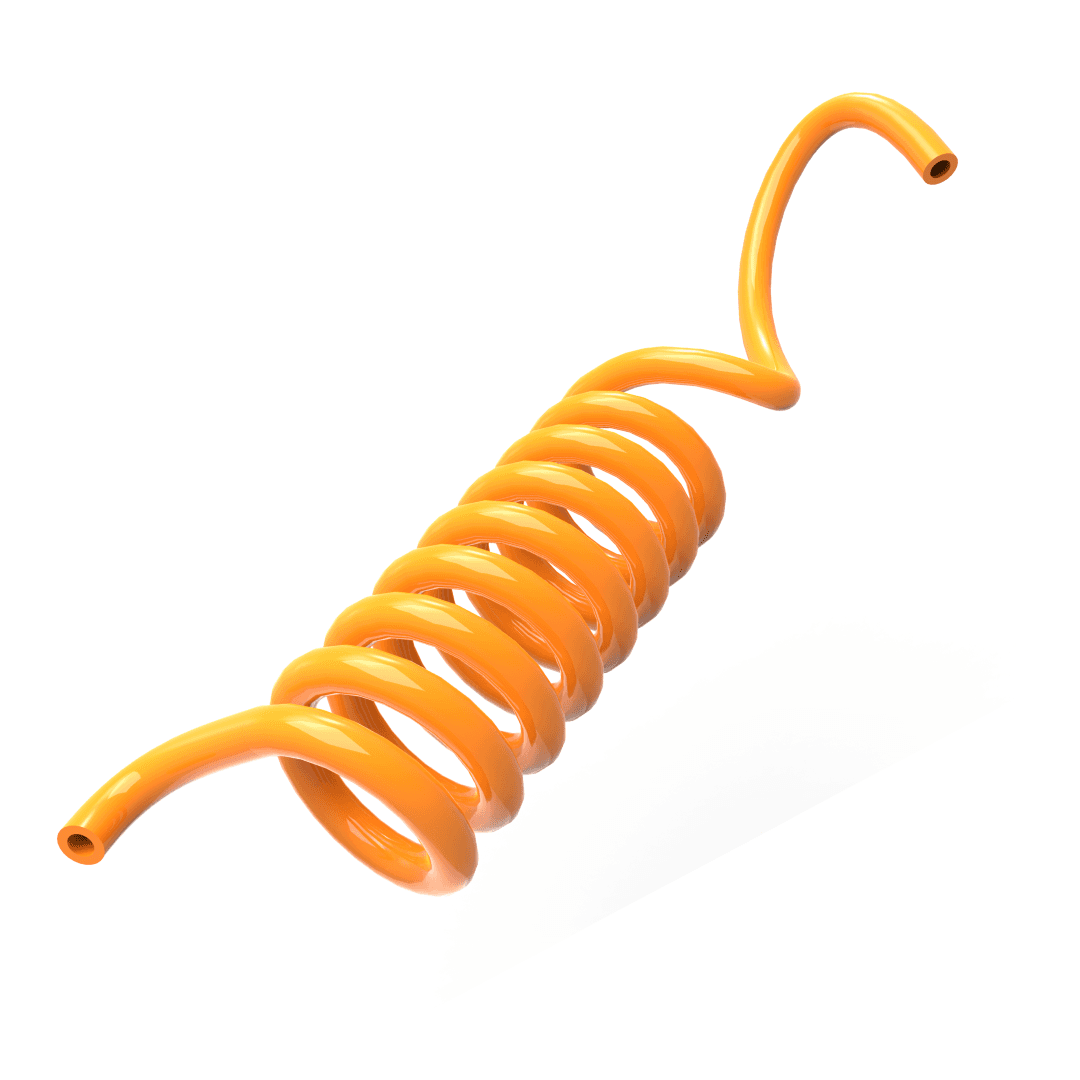

The PU tube is coiled like a spring for easy handeling. The coil streaches to the desired lengths under use and regains its orifginal shape after being released. As such wayhose PU tubes are always abrasion resistant and long lasting. Withstand rated pressure with lowest possible diameter expansion.
Available in 5,10,15 m length coils the tubes are available in 5 different diametric variations.
Polyurethane Coils
Code
Size (mm)
Working Pressure
Bursting Pressure
CLPU0604
6 x 4
15
40
CLPU0805
8 x 5
15
40
CLPU1065
10 x 6.5
15
40
CLPU1208
12 x 8
15
40
CLPU1612
16 x 12
10
30
*Pressure Rating unit = Bar

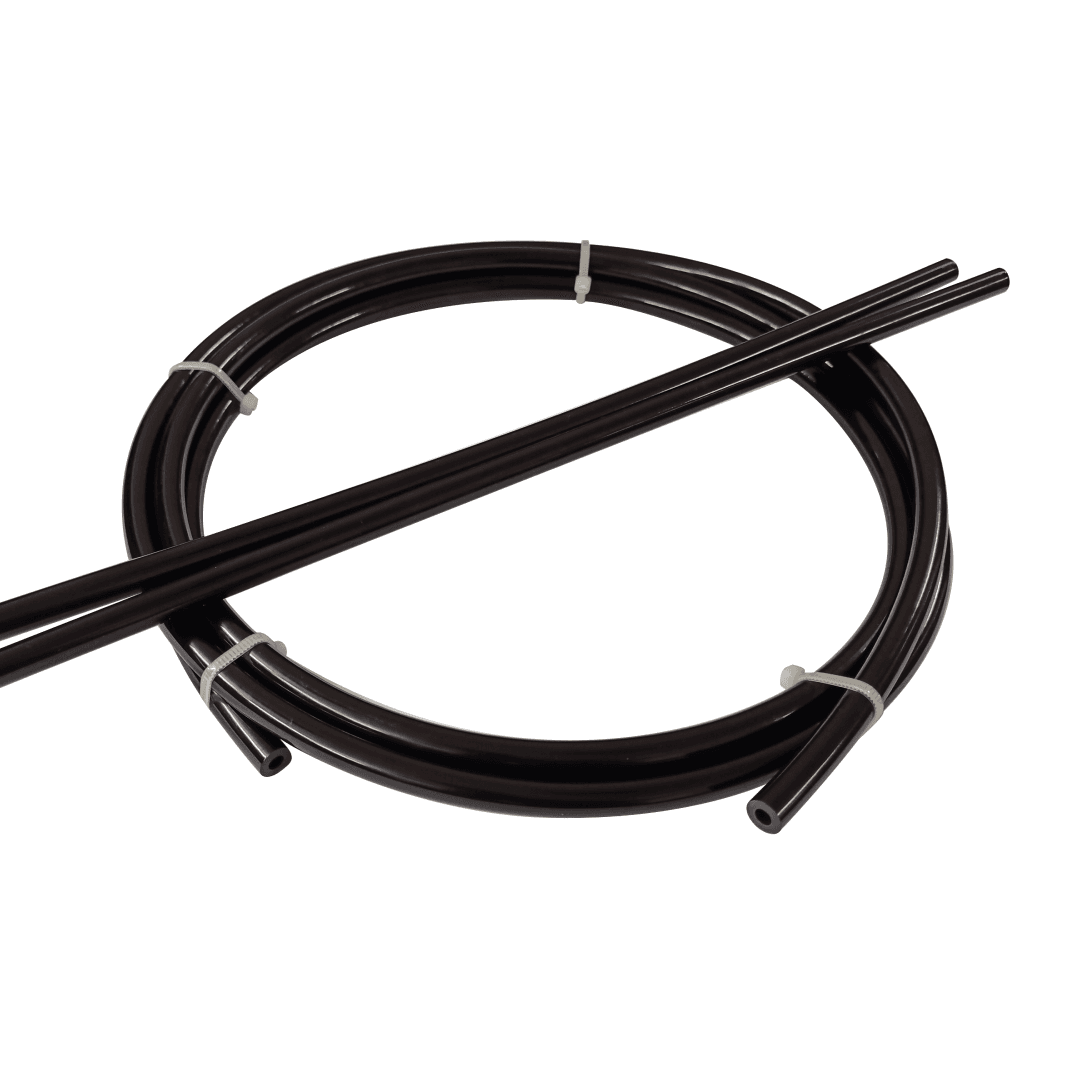

Wayhose Nylon Tubes possess a unique hardness which imparts more pressure rating as well as flexibility that prevents breaking or crushing. Nylon tubes are added with required modifiers to make them brittleness proof. Bright colors ranging from natural white, to red, yellow, blue, black are specially made as per demand.
Nylon Air Pneumatic Tubes
Code
Size (mm)
Working Pressure
Bursting Pressure
6PA0604
6 x 4
15
60
6PA0806
8 x 6
15
60
6PA1008
10 x 8
15
60
6PA1209
12 x 9
15
60
*Pressure Rating unit = Bar
Nylon Air Pneumatic Coils
Code
Size (mm)
Working Pressure
Bursting Pressure
CLPA0604
6 x 4
15
60
CLPA0806
8 x 6
15
60
CLPA1008
10 x 8
15
60
CLPA1209
12 x 9
15
60
*Pressure Rating unit = Bar
Wayhose is tested for
IS: 12585 | IS: 446 | IS: 444 | IS: 12492
Hoses made from inner layer of Polyurethane and outer layer of PVC or PU with required reinforcement of Synthetic Yarns. This wayhose category is specially made for high pressure with lesser wall thickness of hose. General or special application for air flow at high pressure, wayhose can be installed with no replacement requirement for many many working years. Bright colors are available under this premuim range of wayhose hybrid tubes.
Polyurethane PVC Hoses
Code
Size (mm)
Working Pressure
Bursting Pressure
HYD0611
6 x 11
20
80
HYD0812
8 x 12
20
80
HYD0813
8 x 13
25
100
HYD1014
10 x 14
20
80
HYD1015
10 x 15
25
100
HYD1216
12.5 x 16
20
80
HYD1217
12.5 x 17
25
100
*Pressure Rating unit = Bar
