Wayhose is tested for
IS: 12585 | IS: 446 | IS: 444 | IS: 12492
Hoses made from inner layer of Polyurethane and outer layer of PVC or PU with required reinforcement of Synthetic Yarns. This wayhose category is specially made for high pressure with lesser wall thickness of hose. General or special application for air flow at high pressure, wayhose can be installed with no replacement requirement for many many working years. Bright colors are available under this premuim range of wayhose hybrid tubes.
<
>
Wayhose is tested for
IS: 12585 | IS: 446 | IS: 444 | IS: 12492
Hoses made from inner layer of Polyurethane and outer layer of PVC or PU with required reinforcement of Synthetic Yarns. This wayhose category is specially made for high pressure with lesser wall thickness of hose. General or special application for air flow at high pressure, wayhose can be installed with no replacement requirement for many many working years. Bright colors are available under this premuim range of wayhose hybrid tubes.

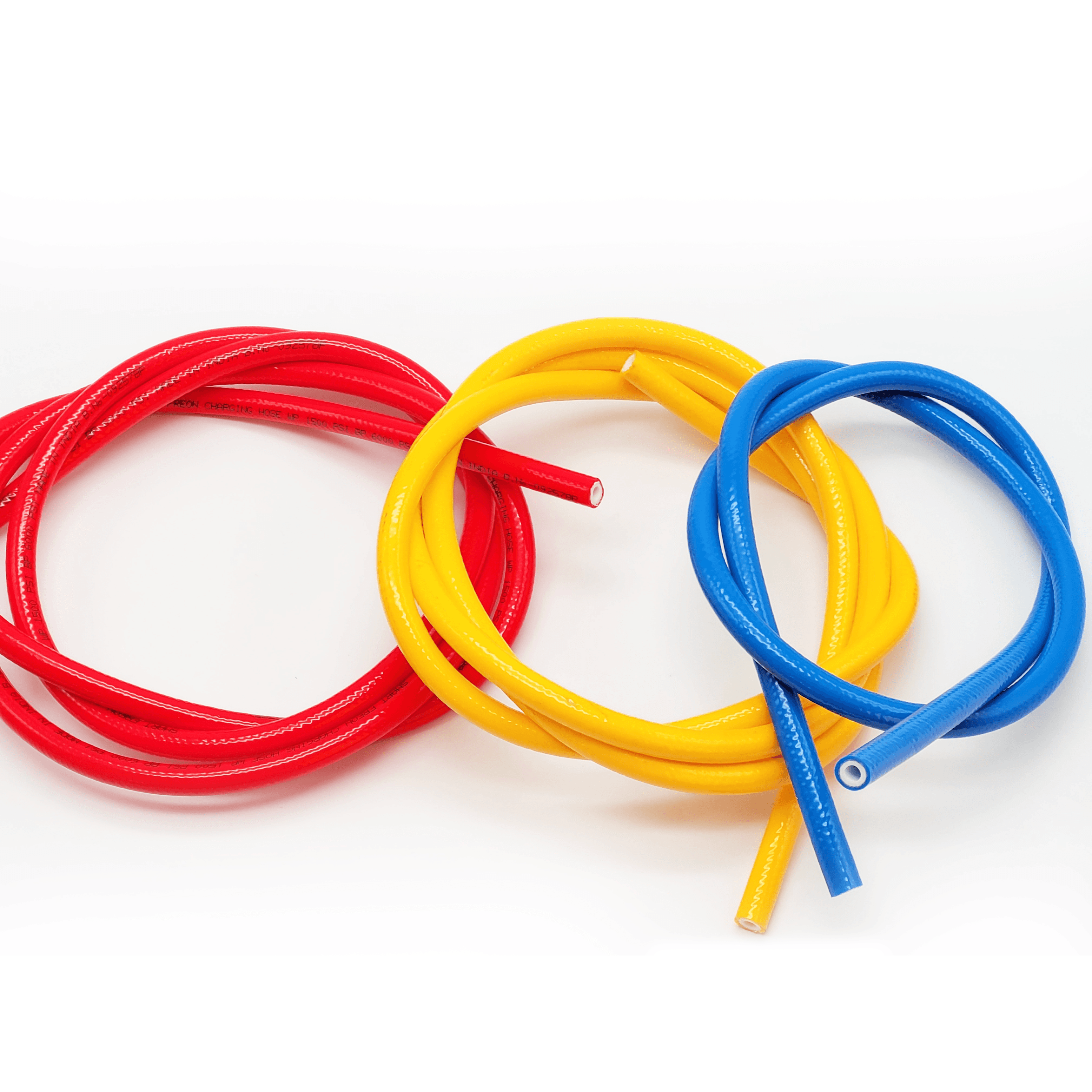

PU - PVC Braided Hose
Code
Size (mm)
Working Pressure
Bursting Pressure
HYD0409PV
9 x 4
25
100
HYD0611PV
11 x 6
25
100
HYD0813PV
13 x 8
25
100
HYD1015PV
15 x 10
25
100
HYD1218PV
18 x 12.5
25
100
*Pressure Rating unit = Bar
<
>
Wayhose is tested for
IS: 12585 | IS: 446 | IS: 444 | IS: 12492

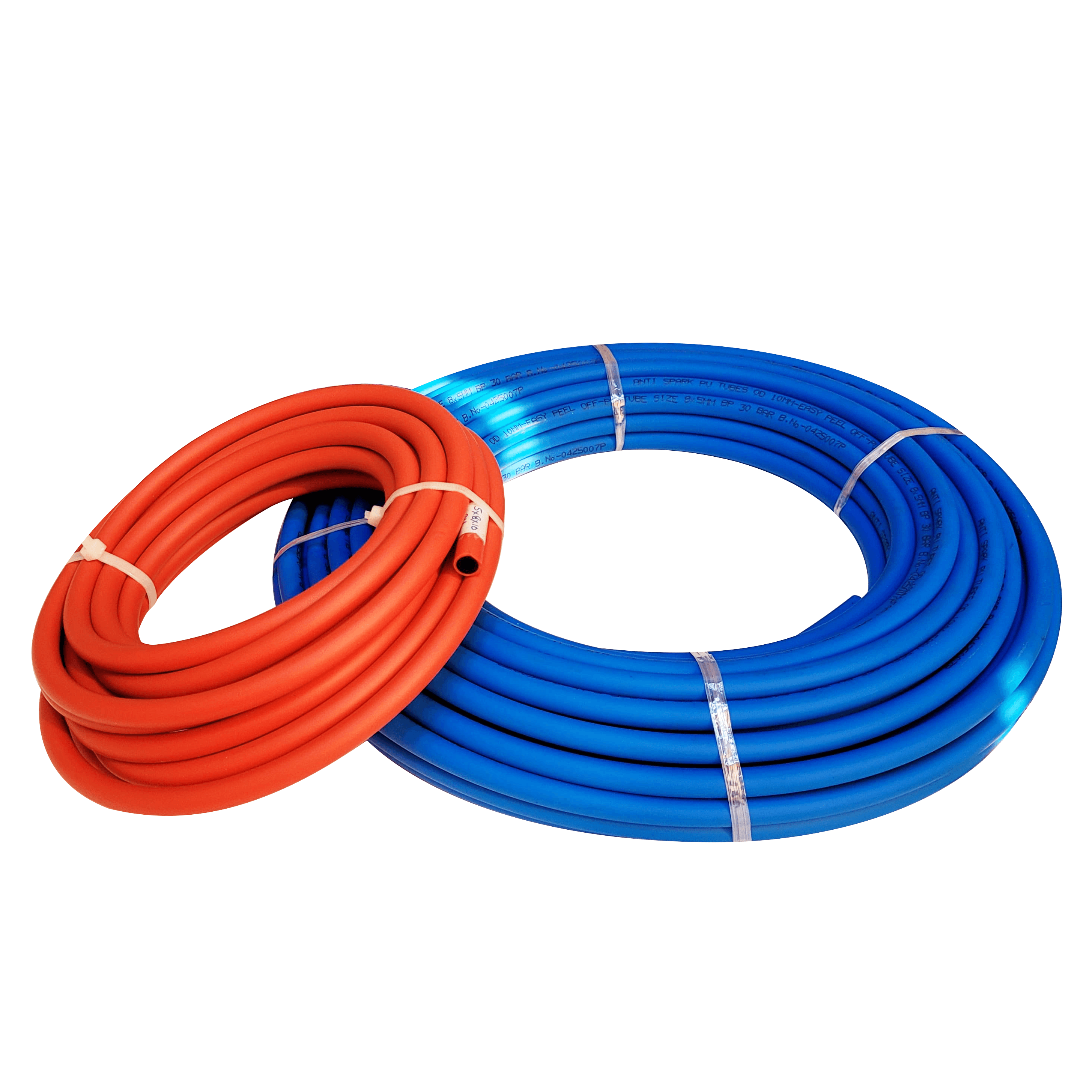

Wayhose TPR Rubber Hose for Air and Fuel is designed for superior performance in demanding industrial and automotive applications. Manufactured using premium-grade Thermoplastic Rubber (TPR), this hose offers excellent softness and flexibility across all weather conditions, ensuring easy installation and long-term reliability.
Engineered to handle high-pressure gas applications up to 15 bar working pressure, this hose delivers consistent airflow and fuel transfer without deformation or performance loss. It shows no swelling or degradation when exposed to fuels such as petrol, diesel, kerosene, and similar hydrocarbons, making it ideal for fuel lines, air compressors, pneumatic systems, and automotive usage
TPR Rubber
Code
Size (mm)
Working Pressure
Bursting Pressure
446A0410
4 x 9
15
60
446A0611
6 x 11
10
30
446A0612
6 x 12
15
50
446A0813
8 x 13
10
30
446A0814
8 x 14
15
50
446A1015
10 x 15
10
30
446A1016
10 x 16
15
50
446A1522
15 x 22
15
50
*Pressure Rating unit = Bar
<
>
Wayhose is tested for
IS: 12585 | IS: 446 | IS: 444 | IS: 12492
Polyamide (Nylon) tubes are coated/ covered with TPV Santoprene with strong adhesion between the two layers. These multilayer tubes are bend moulded in numerous forms to serve the fitment for flow of air or fuels. Santoprene used in V-0 FR grade (fire retardent grade), which has low temperature use range from −35 to 135°C. Polyamide used is PA 12.
Yarn Braided LPG Hose
Code
Size (mm)
Bursting Pressure
447A03
8 x 14.25
15
60
*Pressure Rating unit = Bar, *Temperature unit = Celsius
<
>
Wayhose is tested for
IS: 12585 | IS: 446 | IS: 444 | IS: 12492

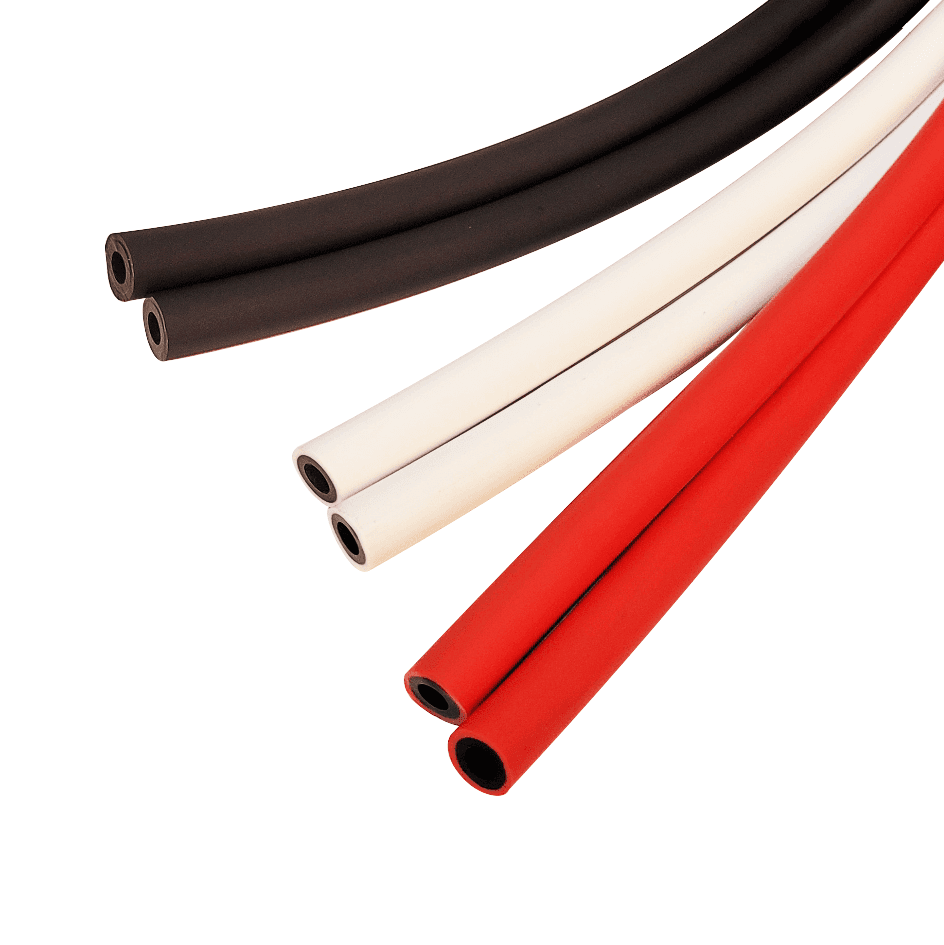

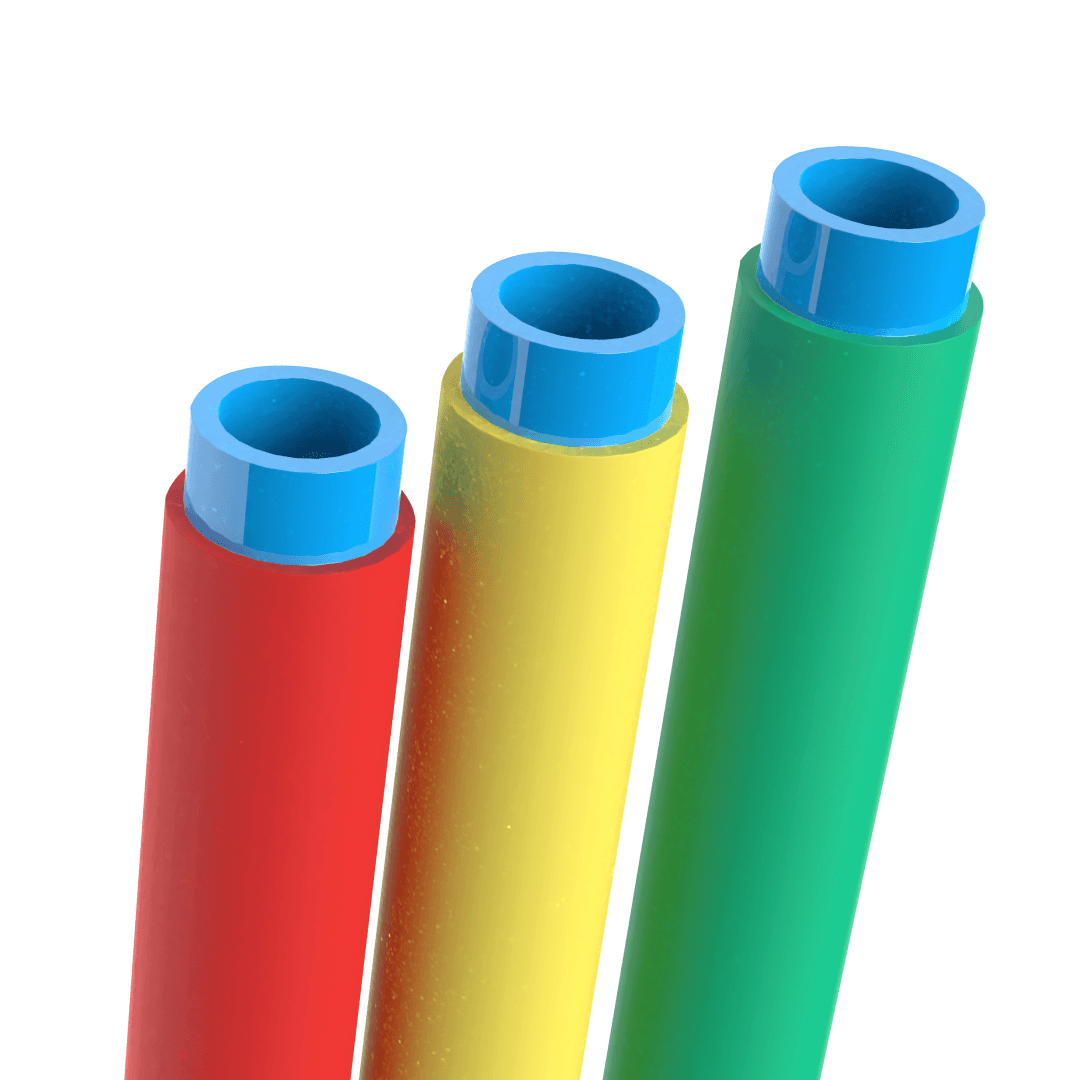

Anti Spark or Anti Spatter Tubes with inner layer of Polyurethene and outer layer of TPR or TPV are made by Wayhose. These tubes are used for Robotic Welding & Cutting operations which require a very light weight tube for gas flow, which should have good rebounding properties and fatigue resistance for repeated movement in same direction. At the same time the tube should have resistance to any fire spark due to spatters falling on the gas tube line. The rebounding properties are achieved by PU and the anti spark properties are given by TPV or TPR outer layer. The outer layer is easy to peal off for efficient end fitting on the PU tubes. Colors of the outer coating are long lasting and distinctive.
PU + Anti-Spark Coating
Code
Tube (mm)
(OD) Outer
Coating
Working Pressure
Bursting Pressure
6 x 4
8
10
30
8 x 5
10
10
30
10 x 6.5
12
10
30
12 x 8
14
10
30
*Pressure Rating unit = Bar
